PlantCruise by Experion®
Universal Process Cabinet, UPC

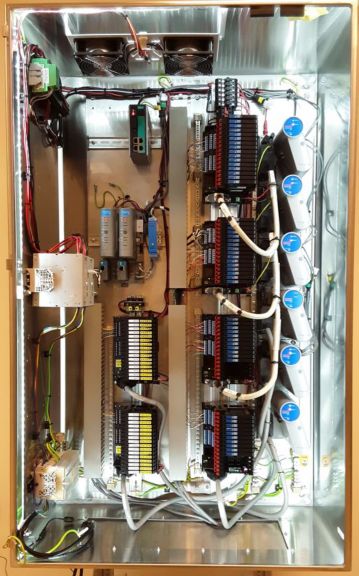

Universal Process Cabinet (UPC) provides a convenient mechanical enclosure to remotely locate the Universal IO in a process area.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Universal Process Cabinet, UPC is a modular cabinet that allows Universal IO to be installed in a remote location eliminating the long home run cables. It is an off‐the‐shelf standard solution with 96 Universal IO channels that reduces engineering, construction and commissioning costs and reduces the project schedule. Along with virtualization and cloud engineering, UPC brings in a paradigm shift challenging the traditional lengthy and costly project execution.
Specifications
Environmental Conditions
- Humidity
- 10 to 90%
- Demonstrated Accelerated Life
- >32 Years
- Barometric Pressure Altitude
- -300 to +2000 m
- Operating Temperature
- -40 deg C to +70 deg C
Electrical Specifications
- Overvoltage Category
- II
Standards & Certifications
- Ingress Protection
- IP66
- Pollution Degree
- 2
- Standards
- CSA
- IECEx C1D2/ATEX Z2
- UPC
Mechanical & Physical Properties
- Enclosure Size
- 1300 mm (51.2 in) H x 800 mm (31.5 in) W x 400 mm (15.8 in) D
Environmental Conditions
- Humidity
- 10 to 90%
- Demonstrated Accelerated Life
- >32 Years
- Barometric Pressure Altitude
- -300 to +2000 m
- Operating Temperature
- -40 deg C to +70 deg C
Electrical Specifications
- Overvoltage Category
- II
Standards & Certifications
- Ingress Protection
- IP66
- Pollution Degree
- 2
- Standards
- CSA
- IECEx C1D2/ATEX Z2
- UPC
Mechanical & Physical Properties
- Enclosure Size
- 1300 mm (51.2 in) H x 800 mm (31.5 in) W x 400 mm (15.8 in) D
- Humidity : 10 to 90%
- Demonstrated Accelerated Life : >32 Years
- Barometric Pressure Altitude : -300 to +2000 m
- Operating Temperature : -40 deg C to +70 deg C
- Overvoltage Category : II
- Ingress Protection : IP66
- Pollution Degree : 2
- Enclosure Size : 1300 mm (51.2 in) H x 800 mm (31.5 in) W x 400 mm (15.8 in) D
- Standards : CSA|IECEx C1D2/ATEX Z2|UPC
