Medium Pressure Regulators up to PN16 (ANSI 150)

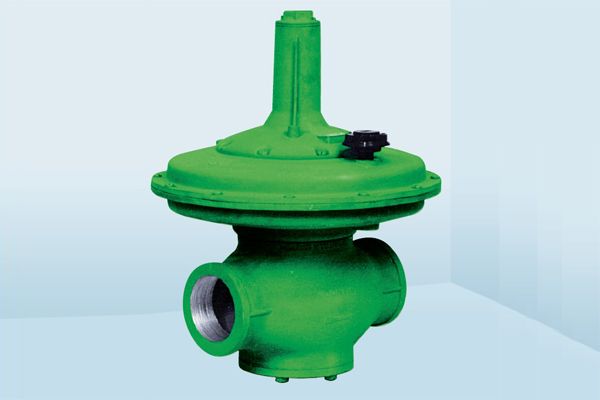

HON 226 H

HON 226 H is a spring-loaded, diaphragm-operated gas pressure regulator that controls fuel gas feeds in commercial and industrial facilities and in offtake stations. It is ideal for use at offtake stations in gas distribution

Overview
Features and Benefits:
  • High-capacity compact body, high flow rate value
  • Internal measuring impulse connection
  • (external impulse sensing available upon request)
  • Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases on enquiry
  • CE registration according to GAD
  • Max. inlet pressure pu max: up to 0.35 bar
  • Outlet pressure range Wd: 0.07 bar to 0.15 bar
  • Temperature range: -20 to 60 °C
  • Connection: Flanges DN 50, DN 65, DN 80
All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device fulfil the ATEX requirements.
