Series 200 Small Pressure Regulators (Pressure Reducer)

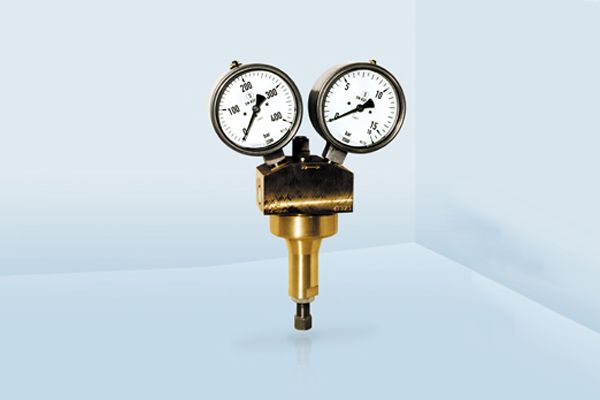

HON 213 (D 36 Hb)

HON 213 direct-acting pressure reducer features an SEP-compliant design in accordance with the Pressure Equipment Directive (PED). The small gas pressure regulator is ideal for industrial and process applications involving high-pressure differences.​

Overview
Features and Benefits:
  • Type with diaphragm measuring unit
  • Integrated safety relief valve
  • Optionally with incorporated non-return valve
  • Bubble-tight sealing at zero flow
  • Easy operation and monitoring
  • Suitable for non-aggressive gases, other gases on enquiry
  • Max. admissible pressure (PS): 150 bar
  • Max. inlet pressure (pu max): up to 150 bar
  • Outlet pressure range (Wd): 0.2 bar up to 50 bar
  • Class of lock-up pressure zone: SZ 2.5
  • Valve seat diameter: 3 mm
  • Flow rate coefficient KG: 6 m³/(h ⋅ bar) for natural gas (ρb = 0.83 kg/m³, t = 15 °C)
  • Connection: -⅜ " (female) with measuring units M, H, S
All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device fulfill ATEX requirements.
