Discontinued: Burner Management Systems

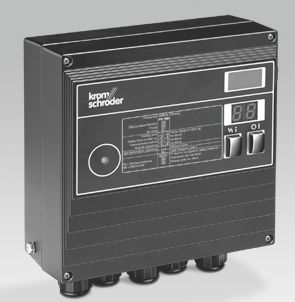

Kromschroeder BCU 400 burner control unit
Housing for on-site mounting, for controlling, igniting and monitoring impulse-controlled, modulating or stage-controlled gas burners. For continuous operation with ionization control or UV control using UV sensor UVD.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Automatic burner control unit, ignition transformer, Manual/Automatic mode and display of operating and fault statuses in a metal housing, for monitoring and control of gas burners, for continuous operation with ionization control, for intermittent operation with UV control (with UV sensors of type UVS) or as a variant for continuous operation with UV control (with UV sensor UVD 1), single-electrode operation possible, setting of various operating modes via optical interface using separate software, complies with Machinery Directive 2006/42/EC.
Features & Benefits:
Features & Benefits:
- BCU 440 for ionization-controlled, directly ignited burners up to 350 kW
- BCU 460 for directly ignited burners of unlimited capacity, with air valve control (optional)
- BCU 465 with extended air control
- BCU 480 for pilot and main burners of unlimited capacity, with air valve control
- Safety time on start-up: 3, 5 or 10 s
- Safety time during operation: 1 or 2 s
- Mains voltage: 230 V AC or 115 V AC, for grounded or ungrounded mains
- BCU..B1: burner control units for PROFIBUS DP
Name
Description
File Size
Date
Size
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
74960625
PCO 200 including BCSoft CD-ROM
74960625
PCO 200 including BCSoft CD-ROM
KS88680262
BCU460W3P2C0D0000K1E0-/LM400WF0O0E1-
KS88680262
BCU460W3P2C0D0000K1E0-/LM400WF0O0E1-
KS88680407
BCU465W2P6C0D2010K1E1-/LM400WF3O0E1-
KS88680407
BCU465W2P6C0D2010K1E1-/LM400WF3O0E1-
