Discontinued: Burner Management Systems

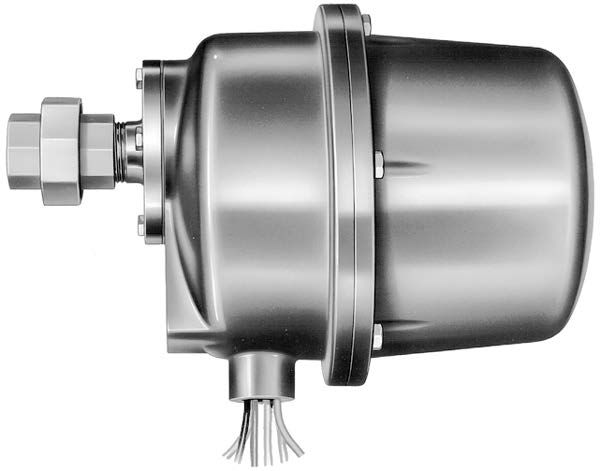

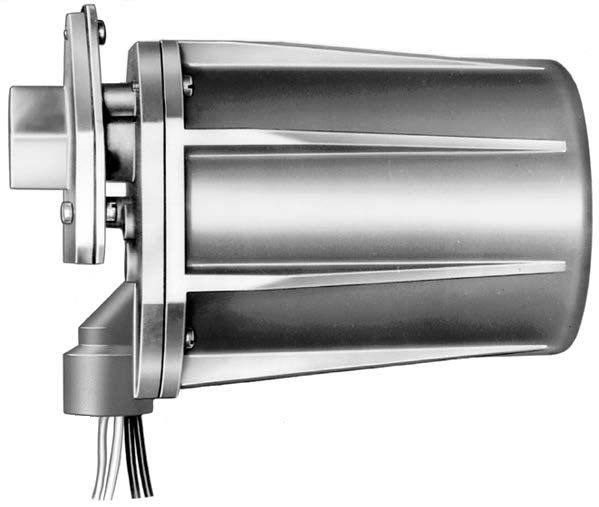

Ultraviolet Flame Detector C7961E,F
DISCONTINUED - Dynamic Self-Check Ultraviolet Solid State Flame Detector
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The C7961E, F series are Solid State electronic UV flame sensor to detect ultraviolet radiation emitted by the combustion of most carbon-containing fuels such as natural gas, LP gases, and oil. Used with Honeywell burner controls to provide flame supervision in continuous operation for industrial burner applications.
Replacement Product Information:
The C7961E/F series Solid State UV flame detectors use the same enclosures as the C7061A/F series Powertube UV flame detectors, so no mechanical modifications are needed.
For use with the 7800 series burner controllers:
C7061A/F needs one of the R7861 series flame amplifiers (permanent operation)
For use with the SLATE burner management system:
C7061A/F need the R8001S1051 flame amplifier module (permanent operation)
Approvals:
Replacement Product Information:
The C7961E/F series Solid State UV flame detectors use the same enclosures as the C7061A/F series Powertube UV flame detectors, so no mechanical modifications are needed.
For use with the 7800 series burner controllers:
C7061A/F needs one of the R7861 series flame amplifiers (permanent operation)
For use with the SLATE burner management system:
C7061A/F need the R8001S1051 flame amplifier module (permanent operation)
Approvals:
- C7061A, F are CE approved according to EN 298 only when used with the correct Honeywell flame amplifiers and/or burner controls
- C7061A, F-series models are approved for use in continuous operation, by using dynamic self-check
- C7061F1 models are ATEX approved for use in European explosion hazardous locations; II G Ex d IIC T6, zone 1&2
- C7061F2 models are UL listed for use in North American explosion hazardous locations; Class 1, groups C and D; and Class 2, groups E, F, and G
