direct fired furnace burners
Menox / BIC..M
Burner with cast steel housing, with ceramic tube connection.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

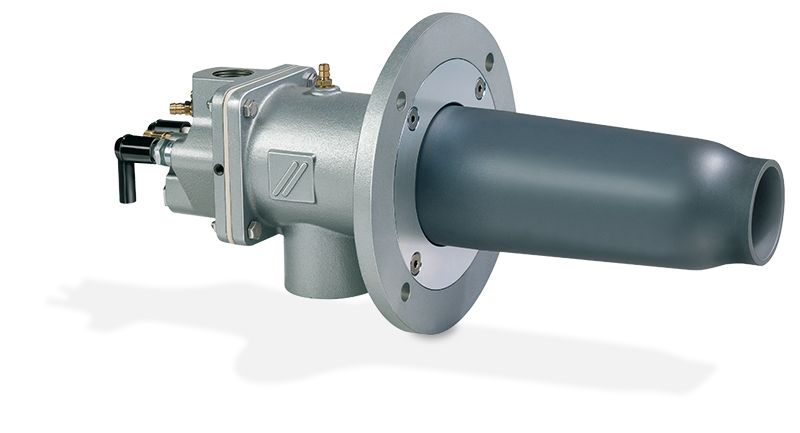

Low NOx burner with cast steel housing and ceramic tube connection.
Features & Benefits:
Features & Benefits:
- Burner size: 50 to 140
- Capacity: 10 to 360 kW
- Uses: for cold air and hot air up to 450°C
- Menox mode for low NOx operation
- Fuel Types: natural gas as well as coke oven gas, town gas or liquefied gases upon consultation
- Burner Lenghts: 300 to 1200 mm
- Connections: threaded for both fuel and air
- Housing with internal insulation available
Specifications
Standards & Certifications
- Approvals
- Machinery Directive 2006/42/EC Declaration of Incorporation confirmed, Eurasian Customs Union (Meets technical specifications), European Patent (EP 2 442 026 B1 for menox low NOₓ solution), REACH Regulation (Applies to BICW..M (contains RCF/ASW insulation)), EN 746-2 (Compliant for industrial thermoprocessing equipment)
Burner/Flame‑Related Lengths
- Visible Flame Length
- 45 to 130 cm (17.7 to 51.2 in) depending on size
Applications & Compatibility
- Typical Applications
- Industrial furnaces in iron and steel, precious, non‑ferrous and light‑metal industries; heat‑treatment furnaces, roller hearth furnaces
Performance, Flow & Capacity
- Turndown Control
- On/Off staged control only
Processing & Performance Metrics
- Noise Level
- ~95 dBA open air; ~75 dBA in furnace; lower in menox mode
- Capacity Range
- 35 to 360 kW (132 to 1360 kBTU/h) in Flame mode; 40 to 420 kW (1588 kBTU/h) in Menox Mode
Combustion Air, Blower & Emissions Specifications
- NOx Reduction Method
- Flameless combustion with enlarged reaction zone and reduced peak temperatures
Overview
- Models
- BIC..M, BICW..M
- Burner Type
- Low‑NOx gas burner with menox® flameless combustion capability
Operating/Process Temperature Ranges
- Menox Mode Temperature
- Menox low‑NOx mode possible from furnace temperature ≥ 850 deg C (1562 deg F)
Maximum/Minimum Temperature Limits
- Maximum Furnace Temperature
- 1250 deg C (2282 deg F)
Air/Exhaust/Flue Gas Temperatures
- Maximum Air Preheat Temperature
- 450 deg C (842 deg F) in menox mode
- 500 deg C (932 deg F)
Electrical Specifications
- Maintenance Interval
- Twice per year (more frequent if media is contaminated)
Ignition, Flame & Supervision Specifications
- Ignition Type
- Direct Spark Ignition
- Flame Velocity
- Up to 186 m/s (610 ft/s)
- Flame Supervision
- Flame rod standard; UV sensor optional
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas (standard), Propane/Butane (on request)
Combustion Design & Characteristics
- Combustion Type
- Nozzle-mixing; flameless in menox mode
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Nozzle‑mixing burner; gas and air mix only at burner head
Material Specifications
- Ceramic Tube Material
- SiC (Silicon-infiltrated)
- Body Material
- BIC..M: Grey Cast Iron
- BICW..M: Steel body with internal ceramic‑fibre insulation
Standards & Certifications
- Approvals
- Machinery Directive 2006/42/EC Declaration of Incorporation confirmed, Eurasian Customs Union (Meets technical specifications), European Patent (EP 2 442 026 B1 for menox low NOₓ solution), REACH Regulation (Applies to BICW..M (contains RCF/ASW insulation)), EN 746-2 (Compliant for industrial thermoprocessing equipment)
Burner/Flame‑Related Lengths
- Visible Flame Length
- 45 to 130 cm (17.7 to 51.2 in) depending on size
Applications & Compatibility
- Typical Applications
- Industrial furnaces in iron and steel, precious, non‑ferrous and light‑metal industries; heat‑treatment furnaces, roller hearth furnaces
Performance, Flow & Capacity
- Turndown Control
- On/Off staged control only
Processing & Performance Metrics
- Noise Level
- ~95 dBA open air; ~75 dBA in furnace; lower in menox mode
- Capacity Range
- 35 to 360 kW (132 to 1360 kBTU/h) in Flame mode; 40 to 420 kW (1588 kBTU/h) in Menox Mode
Combustion Air, Blower & Emissions Specifications
- NOx Reduction Method
- Flameless combustion with enlarged reaction zone and reduced peak temperatures
Overview
- Models
- BIC..M, BICW..M
- Burner Type
- Low‑NOx gas burner with menox® flameless combustion capability
Operating/Process Temperature Ranges
- Menox Mode Temperature
- Menox low‑NOx mode possible from furnace temperature ≥ 850 deg C (1562 deg F)
Maximum/Minimum Temperature Limits
- Maximum Furnace Temperature
- 1250 deg C (2282 deg F)
Air/Exhaust/Flue Gas Temperatures
- Maximum Air Preheat Temperature
- 450 deg C (842 deg F) in menox mode
- 500 deg C (932 deg F)
Electrical Specifications
- Maintenance Interval
- Twice per year (more frequent if media is contaminated)
Ignition, Flame & Supervision Specifications
- Ignition Type
- Direct Spark Ignition
- Flame Velocity
- Up to 186 m/s (610 ft/s)
- Flame Supervision
- Flame rod standard; UV sensor optional
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas (standard), Propane/Butane (on request)
Combustion Design & Characteristics
- Combustion Type
- Nozzle-mixing; flameless in menox mode
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Nozzle‑mixing burner; gas and air mix only at burner head
Material Specifications
- Ceramic Tube Material
- SiC (Silicon-infiltrated)
- Body Material
- BIC..M: Grey Cast Iron
- BICW..M: Steel body with internal ceramic‑fibre insulation
- Approvals : Machinery Directive 2006/42/EC Declaration of Incorporation confirmed, Eurasian Customs Union (Meets technical specifications), European Patent (EP 2 442 026 B1 for menox low NOₓ solution), REACH Regulation (Applies to BICW..M (contains RCF/ASW insulation)), EN 746-2 (Compliant for industrial thermoprocessing equipment)
- Visible Flame Length : 45 to 130 cm (17.7 to 51.2 in) depending on size
- Typical Applications : Industrial furnaces in iron and steel, precious, non‑ferrous and light‑metal industries; heat‑treatment furnaces, roller hearth furnaces
- Turndown Control : On/Off staged control only
- Noise Level : ~95 dBA open air; ~75 dBA in furnace; lower in menox mode
- NOx Reduction Method : Flameless combustion with enlarged reaction zone and reduced peak temperatures
- Models : BIC..M, BICW..M
- Menox Mode Temperature : Menox low‑NOx mode possible from furnace temperature ≥ 850 deg C (1562 deg F)
- Maximum Furnace Temperature : 1250 deg C (2282 deg F)
- Maximum Air Preheat Temperature : 450 deg C (842 deg F) in menox mode|500 deg C (932 deg F)
- Maintenance Interval : Twice per year (more frequent if media is contaminated)
- Ignition Type : Direct Spark Ignition
- Fuel Type : Natural Gas (standard), Propane/Butane (on request)
- Flame Velocity : Up to 186 m/s (610 ft/s)
- Flame Supervision : Flame rod standard; UV sensor optional
- Combustion Type : Nozzle-mixing; flameless in menox mode
- Combustion Principle : Nozzle‑mixing burner; gas and air mix only at burner head
- Ceramic Tube Material : SiC (Silicon-infiltrated)
- Capacity Range : 35 to 360 kW (132 to 1360 kBTU/h) in Flame mode; 40 to 420 kW (1588 kBTU/h) in Menox Mode
- Burner Type : Low‑NOx gas burner with menox® flameless combustion capability
- Body Material : BIC..M: Grey Cast Iron|BICW..M: Steel body with internal ceramic‑fibre insulation
