Honeywell Variable Frequency Drive

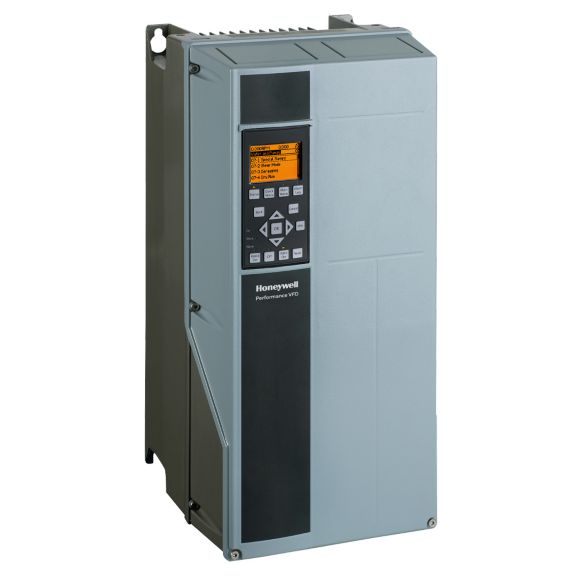

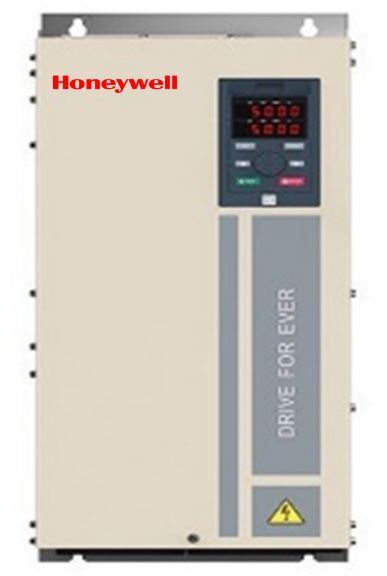

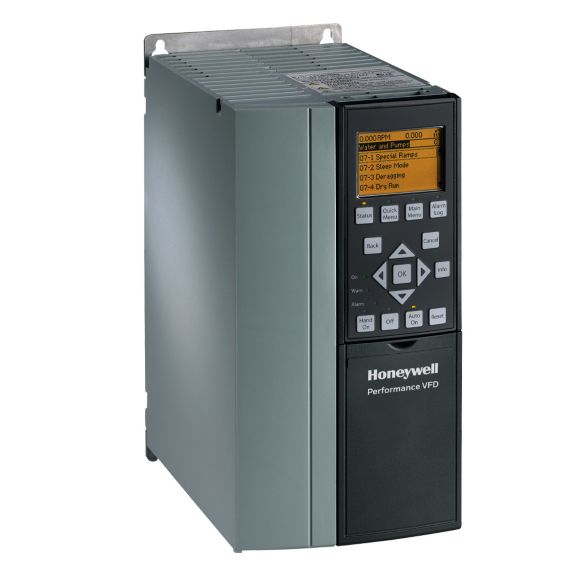

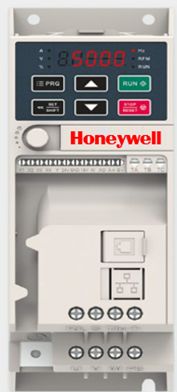

Honeywell Variable Frequency Drive (VFD) is a general-purpose solution that meets automation and energy efficiency requirements across industrial segments and process applications, from small pumps to large compressors.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

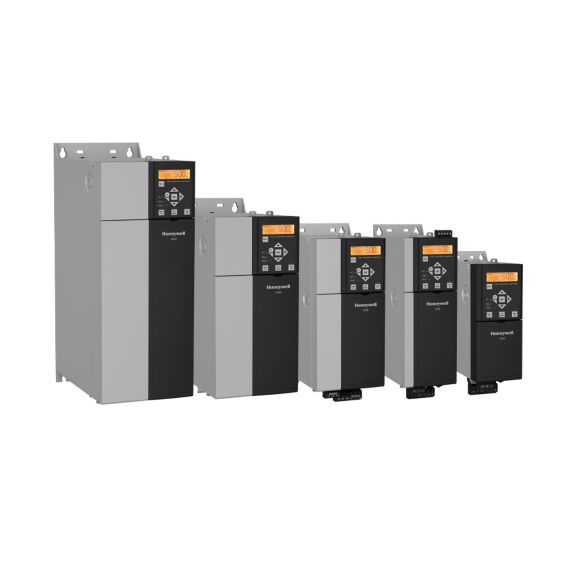

What ls It?Honeywell VFDs are designed to control the speed, torque and position of three-phase AC induction and permanent magnet motors by varying their input frequency and voltage. They integrate seamlessly with Honeywell's Experion® and ControlEdge® platforms, delivering advanced motor control and automation capabilities.Honeywell VFD Product LinesDEV100 A compact general-purpose open loop drive designed for ease of setup, energy savings and flexible integration. Ideal for machine builders in sectors such as the food and beverage, material handling and processing sectors. This drive excels in controlling conveyor systems, mixers, pumps, fans, compressors and packaging systems.Ratings:A high-performance drive designed for both open-loop and closed-loop motor control applications, offering modularity and scalability.. It is designed to provide advanced motor control for industrial machines and production lines, helping maximize energy savings and operational flexibility.Ratings:How Does It Work?Honeywell Variable Frequency Drives offer reliable motor control and power solutions across diverse industrial applications and environments. These drives are designed to help optimize machine performance, reduce energy consumption and ensure smooth operation even in complex and harsh environments. Integrated with Experion® and ControlEdge® platforms, Honeywell VFDs are designed to offer faster commissioning and enhanced diagnostics, reducing overall maintenance time.What Problems Does It Solve?Honeywell VFDs can help address the growing demand for energy efficiency and enhanced asset performance. They are designed to deliver energy savings of 30-40% compared to traditional drives, minimizing unplanned downtime and helping boost operational productivity through advanced diagnostics and early warnings of operational disturbances.
- 480V, 3ph, 1.1kW to 22kW (1.5 to 30HP)
- Open loop ac motor control (induction and PM motors)
- IP20 chassis
- Compact design – Saves panel space
- Easy setup through flexible user interfaces – Reduces startup time
- Designed to 45¬C ambient standard. (55¬C with derating) – No extra cooling requirements
- Integrated harmonic mitigation (dc choke), brake chopper, RFI filter - Cost and space savings
- Integrated Power Factor Correction (PFC) - significantly reduces harmonic distortion
- Integrated PID controller- pressure, flow, level control without external controller
- Integrated position controller – Cost and space savings
- Integrated fieldbus (Ethernet/IP, PROFINET, Profibus DP, EtherCAT)
- Coated PCBs – protects against environmental and corrosion damage
- Dual channel STO (Safe Torque Off), SIL 2 – Prevents unexpected motor rotation without adding safety contactors
- UL/cUL
- CE
- 480V, 3 ph, 1.1kW to 75 kW (1.5HP to 100HP)
- Open or Closed Loop motor control
- IP20, IP55 chassis options
- 45°C ambient standard. Up to 55°C with derating
- Hot-pluggable, graphical, local Control Panel (LCP) as standard – Ease of setup, ease of use
- PC based configuration tool – Enhanced user experience for VFD setup and troubleshooting
- Easy setup Wizards - Preconfigured menu for common applications such as fans, pumps and PID.
- Coated circuit boards (3C2) - protects against environmental and corrosion damage
- Built-in dc chokes – Harmonics reduction
- Safe Torque Off (STO), SIL2 – Prevents unexpected motor rotation without adding safety contactors
- SS1, SLS, SMS, SSM, Safe Jog, via optional safety module – Advanced functional safety option for personnel and machine protection
- Ethernet/IP, PROFINET, EtherCAT Connectivity options – Offer connectivity to DCS/PLC
- Dynamic motion control, synchronization (electronic gear shaft), positioning and electronic CAM control through an option card
- UL/cUL
- CE
- MVS1OO
- MVIS7
- MVH100
- HAC10T
- HAC310
