CD Actuator Systems

AutoSlice

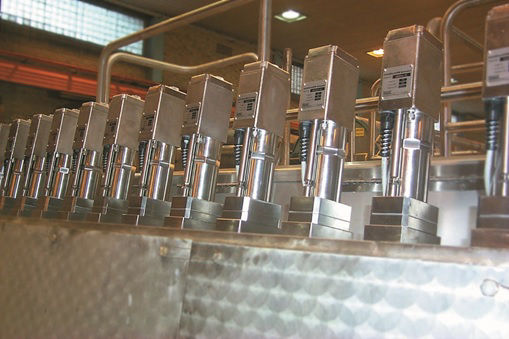

Honeywell’s AutoSlice™ system provides superior cross direction (CD) basis weight control through headbox slice lip automation. The narrowly spaced, intelligent actuators with their fast response and precise movement provide the tightest CD control.

Overview
Features
Each  AutoSlice system is custom engineered to suit customer requirements considering total paper machine control strategies. An entire headbox optimization system can be designed, including Honeywell actuators, mounting assemblies, spindle rods, clamping assemblies and Superflex™ slice lip.

Benefits
  • Reduce CD basis weight variation
  • Faster recovery time
  • Optimized tuning for all grade groups
  • Fully sealed actuator for reliable operation in the harshest headbox environment
  • Compact design for narrow zone spacing
  • Electronic  force limiting and software bend limits ensure precise, worry-free movement
  • LVDT provides true output position feedback for highest resolution and superior stability
Specifications

Mechanical & Physical Properties

  • Stroke Length
    • 0.051 in
    • 13 mm
  • CD Width
    • 2.32, 1.76 in
    • 59, 44.8 mm
  • Actuator Length
    • 45 mm Minimum
    • 60 mm Minimum

I/O Capabilities

  • Setpoint Resolution
    • 0.0008 mil
    • 0.2 µm
  • Feedback Resolution
    • 0.0008 mil
    • 0.2 µm

Dimensions & Weight

  • Height
    • 11.54, 11 in
    • 293, 281 mm

Material Specifications

  • Actuator Housing Material
    • T316 Stainless Steel/Zytel® DuPont

Functional & Control Features

  • Rate of Response
    • 5 to 60 µm/sec (0.2 to 2.4 mil/sec)

Electrical Specifications

  • Motor
    • 24 VDC

Overview

  • Models
    • 9141-10
    • 9141-11
    • 9142-10
    • 9142-11
    • 9142-20
    • 9142-21

Mechanical & Physical Properties

  • Stroke Length
    • 0.051 in
    • 13 mm
  • CD Width
    • 2.32, 1.76 in
    • 59, 44.8 mm
  • Actuator Length
    • 45 mm Minimum
    • 60 mm Minimum

I/O Capabilities

  • Setpoint Resolution
    • 0.0008 mil
    • 0.2 µm
  • Feedback Resolution
    • 0.0008 mil
    • 0.2 µm

Dimensions & Weight

  • Height
    • 11.54, 11 in
    • 293, 281 mm

Material Specifications

  • Actuator Housing Material
    • T316 Stainless Steel/Zytel® DuPont

Functional & Control Features

  • Rate of Response
    • 5 to 60 µm/sec (0.2 to 2.4 mil/sec)

Electrical Specifications

  • Motor
    • 24 VDC

Overview

  • Models
    • 9141-10
    • 9141-11
    • 9142-10
    • 9142-11
    • 9142-20
    • 9142-21
  • Stroke Length : 0.051 in|13 mm
  • Setpoint Resolution : 0.0008 mil|0.2 µm
  • Height : 11.54, 11 in|293, 281 mm
  • Feedback Resolution : 0.0008 mil|0.2 µm
  • CD Width : 2.32, 1.76 in|59, 44.8 mm
  • Actuator Housing Material : T316 Stainless Steel/Zytel® DuPont
  • Rate of Response : 5 to 60 µm/sec (0.2 to 2.4 mil/sec)
  • Motor : 24 VDC
  • Models : 9141-10|9141-11|9142-10|9142-11|9142-20|9142-21
  • Actuator Length : 45 mm Minimum|60 mm Minimum
