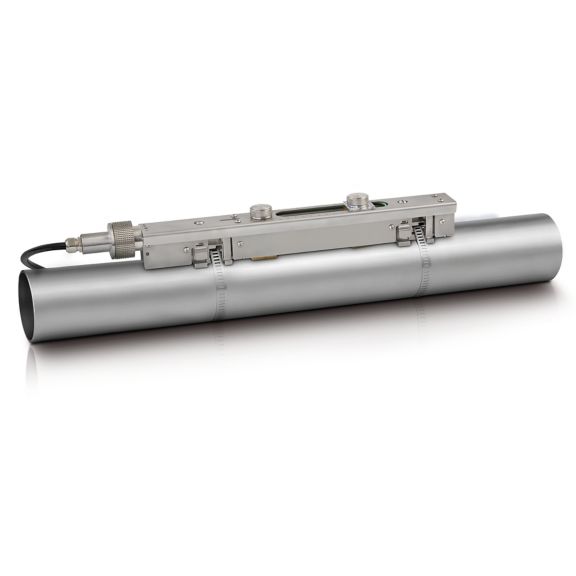

VersaFlow Clamp-on Ultrasonic Flow Meters
A market leading process measurement device, Honeywell’s VersaFlow Clamp-On Ultrasonic flow meters are designed for applications where a customer is unwilling or unable to cut into the process measurement line to install an in-line meter.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
VersaFlow Clamp-On Ultrasonic flow meters are designed for applications where a customer is unwilling or unable to cut into the process measurement line to install an in-line meter.
Available in configurations for pipe line sizes from DN15 to DN4000 (1/2” to 160”), the clamp-on design offers a cost-effective means of measuring liquid flow through a pipe. With designs that can withstand up to 200˚C (392˚F), this technology is ideal for liquids with limited solids or gas content.
Because it mounts on the outside of the pipe, there is no need to worry about material compatibility with the process being measured or the pressure in the pipeline
Available in configurations for pipe line sizes from DN15 to DN4000 (1/2” to 160”), the clamp-on design offers a cost-effective means of measuring liquid flow through a pipe. With designs that can withstand up to 200˚C (392˚F), this technology is ideal for liquids with limited solids or gas content.
Because it mounts on the outside of the pipe, there is no need to worry about material compatibility with the process being measured or the pressure in the pipeline
Specifications
Mechanical & Physical Properties
- Wall Thickness
- ≤ 200 mm (7.87 in)
Environmental Conditions
- Sensor Type
- Large: DN200 to DN4000 (8 to 160 in)
- Medium: DN50 to DN400 (2 to 16 in)
- Small: DN15 to DN100 (1/2 to 4 in)
- X-mode: DN200 to DN1250 (8 to 50 in)
- Process Temperature Range
- -40 to 120 deg C (-40 to 284 deg F) Standard
- -40 to 200 deg C (-40 to 392 deg F) XT Version (option)
Network & Connectivity Infrastructure
- Sensor Cable Length
- 6 m (18 ft), 10 m (30 ft) Fixed
- Up to 25 m (75 ft) with Extension Cable and Splitter Box
I/O Capabilities
- Recommended Mounting
- Inlet run: ~10DN straight length
- Outlet run: ~5DN straight length
- Measurement Configurations
- Single Path/Single Pipe Or Dual Path/Dual Pipe (standard)
Standards & Certifications
- Protection Category
- Converter: IP66/67 (NEMA6)
- Flow Sensor: IP66/67 (NEMA6), IP68 (optional)
- Approvals
- Ex zone 1 (ATEX and IECEx, option)
- QPS (US/Canada) Class I DIV 1 (option)
Electrical Specifications
- Power Supply
- 100 to 230 VAC (-15/+10%)
- 22 VA
- 24 VAC/DC (Option)
- 50/60 Hz (Standard)
- Power Consumption: DC 12 W
Communication & Protocols
- Pipe Materials Supported
- Internal/external coatings/liners fully bonded to pipe wall
- Metal, plastic, ceramic, asbestos cement
- Communication
- Control Input (Standard)
- Current
- HART® Communication
- Modbus RS485 (Option)
- Pulse and Status Output (Standard)
Measurement & Sensor Related (Measurement Capabilities)
- Measured Values
- Actual Volume Flow Rate
- Flow Direction
- Flow Speed
- Mass Flow
- Quality Of Signal
- Signal-To-Noise Ratio
- Speed Of Sound
- Totalized Volume
Processing & Performance Metrics
- Maximum Liner Thickness
- < 20 mm (0.79 in)
Software & Interface
- Display
- Graphic LCD, Backlit
- Languages: English, French, German
Technical Specifications
- Cable Connections
- 1/2 in NPT (option)
- M20 x 1.5 (standard)
- PF 1/2 in (option)
Applications & Compatibility
- Applications
- Acids/Corrosives
- Chemical Addition
- Cooling Water
- Heat/Energy Measurement
- Hydrocarbons
- Leak Detection
- Potable/Deionized/Demin Water
- Process Control
- Purified Water
- Sanitary Flow
Others
- Ambient Temperature Range
- -40 to 140 deg F
- -40 to 60 deg C
- Storage Temperature Range
- -50 to 70 deg C
- -58 to 158 deg F
Mechanical & Physical Properties
- Wall Thickness
- ≤ 200 mm (7.87 in)
Environmental Conditions
- Sensor Type
- Large: DN200 to DN4000 (8 to 160 in)
- Medium: DN50 to DN400 (2 to 16 in)
- Small: DN15 to DN100 (1/2 to 4 in)
- X-mode: DN200 to DN1250 (8 to 50 in)
- Process Temperature Range
- -40 to 120 deg C (-40 to 284 deg F) Standard
- -40 to 200 deg C (-40 to 392 deg F) XT Version (option)
Network & Connectivity Infrastructure
- Sensor Cable Length
- 6 m (18 ft), 10 m (30 ft) Fixed
- Up to 25 m (75 ft) with Extension Cable and Splitter Box
I/O Capabilities
- Recommended Mounting
- Inlet run: ~10DN straight length
- Outlet run: ~5DN straight length
- Measurement Configurations
- Single Path/Single Pipe Or Dual Path/Dual Pipe (standard)
Standards & Certifications
- Protection Category
- Converter: IP66/67 (NEMA6)
- Flow Sensor: IP66/67 (NEMA6), IP68 (optional)
- Approvals
- Ex zone 1 (ATEX and IECEx, option)
- QPS (US/Canada) Class I DIV 1 (option)
Electrical Specifications
- Power Supply
- 100 to 230 VAC (-15/+10%)
- 22 VA
- 24 VAC/DC (Option)
- 50/60 Hz (Standard)
- Power Consumption: DC 12 W
Communication & Protocols
- Pipe Materials Supported
- Internal/external coatings/liners fully bonded to pipe wall
- Metal, plastic, ceramic, asbestos cement
- Communication
- Control Input (Standard)
- Current
- HART® Communication
- Modbus RS485 (Option)
- Pulse and Status Output (Standard)
Measurement & Sensor Related (Measurement Capabilities)
- Measured Values
- Actual Volume Flow Rate
- Flow Direction
- Flow Speed
- Mass Flow
- Quality Of Signal
- Signal-To-Noise Ratio
- Speed Of Sound
- Totalized Volume
Processing & Performance Metrics
- Maximum Liner Thickness
- < 20 mm (0.79 in)
Software & Interface
- Display
- Graphic LCD, Backlit
- Languages: English, French, German
Technical Specifications
- Cable Connections
- 1/2 in NPT (option)
- M20 x 1.5 (standard)
- PF 1/2 in (option)
Applications & Compatibility
- Applications
- Acids/Corrosives
- Chemical Addition
- Cooling Water
- Heat/Energy Measurement
- Hydrocarbons
- Leak Detection
- Potable/Deionized/Demin Water
- Process Control
- Purified Water
- Sanitary Flow
Others
- Ambient Temperature Range
- -40 to 140 deg F
- -40 to 60 deg C
- Storage Temperature Range
- -50 to 70 deg C
- -58 to 158 deg F
- Ambient Temperature Range : -40 to 140 deg F|-40 to 60 deg C
- Storage Temperature Range : -50 to 70 deg C|-58 to 158 deg F
- Wall Thickness : ≤ 200 mm (7.87 in)
- Sensor Type : Large: DN200 to DN4000 (8 to 160 in)|Medium: DN50 to DN400 (2 to 16 in)|Small: DN15 to DN100 (1/2 to 4 in)|X-mode: DN200 to DN1250 (8 to 50 in)
- Sensor Cable Length : 6 m (18 ft), 10 m (30 ft) Fixed|Up to 25 m (75 ft) with Extension Cable and Splitter Box
- Recommended Mounting : Inlet run: ~10DN straight length|Outlet run: ~5DN straight length
- Protection Category : Converter: IP66/67 (NEMA6)|Flow Sensor: IP66/67 (NEMA6), IP68 (optional)
- Process Temperature Range : -40 to 120 deg C (-40 to 284 deg F) Standard|-40 to 200 deg C (-40 to 392 deg F) XT Version (option)
- Power Supply : 100 to 230 VAC (-15/+10%)|22 VA|24 VAC/DC (Option)|50/60 Hz (Standard)|Power Consumption: DC 12 W
- Pipe Materials Supported : Internal/external coatings/liners fully bonded to pipe wall|Metal, plastic, ceramic, asbestos cement
- Measurement Configurations : Single Path/Single Pipe Or Dual Path/Dual Pipe (standard)
- Measured Values : Actual Volume Flow Rate|Flow Direction|Flow Speed|Mass Flow|Quality Of Signal|Signal-To-Noise Ratio|Speed Of Sound|Totalized Volume
- Maximum Liner Thickness : < 20 mm (0.79 in)
- Display : Graphic LCD, Backlit|Languages: English, French, German
- Communication : Control Input (Standard)|Current|HART® Communication|Modbus RS485 (Option)|Pulse and Status Output (Standard)
- Cable Connections : 1/2 in NPT (option)|M20 x 1.5 (standard)|PF 1/2 in (option)
- Approvals : Ex zone 1 (ATEX and IECEx, option)|QPS (US/Canada) Class I DIV 1 (option)
- Applications : Acids/Corrosives|Chemical Addition|Cooling Water|Heat/Energy Measurement|Hydrocarbons|Leak Detection|Potable/Deionized/Demin Water|Process Control|Purified Water|Sanitary Flow
