Flange Mount Transmitters - SmartLine STF700
SmartLine® ST700 Flange Mount Pressure Transmitters may be installed directly onto a tank flange and are offered with a variety of tank connections.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The ST700 Flange Mount Pressure Transmitters are ideal for critical applications such as natural gas custody transfer and energy and material balances, where accuracy and stability are of utmost importance. Four ranges are available:
| STF724/ STF725 | -400 to 400 in H2O | -1000 to 1000 mbar |
| STF732/ STF735 | -100 to 100 psi | -7.0 to 7.0 bar |
| STF72F | -400 to 400 in H2O | -1000 to 1000 mbar |
| STF73F | -100 to 100 psi | -7.0 to 7.0 bar |
Specifications
Processing & Performance Metrics
- Accuracy
- Up to 0.05% of span (standard), 0.04% (optional)
- Minimum Span
- STF724/STF72F: 4 inH2O (10 mbar)
- STF732/STF73F: 1 psi (0.07 bar)
- Maximum Turndown Ratio
- Up to 100:1 (model dependent)
Wiring / Mechanical & Physical Properties
- Wiring
- Up to 16 AWG (1.5 mm diameter)
Mechanical & Physical Properties
- Wetted Materials
- 316L Stainless Steel, Hastelloy C-276, Monel 400 (model dependent)
Electrical Specifications
- Supply Voltage
- 10.8 to 42.4 VDC (HART), 15 to 49.3 VDC (DE), 9 to 32 VDC (FF)
- Pressure Range
- LRL: -400 inH2O/-100 psi
- Min Span: 4 inH2O/1 psi
- STF724/STF72F: 400 inH2O (1000 mbar)
- STF732/STF73F: 100 psi (7.0 bar)
Environmental Conditions
- Stability
- Up to 0.02% of URL per year for 10 years
- Relative Humidity
- 0 to 100% RH
- Rangeability
- Up to 100:1 (model dependent)
- Measurement Type
- Flange Mounted Liquid Level
- Maximum Allowable Working Pressure (MAWP)
- ANSI Class 150: up to 285 psi (19.6 bar)
- ANSI Class 300: up to 740 psi (51 bar)
- DN PN40: up to 580 psi (40 bar) (varies by material and temp)
- Ambient Temperature Limits
- -40 to +85 deg C (Ambient); -55 to +120 deg C (Storage)
Functional & Control Features
- Sensor Technology
- Piezoresistive sensor with static pressure & temperature compensation
- Diagnostics
- Comprehensive On-board Diagnostics, Critical/Non-critical, SIL 2/3 Certified
Standards & Certifications
- Safety Approvals
- SIL 2/3 certified, Dual Seal design, NAMUR NE-43 compliance, World class overpressure protection
- Approvals
- FM, CSA, ATEX, IECEx, NEPSI, KOSHA, EAC, CCoE, UATR, SAEx, INMETRO, Marine (ABS, BV, DNV, KR, LR), IEC 61508 SIL 2/3
I/O Capabilities
- Response Time
- As fast as 100 ms millisecond
- Process Connection Type
- 1/4 in NPT, 1/2 in NPT (with Adapter), DIN, ANSI/DIN flanges (2, 3, 4 in Class 150/300, DN50/80/100 PN40)
- Marine Certification
- ABS, BV, DNV, KR, LR
- Configuration
- External Zero, Span, & Configuration Capability; Two or Three-Button Local Configuration
Overview
- Models
- STF724/STF725/STF732/STF735/STF72F/STF73F
Software & Interface
- Fill Fluids
- Silicone Oil 200, CTFE, NEOBEE M-20, Silicone Oil 704
Communication & Protocols
- Air Pressure Switch
- 4 to 20 mA, Honeywell DE, HART (v7.0)
Technical Specifications
- Air Capacity
- Modular LCD (Alphanumeric or Advanced Graphics), Multiple Screens, Configurable Units
Processing & Performance Metrics
- Accuracy
- Up to 0.05% of span (standard), 0.04% (optional)
- Minimum Span
- STF724/STF72F: 4 inH2O (10 mbar)
- STF732/STF73F: 1 psi (0.07 bar)
- Maximum Turndown Ratio
- Up to 100:1 (model dependent)
Wiring / Mechanical & Physical Properties
- Wiring
- Up to 16 AWG (1.5 mm diameter)
Mechanical & Physical Properties
- Wetted Materials
- 316L Stainless Steel, Hastelloy C-276, Monel 400 (model dependent)
Electrical Specifications
- Supply Voltage
- 10.8 to 42.4 VDC (HART), 15 to 49.3 VDC (DE), 9 to 32 VDC (FF)
- Pressure Range
- LRL: -400 inH2O/-100 psi
- Min Span: 4 inH2O/1 psi
- STF724/STF72F: 400 inH2O (1000 mbar)
- STF732/STF73F: 100 psi (7.0 bar)
Environmental Conditions
- Stability
- Up to 0.02% of URL per year for 10 years
- Relative Humidity
- 0 to 100% RH
- Rangeability
- Up to 100:1 (model dependent)
- Measurement Type
- Flange Mounted Liquid Level
- Maximum Allowable Working Pressure (MAWP)
- ANSI Class 150: up to 285 psi (19.6 bar)
- ANSI Class 300: up to 740 psi (51 bar)
- DN PN40: up to 580 psi (40 bar) (varies by material and temp)
- Ambient Temperature Limits
- -40 to +85 deg C (Ambient); -55 to +120 deg C (Storage)
Functional & Control Features
- Sensor Technology
- Piezoresistive sensor with static pressure & temperature compensation
- Diagnostics
- Comprehensive On-board Diagnostics, Critical/Non-critical, SIL 2/3 Certified
Standards & Certifications
- Safety Approvals
- SIL 2/3 certified, Dual Seal design, NAMUR NE-43 compliance, World class overpressure protection
- Approvals
- FM, CSA, ATEX, IECEx, NEPSI, KOSHA, EAC, CCoE, UATR, SAEx, INMETRO, Marine (ABS, BV, DNV, KR, LR), IEC 61508 SIL 2/3
I/O Capabilities
- Response Time
- As fast as 100 ms millisecond
- Process Connection Type
- 1/4 in NPT, 1/2 in NPT (with Adapter), DIN, ANSI/DIN flanges (2, 3, 4 in Class 150/300, DN50/80/100 PN40)
- Marine Certification
- ABS, BV, DNV, KR, LR
- Configuration
- External Zero, Span, & Configuration Capability; Two or Three-Button Local Configuration
Overview
- Models
- STF724/STF725/STF732/STF735/STF72F/STF73F
Software & Interface
- Fill Fluids
- Silicone Oil 200, CTFE, NEOBEE M-20, Silicone Oil 704
Communication & Protocols
- Air Pressure Switch
- 4 to 20 mA, Honeywell DE, HART (v7.0)
Technical Specifications
- Air Capacity
- Modular LCD (Alphanumeric or Advanced Graphics), Multiple Screens, Configurable Units
- Accuracy : Up to 0.05% of span (standard), 0.04% (optional)
- Wiring : Up to 16 AWG (1.5 mm diameter)
- Wetted Materials : 316L Stainless Steel, Hastelloy C-276, Monel 400 (model dependent)
- Supply Voltage : 10.8 to 42.4 VDC (HART), 15 to 49.3 VDC (DE), 9 to 32 VDC (FF)
- Stability : Up to 0.02% of URL per year for 10 years
- Sensor Technology : Piezoresistive sensor with static pressure & temperature compensation
- Safety Approvals : SIL 2/3 certified, Dual Seal design, NAMUR NE-43 compliance, World class overpressure protection
- Response Time : As fast as 100 ms millisecond
- Relative Humidity : 0 to 100% RH
- Rangeability : Up to 100:1 (model dependent)
- Process Connection Type : 1/4 in NPT, 1/2 in NPT (with Adapter), DIN, ANSI/DIN flanges (2, 3, 4 in Class 150/300, DN50/80/100 PN40)
- Pressure Range : LRL: -400 inH2O/-100 psi|Min Span: 4 inH2O/1 psi|STF724/STF72F: 400 inH2O (1000 mbar)|STF732/STF73F: 100 psi (7.0 bar)
- Models : STF724/STF725/STF732/STF735/STF72F/STF73F
- Minimum Span : STF724/STF72F: 4 inH2O (10 mbar)|STF732/STF73F: 1 psi (0.07 bar)
- Measurement Type : Flange Mounted Liquid Level
- Maximum Turndown Ratio : Up to 100:1 (model dependent)
- Maximum Allowable Working Pressure (MAWP) : ANSI Class 150: up to 285 psi (19.6 bar)|ANSI Class 300: up to 740 psi (51 bar)|DN PN40: up to 580 psi (40 bar) (varies by material and temp)
- Marine Certification : ABS, BV, DNV, KR, LR
- Fill Fluids : Silicone Oil 200, CTFE, NEOBEE M-20, Silicone Oil 704
- Diagnostics : Comprehensive On-board Diagnostics, Critical/Non-critical, SIL 2/3 Certified
- Configuration : External Zero, Span, & Configuration Capability; Two or Three-Button Local Configuration
- Approvals : FM, CSA, ATEX, IECEx, NEPSI, KOSHA, EAC, CCoE, UATR, SAEx, INMETRO, Marine (ABS, BV, DNV, KR, LR), IEC 61508 SIL 2/3
- Ambient Temperature Limits : -40 to +85 deg C (Ambient); -55 to +120 deg C (Storage)
- Air Pressure Switch : 4 to 20 mA, Honeywell DE, HART (v7.0)
- Air Capacity : Modular LCD (Alphanumeric or Advanced Graphics), Multiple Screens, Configurable Units
Brochure
Name
Description
File Size
Date
Size
Our SmartLine ST800 Pressure Transmitters include absolute pressure, gauge pressure, draft range pressure, flanged and remote seal transmitters.
application/pdf 863.51 KB
7/1/2023
863.51 KB
Download the latest family brochure for SmartLine. This covers the new features of all Temperature, Pressure, Multivariable and many more transmitters that Honeywell has to offer.
application/pdf 14.99 MB
1/29/2024
14.99 MB
SmartLine® ST800 Absolute Pressure Transmitters are used in vacuum applications that require high accuracy. The transmitters are ideal for low-pressure measurement in vacuum distillation columns.
application/pdf 575.21 KB
10/31/2023
575.21 KB
SmartLine® ST700 Absolute Pressure Transmitters are targeted at applications requiring robust performance in vacuum applications.This includes low-pressure measurement in vacuum distillation columns.
application/pdf 5.39 MB
10/31/2023
5.39 MB
Data Sheet
Name
Description
File Size
Date
Size
STF700 Flange Mount Pressure Transmitter
application/pdf 1.52 MB
1.52 MB
STF700 SmartLine Flange Mounted Level Technical Specification 34-ST-03-123
application/pdf 1.46 MB
12/17/2025
1.46 MB
STF700 SmartLine Flange Mounted Level Technical Specification 34-ST-03-103
application/pdf 1.43 MB
12/17/2025
1.43 MB
French - Part of the SmartLine family of products, the STF700 is suitable for monitoring, control and data acquisition
application/pdf 1.53 MB
1.53 MB
STF700 Flange Pressure Transmitter
application/pdf 1.61 MB
6/8/2022
1.61 MB
HART DTMs for ST 800, ST 700, SMV800, STT850, STT650, STT750, STT700, ST 3000, and STT 250 products. Device configuration parameters are organized under Configuration, Monitoring, Diagnostics and Maintenance giving a good user experience.
application/pdf 109.55 KB
10/31/2023
109.55 KB
SmartLine FlangeMount Pressure Transmitter
application/pdf 1.68 MB
1.68 MB
STF700 products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures.
application/pdf 1.1 MB
1.1 MB
Portuguese SmartLine Flange Mounted Level
application/pdf 1.39 MB
1.39 MB
SmartLine Flange Mount Pressure Transmitter
application/pdf 657.33 KB
657.33 KB
STF700 Flange Mount Pressure Transmitter specification-CN
application/pdf 1.02 MB
6/8/2022
1.02 MB
Italian Specifications for the SmartLine ST 700 Gauge Pressure Transmitter, STF700 and STF70F
application/pdf 1.19 MB
1.19 MB
Flange Mount Transmitter
application/pdf 1.12 MB
1.12 MB
SmartLine Flange Mount Pressure Transmitter
application/pdf 1.22 MB
1.22 MB
White Paper
Name
Description
File Size
Date
Size
White Paper detailing the materials selected and used in the construction of Honeywell pressure transmitters for process control systems in processing industries.
application/pdf 1.92 MB
6/8/2022
1.92 MB
Name
Description
File Size
Date
Size
STF700 Flange Mount Pressure Transmitter
application/pdf 1.52 MB
1.52 MB
STF700 SmartLine Flange Mounted Level Technical Specification 34-ST-03-123
application/pdf 1.46 MB
12/17/2025
1.46 MB
STF700 SmartLine Flange Mounted Level Technical Specification 34-ST-03-103
application/pdf 1.43 MB
12/17/2025
1.43 MB
French - Part of the SmartLine family of products, the STF700 is suitable for monitoring, control and data acquisition
application/pdf 1.53 MB
1.53 MB
STF700 Flange Pressure Transmitter
application/pdf 1.61 MB
6/8/2022
1.61 MB
HART DTMs for ST 800, ST 700, SMV800, STT850, STT650, STT750, STT700, ST 3000, and STT 250 products. Device configuration parameters are organized under Configuration, Monitoring, Diagnostics and Maintenance giving a good user experience.
application/pdf 109.55 KB
10/31/2023
109.55 KB
Our SmartLine ST800 Pressure Transmitters include absolute pressure, gauge pressure, draft range pressure, flanged and remote seal transmitters.
application/pdf 863.51 KB
7/1/2023
863.51 KB
SmartLine FlangeMount Pressure Transmitter
application/pdf 1.68 MB
1.68 MB
STF700 products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures.
application/pdf 1.1 MB
1.1 MB
Download the latest family brochure for SmartLine. This covers the new features of all Temperature, Pressure, Multivariable and many more transmitters that Honeywell has to offer.
application/pdf 14.99 MB
1/29/2024
14.99 MB
Portuguese SmartLine Flange Mounted Level
application/pdf 1.39 MB
1.39 MB
White Paper detailing the materials selected and used in the construction of Honeywell pressure transmitters for process control systems in processing industries.
application/pdf 1.92 MB
6/8/2022
1.92 MB
SmartLine® ST800 Absolute Pressure Transmitters are used in vacuum applications that require high accuracy. The transmitters are ideal for low-pressure measurement in vacuum distillation columns.
application/pdf 575.21 KB
10/31/2023
575.21 KB
SmartLine Flange Mount Pressure Transmitter
application/pdf 657.33 KB
657.33 KB
STF700 Flange Mount Pressure Transmitter specification-CN
application/pdf 1.02 MB
6/8/2022
1.02 MB
SmartLine® ST700 Absolute Pressure Transmitters are targeted at applications requiring robust performance in vacuum applications.This includes low-pressure measurement in vacuum distillation columns.
application/pdf 5.39 MB
10/31/2023
5.39 MB
Italian Specifications for the SmartLine ST 700 Gauge Pressure Transmitter, STF700 and STF70F
application/pdf 1.19 MB
1.19 MB
Flange Mount Transmitter
application/pdf 1.12 MB
1.12 MB
SmartLine Flange Mount Pressure Transmitter
application/pdf 1.22 MB
1.22 MB
Name
Description
File Size
Date
Size
Our SmartLine ST800 Pressure Transmitters include absolute pressure, gauge pressure, draft range pressure, flanged and remote seal transmitters.
863.51 KB
7/1/2023
Download the latest family brochure for SmartLine. This covers the new features of all Temperature, Pressure, Multivariable and many more transmitters that Honeywell has to offer.
14.99 MB
1/29/2024
SmartLine® ST800 Absolute Pressure Transmitters are used in vacuum applications that require high accuracy. The transmitters are ideal for low-pressure measurement in vacuum distillation columns.
575.21 KB
10/31/2023
SmartLine® ST700 Absolute Pressure Transmitters are targeted at applications requiring robust performance in vacuum applications.This includes low-pressure measurement in vacuum distillation columns.
5.39 MB
10/31/2023

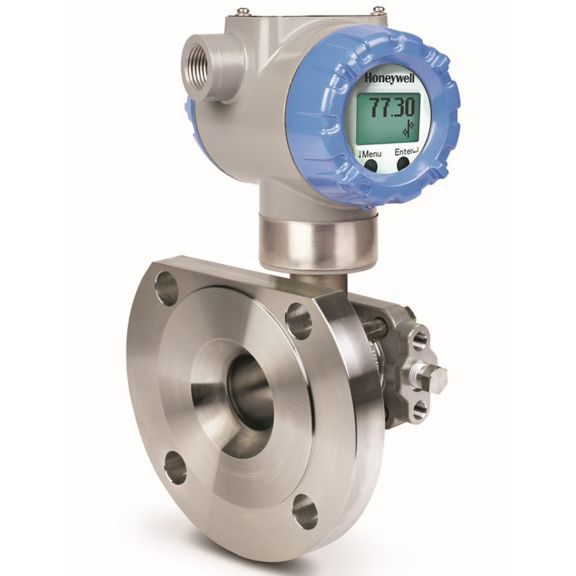

STF700 Flange Mount Pressure Transmitter
1.52 MB
STF700 SmartLine Flange Mounted Level Technical Specification 34-ST-03-123
1.46 MB
12/17/2025
STF700 SmartLine Flange Mounted Level Technical Specification 34-ST-03-103
1.43 MB
12/17/2025
French - Part of the SmartLine family of products, the STF700 is suitable for monitoring, control and data acquisition
1.53 MB
STF700 Flange Pressure Transmitter
1.61 MB
6/8/2022
HART DTMs for ST 800, ST 700, SMV800, STT850, STT650, STT750, STT700, ST 3000, and STT 250 products. Device configuration parameters are organized under Configuration, Monitoring, Diagnostics and Maintenance giving a good user experience.
109.55 KB
10/31/2023
SmartLine FlangeMount Pressure Transmitter
1.68 MB
STF700 products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures.
1.1 MB
STF700 Flange Mount Pressure Transmitter specification-CN
1.02 MB
6/8/2022
Italian Specifications for the SmartLine ST 700 Gauge Pressure Transmitter, STF700 and STF70F
1.19 MB
White Paper detailing the materials selected and used in the construction of Honeywell pressure transmitters for process control systems in processing industries.
1.92 MB
6/8/2022
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
30352520-508
TEFLON PIPE PLUG KIT
30352520-508
TEFLON PIPE PLUG KIT
30369468-501
VENT PLUG KIT LOW DISPLACEMNT
30369468-501
VENT PLUG KIT LOW DISPLACEMNT
30369468-502
MONEL VENT PLUG KIT
30369468-502
MONEL VENT PLUG KIT
30369468-503
VENT PLUG KIT HASTELLOY
30369468-503
VENT PLUG KIT HASTELLOY
30369468C001
VENT PLUG W/CERTIFIC W/ 316 S/S
30369468C001
VENT PLUG W/CERTIFIC W/ 316 S/S
30369468C003
VENT/PLUG(HASTELLOY) W/CERT
30369468C003
VENT/PLUG(HASTELLOY) W/CERT
30679622-501
REPL GASKET KIT CL41
30679622-501
REPL GASKET KIT CL41
30756445-508
KIT GASKET PULP & PAPER ORING
30756445-508
KIT GASKET PULP & PAPER ORING
50049832-501
ST700/800 ALUM CAP W/WINDOW
50049832-501
ST700/800 ALUM CAP W/WINDOW
50049832-521
ST700/800 STAINLESS CAP W/WINDOW
50049832-521
ST700/800 STAINLESS CAP W/WINDOW
