SmartLine STG800 - Gauge Pressure
SmartLine® ST800 Gauge Pressure Transmitters offer exceptional performance and are ideal for high-pressure measurements in boilers and fuel feeds, and tank level measurement applications with a relatively high process temperature.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

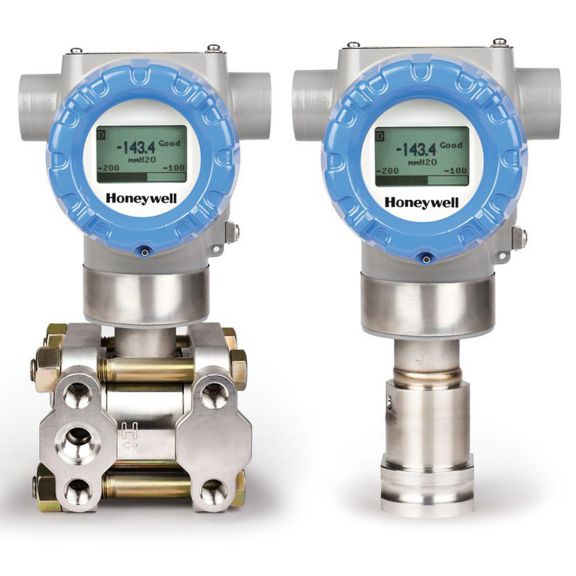

ST800 Dual Head Gauge Pressure Transmitters are suited for applications requiring small flange or 1/2” NPT connections. Typical applications include gauge pressure measurement of reaction vessels in the chemical industry and level applications with process temperatures of up to 302°F /150°C.
In-Line transmitters are screwed directly onto a 1/2” male NPT nipple and can be installed in hazardous environments for accurate, repeatable pressure measurement. Typical applications include high-pressure measurement in boilers, fuel feeds and high-pressure reaction vessels in the petrochemical and hydrocarbon recovery industries.
The following models are available:
In-Line transmitters are screwed directly onto a 1/2” male NPT nipple and can be installed in hazardous environments for accurate, repeatable pressure measurement. Typical applications include high-pressure measurement in boilers, fuel feeds and high-pressure reaction vessels in the petrochemical and hydrocarbon recovery industries.
The following models are available:
| Model | Range(psi) | Range(Bar) |
| STG830/STG83L | 0-50 | 0-3.5 |
| STG840/STG84L | 0-500 | 0-35 |
| STG870/STG87L | 0-3,000 | 0-210 |
| STG88L | 0-6,000 | 0-415 |
| STG89L | 0-10,000 | 0-690 |
Specifications
Processing & Performance Metrics
- Accuracy
- Up to 0.0375% of span (standard), 0.025% (optional)
Wiring / Mechanical & Physical Properties
- Wiring
- Up to 16 AWG (1.5 mm diameter)
Mechanical & Physical Properties
- Wetted Materials
- 316L Stainless Steel, Hastelloy C-276, Monel 400, Tantalum, Gold-Plated options
Electrical Specifications
- Supply Voltage
- DE: 15 to 49.3 VDC
- FF: 9 to 32 VDC
- HART: 10.8 to 42.4 VDC
Environmental Conditions
- Stability
- Up to 0.015% of URL per year for 15 years
- Relative Humidity
- 0 to 100% RH
- Rangeability
- Up to 100:1 (model dependent)
- Overpressure Limits
- STG830/STG83L: 75 psi (5.25 bar)
- STG840/STG84L: 1500 psi (103 bar)
- STG870/STG87L: 4500 psi (310 bar)
- STG88L: 9000 psi (620 bar)
- STG89L: 15000 psi (1035 bar)
- Measurement Type
- Gauge Pressure
- Maximum Allowable Working Pressure (MAWP)
- STG830/STG83L: 50 psi (3.5 bar)
- STG840/STG84L: 500 psi (35 bar)
- STG870/STG87L: 3000 psi (210 bar)
- STG88L: 6000 psi (420 bar)
- STG89L: 10000 psi (690 bar)
- Ambient Temperature Limits
- -40 to +85 deg C (Ambient); -55 to +120 deg C (Storage)
Functional & Control Features
- Sensor Technology
- Piezoresistive sensor with on-chip temperature compensation
Standards & Certifications
- Safety Approvals
- SIL 2/3 Certified, Dual Seal design, NAMUR NE-107 Extended Diagnostics
I/O Capabilities
- Process Connection Type
- 1/2 in NPT (Female), DIN 19213, 1/2 in NPT (Male), 9/16-18 High-Pressure Cone & Thread, G 1/2-B Male
- Configuration
- External Zero, Span & Configuration Capability; Three-Button Local Configuration
Communication & Protocols
- Output/Communications
- 4 to 20 mA, Honeywell DE, HART (v7.0), FOUNDATION Fieldbus
Software & Interface
- Fill Fluids
- Silicone Oil 200, CTFE, NEOBEE M-20, Silicone Oil 704
Technical Specifications
- Display Options
- Modular LCD (Alphanumeric or Advanced Graphics), Multiple Screens, Configurable Units
Processing & Performance Metrics
- Accuracy
- Up to 0.0375% of span (standard), 0.025% (optional)
Wiring / Mechanical & Physical Properties
- Wiring
- Up to 16 AWG (1.5 mm diameter)
Mechanical & Physical Properties
- Wetted Materials
- 316L Stainless Steel, Hastelloy C-276, Monel 400, Tantalum, Gold-Plated options
Electrical Specifications
- Supply Voltage
- DE: 15 to 49.3 VDC
- FF: 9 to 32 VDC
- HART: 10.8 to 42.4 VDC
Environmental Conditions
- Stability
- Up to 0.015% of URL per year for 15 years
- Relative Humidity
- 0 to 100% RH
- Rangeability
- Up to 100:1 (model dependent)
- Overpressure Limits
- STG830/STG83L: 75 psi (5.25 bar)
- STG840/STG84L: 1500 psi (103 bar)
- STG870/STG87L: 4500 psi (310 bar)
- STG88L: 9000 psi (620 bar)
- STG89L: 15000 psi (1035 bar)
- Measurement Type
- Gauge Pressure
- Maximum Allowable Working Pressure (MAWP)
- STG830/STG83L: 50 psi (3.5 bar)
- STG840/STG84L: 500 psi (35 bar)
- STG870/STG87L: 3000 psi (210 bar)
- STG88L: 6000 psi (420 bar)
- STG89L: 10000 psi (690 bar)
- Ambient Temperature Limits
- -40 to +85 deg C (Ambient); -55 to +120 deg C (Storage)
Functional & Control Features
- Sensor Technology
- Piezoresistive sensor with on-chip temperature compensation
Standards & Certifications
- Safety Approvals
- SIL 2/3 Certified, Dual Seal design, NAMUR NE-107 Extended Diagnostics
I/O Capabilities
- Process Connection Type
- 1/2 in NPT (Female), DIN 19213, 1/2 in NPT (Male), 9/16-18 High-Pressure Cone & Thread, G 1/2-B Male
- Configuration
- External Zero, Span & Configuration Capability; Three-Button Local Configuration
Communication & Protocols
- Output/Communications
- 4 to 20 mA, Honeywell DE, HART (v7.0), FOUNDATION Fieldbus
Software & Interface
- Fill Fluids
- Silicone Oil 200, CTFE, NEOBEE M-20, Silicone Oil 704
Technical Specifications
- Display Options
- Modular LCD (Alphanumeric or Advanced Graphics), Multiple Screens, Configurable Units
- Accuracy : Up to 0.0375% of span (standard), 0.025% (optional)
- Wiring : Up to 16 AWG (1.5 mm diameter)
- Wetted Materials : 316L Stainless Steel, Hastelloy C-276, Monel 400, Tantalum, Gold-Plated options
- Supply Voltage : DE: 15 to 49.3 VDC|FF: 9 to 32 VDC|HART: 10.8 to 42.4 VDC
- Stability : Up to 0.015% of URL per year for 15 years
- Sensor Technology : Piezoresistive sensor with on-chip temperature compensation
- Safety Approvals : SIL 2/3 Certified, Dual Seal design, NAMUR NE-107 Extended Diagnostics
- Relative Humidity : 0 to 100% RH
- Rangeability : Up to 100:1 (model dependent)
- Process Connection Type : 1/2 in NPT (Female), DIN 19213, 1/2 in NPT (Male), 9/16-18 High-Pressure Cone & Thread, G 1/2-B Male
- Overpressure Limits : STG830/STG83L: 75 psi (5.25 bar)|STG840/STG84L: 1500 psi (103 bar)|STG870/STG87L: 4500 psi (310 bar)|STG88L: 9000 psi (620 bar)|STG89L: 15000 psi (1035 bar)
- Output/Communications : 4 to 20 mA, Honeywell DE, HART (v7.0), FOUNDATION Fieldbus
- Measurement Type : Gauge Pressure
- Maximum Allowable Working Pressure (MAWP) : STG830/STG83L: 50 psi (3.5 bar)|STG840/STG84L: 500 psi (35 bar)|STG870/STG87L: 3000 psi (210 bar)|STG88L: 6000 psi (420 bar)|STG89L: 10000 psi (690 bar)
- Fill Fluids : Silicone Oil 200, CTFE, NEOBEE M-20, Silicone Oil 704
- Display Options : Modular LCD (Alphanumeric or Advanced Graphics), Multiple Screens, Configurable Units
- Configuration : External Zero, Span & Configuration Capability; Three-Button Local Configuration
- Ambient Temperature Limits : -40 to +85 deg C (Ambient); -55 to +120 deg C (Storage)
