smartline st800 pressure transmitters
SmartLine STR800 - Remote Diaphragm

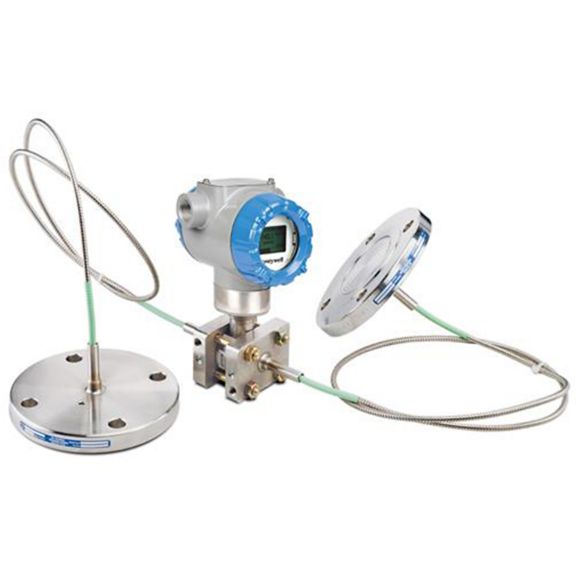

SmartLine® ST800 Remote Diaphragm Seal Transmitters provide accurate measurement for a wide variety of applications involving corrosive or high-temperature process fluids.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Honeywell offers the following ST800 Remote Diaphragm Seal Transmitters:
- Flush flange seals
- Flange seal with extended diaphragm
- Pancake seals
- Sanitary seals
- Chemical tee Taylor wedge
- Seals with threaded process connections
- Saddle seals
- Calibration rings
- Stainless steel armor and PVC-coated, stainless steel armor capillaries
- 2” stainless steel nipples
- Welded meter body
| STR82D | 0-400 inH2O | 0-1000 mbar |
| STR83D | 0-100 psig | 0-7 bar |
| STR84G | 0-500 psig | 0-35 bar |
| STR87G | 0-3000 psig | 0-210 bar |
| STR84A | 0-500 psia | 0-35 bara |
Specifications
Processing & Performance Metrics
- Accuracy
- Up to 0.0375% of span
Mechanical & Physical Properties
- Wetted Materials
- 316L Stainless Steel, Monel®, Hastelloy® C, Tantalum
Electrical Specifications
- Supply Voltage
- DE: 15 to 49.3 VDC
- FF: 9 to 32 VDC
- HART: 10.8 to 42.4 VDC
Functional & Control Features
- Sensor Technology
- High performance piezo-resistive sensor
- Diagnostics
- Comprehensive On-board Diagnostics, Critical/Non-Critical, Health Watch indication
Technical Specifications
- Seal Type
- Flush Flanged, Extended Diaphragm, Pancake, Chemical Tee, Threaded, Sanitary, Saddle, Calibration Ring
- Display Options
- Modular LCD (Alphanumeric or Advanced Graphics), Multiple screens, Configurable units
- Diaphragm Size
- 2.4, 2.9, 3., 4.1 in (varies by seal type and application) inch
Standards & Certifications
- Safety Approvals
- ANSI/NFPA 70-202, ANSI/ISA 12.27.0, IEC 61508 SIL 2/3
- Overpressure Protection
- World Class, SIL 2/3 Compliant
- Lightning Protection
- 10uA max @ 42.4VDC, Impulse rating: 8/20us 5000A
- Approvals
- FM, CSA, ATEX, IECEx, NEPSI, KOSHA, EAC, CCoE, UATR, SAEx, INMETRO, Marine (ABS, BV, DNV, KR, LR), IEC 61508 SIL 2/3
Environmental Conditions
- Relative Humidity
- 0 to 100% RH
- Rangeability
- Up to 100:1
- Measurement Type
- Gauge, Differential, Absolute Pressure
- Maximum Allowable Working Pressure (MAWP)
- Up to 3,000 psig (210 bar) depending on model and construction
- Ambient Temperature Limits
- -55 to +90 deg C (-67 deg F to 194 deg F)
Communication & Protocols
- Output/Communications
- Honeywell DE, HART (v7.0), FOUNDATION Fieldbus
- Digital Protocols
- HART 7, DE, FOUNDATION Fieldbus ITK 6.0.1
Overview
- Models
- STR82D, STR83D, STR84D, STR87D, STR84A
I/O Capabilities
- Marine Certification
- ABS, BV, DNV, KR, LR
- Configuration
- External Zero, Span & Configuration Capability; Three-Button Local Configuration
- Compensation
- Automatic static pressure & temperature compensation
- Analog Output
- Two-wire, 4 to 20 mA (HART & DE only)
Material Specifications
- Electronic Housing
- Polyester Powder-Coated Aluminum (<0.4% Cu), Optional 316/316L Stainless Steel, IP66/IP67
Applications & Compatibility
- Electromagnetic Compatibility
- IEC 61326-3-1
Processing & Performance Metrics
- Accuracy
- Up to 0.0375% of span
Mechanical & Physical Properties
- Wetted Materials
- 316L Stainless Steel, Monel®, Hastelloy® C, Tantalum
Electrical Specifications
- Supply Voltage
- DE: 15 to 49.3 VDC
- FF: 9 to 32 VDC
- HART: 10.8 to 42.4 VDC
Functional & Control Features
- Sensor Technology
- High performance piezo-resistive sensor
- Diagnostics
- Comprehensive On-board Diagnostics, Critical/Non-Critical, Health Watch indication
Technical Specifications
- Seal Type
- Flush Flanged, Extended Diaphragm, Pancake, Chemical Tee, Threaded, Sanitary, Saddle, Calibration Ring
- Display Options
- Modular LCD (Alphanumeric or Advanced Graphics), Multiple screens, Configurable units
- Diaphragm Size
- 2.4, 2.9, 3., 4.1 in (varies by seal type and application) inch
Standards & Certifications
- Safety Approvals
- ANSI/NFPA 70-202, ANSI/ISA 12.27.0, IEC 61508 SIL 2/3
- Overpressure Protection
- World Class, SIL 2/3 Compliant
- Lightning Protection
- 10uA max @ 42.4VDC, Impulse rating: 8/20us 5000A
- Approvals
- FM, CSA, ATEX, IECEx, NEPSI, KOSHA, EAC, CCoE, UATR, SAEx, INMETRO, Marine (ABS, BV, DNV, KR, LR), IEC 61508 SIL 2/3
Environmental Conditions
- Relative Humidity
- 0 to 100% RH
- Rangeability
- Up to 100:1
- Measurement Type
- Gauge, Differential, Absolute Pressure
- Maximum Allowable Working Pressure (MAWP)
- Up to 3,000 psig (210 bar) depending on model and construction
- Ambient Temperature Limits
- -55 to +90 deg C (-67 deg F to 194 deg F)
Communication & Protocols
- Output/Communications
- Honeywell DE, HART (v7.0), FOUNDATION Fieldbus
- Digital Protocols
- HART 7, DE, FOUNDATION Fieldbus ITK 6.0.1
Overview
- Models
- STR82D, STR83D, STR84D, STR87D, STR84A
I/O Capabilities
- Marine Certification
- ABS, BV, DNV, KR, LR
- Configuration
- External Zero, Span & Configuration Capability; Three-Button Local Configuration
- Compensation
- Automatic static pressure & temperature compensation
- Analog Output
- Two-wire, 4 to 20 mA (HART & DE only)
Material Specifications
- Electronic Housing
- Polyester Powder-Coated Aluminum (<0.4% Cu), Optional 316/316L Stainless Steel, IP66/IP67
Applications & Compatibility
- Electromagnetic Compatibility
- IEC 61326-3-1
- Accuracy : Up to 0.0375% of span
- Wetted Materials : 316L Stainless Steel, Monel®, Hastelloy® C, Tantalum
- Supply Voltage : DE: 15 to 49.3 VDC|FF: 9 to 32 VDC|HART: 10.8 to 42.4 VDC
- Sensor Technology : High performance piezo-resistive sensor
- Seal Type : Flush Flanged, Extended Diaphragm, Pancake, Chemical Tee, Threaded, Sanitary, Saddle, Calibration Ring
- Safety Approvals : ANSI/NFPA 70-202, ANSI/ISA 12.27.0, IEC 61508 SIL 2/3
- Relative Humidity : 0 to 100% RH
- Rangeability : Up to 100:1
- Overpressure Protection : World Class, SIL 2/3 Compliant
- Output/Communications : Honeywell DE, HART (v7.0), FOUNDATION Fieldbus
- Models : STR82D, STR83D, STR84D, STR87D, STR84A
- Measurement Type : Gauge, Differential, Absolute Pressure
- Maximum Allowable Working Pressure (MAWP) : Up to 3,000 psig (210 bar) depending on model and construction
- Marine Certification : ABS, BV, DNV, KR, LR
- Lightning Protection : 10uA max @ 42.4VDC, Impulse rating: 8/20us 5000A
- Electronic Housing : Polyester Powder-Coated Aluminum (<0.4% Cu), Optional 316/316L Stainless Steel, IP66/IP67
- Electromagnetic Compatibility : IEC 61326-3-1
- Display Options : Modular LCD (Alphanumeric or Advanced Graphics), Multiple screens, Configurable units
- Digital Protocols : HART 7, DE, FOUNDATION Fieldbus ITK 6.0.1
- Diaphragm Size : 2.4, 2.9, 3., 4.1 in (varies by seal type and application) inch
- Diagnostics : Comprehensive On-board Diagnostics, Critical/Non-Critical, Health Watch indication
- Configuration : External Zero, Span & Configuration Capability; Three-Button Local Configuration
- Compensation : Automatic static pressure & temperature compensation
- Approvals : FM, CSA, ATEX, IECEx, NEPSI, KOSHA, EAC, CCoE, UATR, SAEx, INMETRO, Marine (ABS, BV, DNV, KR, LR), IEC 61508 SIL 2/3
- Analog Output : Two-wire, 4 to 20 mA (HART & DE only)
- Ambient Temperature Limits : -55 to +90 deg C (-67 deg F to 194 deg F)
