smartline temperature transmitters

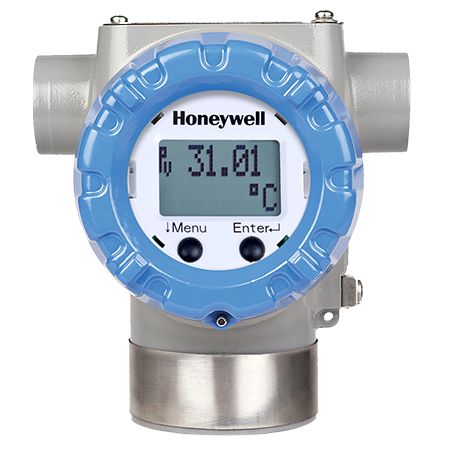

SmartLine STT750
STT750 Temperature Transmitters are suitable for a wide range of control and safety applications, the transmitters provide users with the benefits of the SmartLine platform, including modularity, easier maintenance and lower total cost of ownership
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
SmartLine STT750 Temperature Transmitters offer the following features:
- Single universal input
- Digital accuracy up to 0.14°C for RTD
- Easy-to-use-and-read basic display
- Transmitter and sensor diagnostics
- HART7 communications
- Full compliance with SIL 2/3 requirements
- Up to a 3-year warranty
- FM/CSA/ATEX/IECEx approvals.
Specifications
Processing & Performance Metrics
- Accuracy
- Digital: up to ±0.14 deg C; Output D/A: ±0.025% of span (Pt100)
I/O Capabilities
- Update Time
- 125 ms (Single Input), 250 ms (Dual Input)
- Galvanic Isolation
- 2000 VDC (1400 Vrms)
- Configuration
- Integral Three-Button, Handheld (Versatilis, HART), PC (Field Device Manager, FDM Express)
Electrical Specifications
- Supply Voltage
- 11.8 to 42.4 VDC (IS versions limited to 30 VDC)
- Output Options
- 4 to 20 mA DC, HART® (v7.0)
- Input Type
- RTD (2, 3, 4 wire), Thermocouple, Millivolt, Ohm voltage direct current
Environmental Conditions
- Stability
- ±0.01% of URL/year for 10 years
- Relative Humidity
- 0 to 100% RH (Non-Condensing)
- Load Resistance
- 0 to 1400 Ω (HART)
- Ambient Temperature Range
- -40 to +85 deg C (-40 to +185 deg F) Rated, -55 to +120 deg C (-67 to +248 deg F) Storage
Applications & Compatibility
- Mounting
- Wall, Pipe, DIN Rail, Direct Sensor Head
Material Specifications
- Materials
- Aluminum (Polyester Powder-Coated, Low Copper), Optional 316 Stainless Steel, Silicone O-Ring
Mechanical & Physical Properties
- Enclosure
- IP66, IP67 (NEMA 4X)
Software & Interface
- Display
- Modular LCD, 2 lines, 6 digits, Field Configurable, Multiple Units ( deg C, deg F, deg R, Kelvin, mV, Ohm)
Standards & Certifications
- Approvals
- Safety: IEC 61508 SIL 2/3, EMC: (EN 61326-1, EN 61326-3-1), Marine: (ABS, DNV, LR, BV), Explosion Proof and Intrinsic Safety: (FM, CSA, ATEX, IECEx, NEPSI, KOSHA, INMETRO, SAEx, EAC, CCoE)
Processing & Performance Metrics
- Accuracy
- Digital: up to ±0.14 deg C; Output D/A: ±0.025% of span (Pt100)
I/O Capabilities
- Update Time
- 125 ms (Single Input), 250 ms (Dual Input)
- Galvanic Isolation
- 2000 VDC (1400 Vrms)
- Configuration
- Integral Three-Button, Handheld (Versatilis, HART), PC (Field Device Manager, FDM Express)
Electrical Specifications
- Supply Voltage
- 11.8 to 42.4 VDC (IS versions limited to 30 VDC)
- Output Options
- 4 to 20 mA DC, HART® (v7.0)
- Input Type
- RTD (2, 3, 4 wire), Thermocouple, Millivolt, Ohm voltage direct current
Environmental Conditions
- Stability
- ±0.01% of URL/year for 10 years
- Relative Humidity
- 0 to 100% RH (Non-Condensing)
- Load Resistance
- 0 to 1400 Ω (HART)
- Ambient Temperature Range
- -40 to +85 deg C (-40 to +185 deg F) Rated, -55 to +120 deg C (-67 to +248 deg F) Storage
Applications & Compatibility
- Mounting
- Wall, Pipe, DIN Rail, Direct Sensor Head
Material Specifications
- Materials
- Aluminum (Polyester Powder-Coated, Low Copper), Optional 316 Stainless Steel, Silicone O-Ring
Mechanical & Physical Properties
- Enclosure
- IP66, IP67 (NEMA 4X)
Software & Interface
- Display
- Modular LCD, 2 lines, 6 digits, Field Configurable, Multiple Units ( deg C, deg F, deg R, Kelvin, mV, Ohm)
Standards & Certifications
- Approvals
- Safety: IEC 61508 SIL 2/3, EMC: (EN 61326-1, EN 61326-3-1), Marine: (ABS, DNV, LR, BV), Explosion Proof and Intrinsic Safety: (FM, CSA, ATEX, IECEx, NEPSI, KOSHA, INMETRO, SAEx, EAC, CCoE)
- Accuracy : Digital: up to ±0.14 deg C; Output D/A: ±0.025% of span (Pt100)
- Update Time : 125 ms (Single Input), 250 ms (Dual Input)
- Supply Voltage : 11.8 to 42.4 VDC (IS versions limited to 30 VDC)
- Stability : ±0.01% of URL/year for 10 years
- Relative Humidity : 0 to 100% RH (Non-Condensing)
- Output Options : 4 to 20 mA DC, HART® (v7.0)
- Mounting : Wall, Pipe, DIN Rail, Direct Sensor Head
- Materials : Aluminum (Polyester Powder-Coated, Low Copper), Optional 316 Stainless Steel, Silicone O-Ring
- Load Resistance : 0 to 1400 Ω (HART)
- Input Type : RTD (2, 3, 4 wire), Thermocouple, Millivolt, Ohm voltage direct current
- Galvanic Isolation : 2000 VDC (1400 Vrms)
- Enclosure : IP66, IP67 (NEMA 4X)
- Display : Modular LCD, 2 lines, 6 digits, Field Configurable, Multiple Units ( deg C, deg F, deg R, Kelvin, mV, Ohm)
- Configuration : Integral Three-Button, Handheld (Versatilis, HART), PC (Field Device Manager, FDM Express)
- Approvals : Safety: IEC 61508 SIL 2/3, EMC: (EN 61326-1, EN 61326-3-1), Marine: (ABS, DNV, LR, BV), Explosion Proof and Intrinsic Safety: (FM, CSA, ATEX, IECEx, NEPSI, KOSHA, INMETRO, SAEx, EAC, CCoE)
- Ambient Temperature Range : -40 to +85 deg C (-40 to +185 deg F) Rated, -55 to +120 deg C (-67 to +248 deg F) Storage
