SmartLine Temperature Probe Assemblies
Honeywell temperature probe assemblies are ideal for process manufacturers, Original Equipment Manufacturers (OEMs) and Engineering Procurement Construction (EPC) contractors for temperature measurement.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

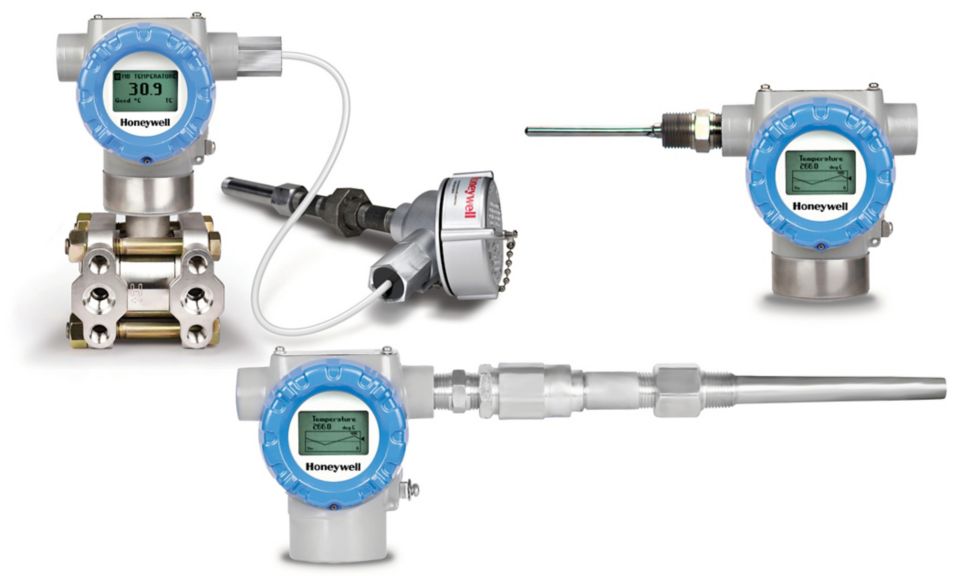

SmartLine Temperature probe assemblies are installation-ready temperature measurement assemblies offered with Honeywell's temperature transmitters, sensor heads, sensors, thermowells and process connections. They are available in four versions-
- STT85A: Probe Assembly with STT850 transmitter
- STT820: Rigid probe assembly
- STT830: Threaded and socket weld thermowell assembly

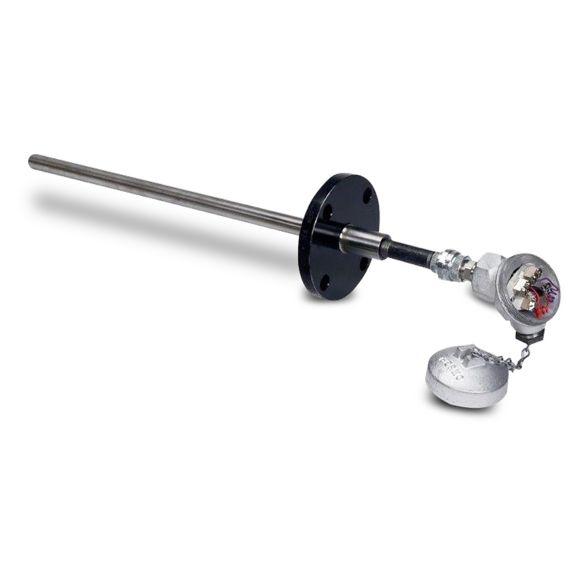

- STT840: Drilled and flanged thermowell assembly
Specifications
Overview
- Models
- STT820, STT830, STT840
Communication & Protocols
- Communication Protocols
- Analog, DE, HART, Fieldbus Foundation (FF)
Mechanical & Physical Properties
- Thermowell Designs
- Tapered, Straight, Stepped
- Thermowell Entry
- 1/2 in NPT
Environmental Conditions
- Temperature Range
- RTD: -58 to +932 deg F; Thermocouple: up to +2300 deg F
Standards & Certifications
- Protection Grade
- IP66, IP68, NEMA 4, NEMA 4X, FDA Approved
- Approvals
- CSA, FM, ATEX, NACE, ASTM, ASME, Mill Test Reports
Material Specifications
- Housing Material
- Aluminum, 316 Stainless Steel, Cast Iron, Polypropylene
I/O Capabilities
- Explosion Proof
- Class 2 Div 1, Groups E, F, G)
- Yes (Class 1 Div 1, Groups B, C, D
Technical Specifications
- Conduit Entries
- 1/2 in NPT, 3/4 in NPT, M20x1.5
Applications & Compatibility
- Sensor Type
- RTD (Platinum, Copper, Nickel, Nickel/Iron), Thermocouple (E, J, K, N, T)
Overview
- Models
- STT820, STT830, STT840
Communication & Protocols
- Communication Protocols
- Analog, DE, HART, Fieldbus Foundation (FF)
Mechanical & Physical Properties
- Thermowell Designs
- Tapered, Straight, Stepped
- Thermowell Entry
- 1/2 in NPT
Environmental Conditions
- Temperature Range
- RTD: -58 to +932 deg F; Thermocouple: up to +2300 deg F
Standards & Certifications
- Protection Grade
- IP66, IP68, NEMA 4, NEMA 4X, FDA Approved
- Approvals
- CSA, FM, ATEX, NACE, ASTM, ASME, Mill Test Reports
Material Specifications
- Housing Material
- Aluminum, 316 Stainless Steel, Cast Iron, Polypropylene
I/O Capabilities
- Explosion Proof
- Class 2 Div 1, Groups E, F, G)
- Yes (Class 1 Div 1, Groups B, C, D
Technical Specifications
- Conduit Entries
- 1/2 in NPT, 3/4 in NPT, M20x1.5
Applications & Compatibility
- Sensor Type
- RTD (Platinum, Copper, Nickel, Nickel/Iron), Thermocouple (E, J, K, N, T)
- Models : STT820, STT830, STT840
- Communication Protocols : Analog, DE, HART, Fieldbus Foundation (FF)
- Thermowell Designs : Tapered, Straight, Stepped
- Temperature Range : RTD: -58 to +932 deg F; Thermocouple: up to +2300 deg F
- Thermowell Entry : 1/2 in NPT
- Protection Grade : IP66, IP68, NEMA 4, NEMA 4X, FDA Approved
- Housing Material : Aluminum, 316 Stainless Steel, Cast Iron, Polypropylene
- Explosion Proof : Class 2 Div 1, Groups E, F, G)|Yes (Class 1 Div 1, Groups B, C, D
- Conduit Entries : 1/2 in NPT, 3/4 in NPT, M20x1.5
- Sensor Type : RTD (Platinum, Copper, Nickel, Nickel/Iron), Thermocouple (E, J, K, N, T)
- Approvals : CSA, FM, ATEX, NACE, ASTM, ASME, Mill Test Reports
