Discontinued: Gas

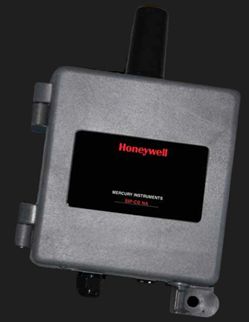

SIP-CB Data Logger

The Honeywell SIP-CB DataLogger is a 4-Channel Datalogger with Integral GSM/GPRS Cellular Modem that provides portability while lowering overall operations and installation costs by having no wireline to install or maintain.

Overview
What Is It?
​SIP-CB provides synchronized gas day meter reading and interval data to Mercury Instruments’ DC2009 and Itron’s MV-90 xi meter data management systems.

Features and Benefits:
  • Four pulse channel inputs provide 120 days of 60-minute data
  • Multi-band GSM/GPRS digital cellular radio
  • Packet switched (IP) connectivity lowers communication costs
  • DES-based encryption for secure IP access
  • Over-the-air (OTA) download of SIP-CB operating system and configuration provides future-proofing
  • Programmable interval sizes: 1, 5, 15, 30, 60 min.
  • Four user defined digital alarm inputs
  • Four digital outputs configurable to provide pulse outputs or control signals
  • Electrical isolation from telephone network.
How Does It Work?
​SIP-CB can count low frequency pulses from up to four independent sources over specific periods of time. At the end of each time period, it saves the total counts in its memory and starts again. At regular intervals, or on demand, the SIP-CB establishes a radio link with a GSM cellular telephone service provider and transmits its stored information to a central computer system for processing.
Alternatively, any of the four pulse-counting inputs can be configured to monitor alarm or status conditions. SIP-CB also has another four inputs dedicated to alarm or status processing only. It is, therefore, capable of monitoring up to eight alarm or status conditions. SIP-CB can be programmed to place an immediate call to alert users in case of an incident or simply report it on the next scheduled call.

What Problems Does It Solve?
​In addition to reducing operational and installation costs, the SIP-CB provides great benefits to users involved in energy measurement for billing, trading, load management, distribution engineering and custody transfer.
Brochure
Name
Description
File Size
Date
Size
The SIP-CB provides synchronized gas day meter reading and interval data to Mercury Instruments� DC2009 and Itron�s MV-90 xi meter data management systems.
application/pdf 124.06 KB
4/29/2021
124.06 KB
Manuals and Guides
Name
Description
File Size
Date
Size
The SIP-CB is a battery-operated wireless data logger. One way to reduce power consumption and increase battery life is to use �pulsed sample current�.
application/pdf 256.86 KB
4/29/2021
256.86 KB
SIP-CB combined with additional analog circuitry forms a product called the SIP-CB/a. The SIP-CB/a is designed to count low-frequency pulses over a specific period of time ranging from 1 to 60 minutes.
application/pdf 1.27 MB
4/29/2021
1.27 MB
The SIP-CB is a battery-operated wireless data logger. This document will help estimate the useful life of the battery pack.
application/pdf 230.88 KB
4/29/2021
230.88 KB
SIP-CB can count low frequency pulses from up to four independent sources. It counts these pulses over specific periods of time ranging from 1 minute up to 60 minutes.
application/pdf 2.86 MB
4/29/2021
2.86 MB
Name
Description
File Size
Date
Size
The SIP-CB provides synchronized gas day meter reading and interval data to Mercury Instruments� DC2009 and Itron�s MV-90 xi meter data management systems.
application/pdf 124.06 KB
4/29/2021
124.06 KB
The SIP-CB is a battery-operated wireless data logger. One way to reduce power consumption and increase battery life is to use �pulsed sample current�.
application/pdf 256.86 KB
4/29/2021
256.86 KB
SIP-CB combined with additional analog circuitry forms a product called the SIP-CB/a. The SIP-CB/a is designed to count low-frequency pulses over a specific period of time ranging from 1 to 60 minutes.
application/pdf 1.27 MB
4/29/2021
1.27 MB
The SIP-CB is a battery-operated wireless data logger. This document will help estimate the useful life of the battery pack.
application/pdf 230.88 KB
4/29/2021
230.88 KB
SIP-CB can count low frequency pulses from up to four independent sources. It counts these pulses over specific periods of time ranging from 1 minute up to 60 minutes.
application/pdf 2.86 MB
4/29/2021
2.86 MB
Name
Description
File Size
Date
Size
The SIP-CB provides synchronized gas day meter reading and interval data to Mercury Instruments� DC2009 and Itron�s MV-90 xi meter data management systems.
124.06 KB
4/29/2021
The SIP-CB is a battery-operated wireless data logger. One way to reduce power consumption and increase battery life is to use �pulsed sample current�.
256.86 KB
4/29/2021
SIP-CB combined with additional analog circuitry forms a product called the SIP-CB/a. The SIP-CB/a is designed to count low-frequency pulses over a specific period of time ranging from 1 to 60 minutes.
1.27 MB
4/29/2021
The SIP-CB is a battery-operated wireless data logger. This document will help estimate the useful life of the battery pack.
230.88 KB
4/29/2021
SIP-CB can count low frequency pulses from up to four independent sources. It counts these pulses over specific periods of time ranging from 1 minute up to 60 minutes.
2.86 MB
4/29/2021
Name
Description
File Size
Date
Size
No support documents tagged to this product
An error occurred . Please try after sometime
Category@category|Type@type

Filters

Product Number
Part Number
Description
Leaf Category
Thumbnail
Add to list
2001-0195-003S
UA SIP-CB DATALOGGER 4CH
2001-0195-003S
UA SIP-CB DATALOGGER 4CH
