high pressure regulators up to ansi 600
HON 502

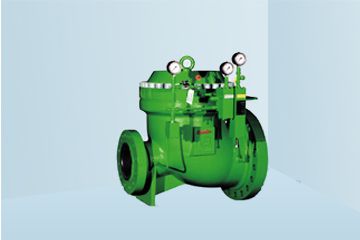

HON 502 pilot-operated gas pressure regulator according to DIN EN 334 (operating with auxiliary energy from the inlet pressure range). It is ideal for use at transfer stations in gas transport networks for power plants and industrial facilities.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features and Benefits:
- Wide inlet pressure range
- Pilot Series HON 630
- HON 630-1 (formerly HON 640), single stage type for inlet pressure variation < 15 bar
- Outlet DN double as inlet DN
- Fewer parts, easy to maintain, quiet operation
- Grid plate for noise reduction
- Also available with metal foam for additional noise reduction
- Suitable for non-aggressive gases, other gases on enquiry
- CE registration according to PED
- Max. admissible pressure PS: 100 bar
- Max. inlet pressure pu max: up to 100 bar
- Outlet pressure range Wd: 0.3 bar to 90 bar
- Min pressure drop: approx. 1.5 bar, others on enquiry
- Max. pressure drop: 90 bar
- Class of lock-up pressure zone: SZ 2.5
- Connection: Flange PN 40 and Flange Class 300, Class 600 according to ANSI 16.5 with pipe sizes inlet/outlet - DN 25/50, DN 50/100, DN 80/150, DN 100/200, DN 150/300, DN 200/300
Specifications
Applications & Compatibility
- Applications
- Offtake stations in gas transmission systems, gas supply to industrial and power plants
Technical Specifications
- Suitable Media
- Natural gas and all non-corrosive gaseous media
- Minimum Differential Pressure
- 2 bar
- Maximum Inlet Pressure Rating
- 100 bar
- Connection Type
- Flanged to DIN PN 40 and ANSI 300/600
Environmental Conditions
- Outlet Pressure Range
- 0.3 to 40 bar (Diaphragm Assembly)
- 20 to 90 bar (Metal Harmonica Type Measuring Unit)
- Operating Temperature Range
- -20 to +60 deg C
Processing & Performance Metrics
- Maximum Differential Pressure
- 70 bar pounds per square inch
Mechanical & Physical Properties
- Lock-up Pressure Zone Class
- SZ 2.5
Standards & Certifications
- Explosion Protection
- All mechanical components of this device are without potential ignition sources and/or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
- Approvals
- CE Mark with PED
Material Specifications
- Body Material
- Cast Steel
Applications & Compatibility
- Applications
- Offtake stations in gas transmission systems, gas supply to industrial and power plants
Technical Specifications
- Suitable Media
- Natural gas and all non-corrosive gaseous media
- Minimum Differential Pressure
- 2 bar
- Maximum Inlet Pressure Rating
- 100 bar
- Connection Type
- Flanged to DIN PN 40 and ANSI 300/600
Environmental Conditions
- Outlet Pressure Range
- 0.3 to 40 bar (Diaphragm Assembly)
- 20 to 90 bar (Metal Harmonica Type Measuring Unit)
- Operating Temperature Range
- -20 to +60 deg C
Processing & Performance Metrics
- Maximum Differential Pressure
- 70 bar pounds per square inch
Mechanical & Physical Properties
- Lock-up Pressure Zone Class
- SZ 2.5
Standards & Certifications
- Explosion Protection
- All mechanical components of this device are without potential ignition sources and/or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
- Approvals
- CE Mark with PED
Material Specifications
- Body Material
- Cast Steel
- Applications : Offtake stations in gas transmission systems, gas supply to industrial and power plants
- Suitable Media : Natural gas and all non-corrosive gaseous media
- Outlet Pressure Range : 0.3 to 40 bar (Diaphragm Assembly)|20 to 90 bar (Metal Harmonica Type Measuring Unit)
- Operating Temperature Range : -20 to +60 deg C
- Minimum Differential Pressure : 2 bar
- Maximum Inlet Pressure Rating : 100 bar
- Maximum Differential Pressure : 70 bar pounds per square inch
- Lock-up Pressure Zone Class : SZ 2.5
- Explosion Protection : All mechanical components of this device are without potential ignition sources and/or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
- Connection Type : Flanged to DIN PN 40 and ANSI 300/600
- Body Material : Cast Steel
- Approvals : CE Mark with PED
