HON 530-E

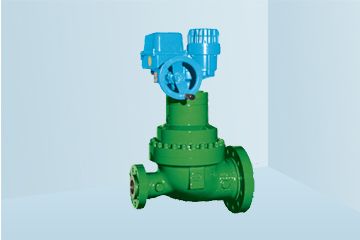

HON 530-E is an electrically operated flow control valve up to size DN 150/300. It is also equipped with incorporated SSV up to DN 150/300 to class 600 according to DIN EN 334/14382.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features and Benefits:
- Device for flow and pressure control tasks
- Safety Shut-off Valve (SSV) for DN 25/50, DN 80/150 and DN 100/200
- Optionally: actuator systems K 10a, K 11a/1, K 11a/2, K 16, K 17, K 18, K 19
- Valve sleeve with full pressure compensation
- Noise reducing devices as a standard feature
- Bubble-tight shut-off
- Suitable for non-aggressive gases, other gases on enquiry
- CE registration according to PED
- Max. admissible pressure PS: 100 bar
- Max. inlet pressure pu max: up to 100 bar
- SSV setting range:
- For overpressure: Wdo 0.08 bar to 90 bar
- For underpressure: Wdu 0.01 bar to 90 bar
- Connection
- DIN flange PN 16, PN 40
- Flange according to ANSI 300, ANSI 600 in DN 50/100, DN 80/150, DN 100/200, DN 150/300 (Class 900 on enquiry)
- Accessories: Electronic control (e.g., for pressure and flow); Other regulating tasks according to customers' requirements
Specifications
Electrical Specifications
- Actuator Voltage
- 230V, 50 Hz or 400V, 50 Hz (DN 200 and Larger: only 400V, 50 Hz) voltage alternating current
- Power Supply
- 0.5 to 1.5 kW (depending on size)
Environmental Conditions
- Valve Type
- Electrically-Driven Main Valve
Function Display
- Position Indicator
- Potentiometer 5 kΩ or 0/4 to 20 mA signal
Technical Specifications
- Maximum Inlet Pressure Rating
- 100 bar (DN 250/250 and DN 300/300, 250 bar)
- Connection Type
- Flanged to ANSI 600 RF, ANSI 900 RJ (DN 250/250 and DN 300/300: ANSI 1500 RJ, ANSI 900 RJ)
Standards & Certifications
- Explosion Protection
- E Ex edib II CT4
Applications & Compatibility
- Applications
- Flow and pressure control for natural gas and all non-corrosive gases
I/O Capabilities
- Adjusting Time
- 68 to 620 s (depending on task)
Electrical Specifications
- Actuator Voltage
- 230V, 50 Hz or 400V, 50 Hz (DN 200 and Larger: only 400V, 50 Hz) voltage alternating current
- Power Supply
- 0.5 to 1.5 kW (depending on size)
Environmental Conditions
- Valve Type
- Electrically-Driven Main Valve
Function Display
- Position Indicator
- Potentiometer 5 kΩ or 0/4 to 20 mA signal
Technical Specifications
- Maximum Inlet Pressure Rating
- 100 bar (DN 250/250 and DN 300/300, 250 bar)
- Connection Type
- Flanged to ANSI 600 RF, ANSI 900 RJ (DN 250/250 and DN 300/300: ANSI 1500 RJ, ANSI 900 RJ)
Standards & Certifications
- Explosion Protection
- E Ex edib II CT4
Applications & Compatibility
- Applications
- Flow and pressure control for natural gas and all non-corrosive gases
I/O Capabilities
- Adjusting Time
- 68 to 620 s (depending on task)
- Actuator Voltage : 230V, 50 Hz or 400V, 50 Hz (DN 200 and Larger: only 400V, 50 Hz) voltage alternating current
- Valve Type : Electrically-Driven Main Valve
- Power Supply : 0.5 to 1.5 kW (depending on size)
- Position Indicator : Potentiometer 5 kΩ or 0/4 to 20 mA signal
- Maximum Inlet Pressure Rating : 100 bar (DN 250/250 and DN 300/300, 250 bar)
- Explosion Protection : E Ex edib II CT4
- Connection Type : Flanged to ANSI 600 RF, ANSI 900 RJ (DN 250/250 and DN 300/300: ANSI 1500 RJ, ANSI 900 RJ)
- Applications : Flow and pressure control for natural gas and all non-corrosive gases
- Adjusting Time : 68 to 620 s (depending on task)
