high pressure regulators up to ansi 600

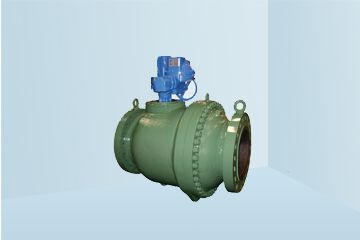

HON 530-E-WG
HON 530-E WG flow control valve with an electric actuator for electronic flow or pressure control in accordance with the DIN EN 334 standard. It is ideal for feeding gas and/or withdrawing gas from storage facilities and important gas mains.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features and Benefits:
- Valve sleeve with full pressure compensation
- Noise reducing devices as a standard feature
- Bubble-tight shut-off
- Axial flow high KG value depending on the pipe size
- In case of a current failure, valve remains in its last position
- Control speeds are frequency-dependent and are set by means of a frequency converter depending on operating conditions
- Suitable for non-aggressive gases, other gases on enquiry
- CE-registration according to PED
- Max. admissible pressure PS: 100 bar
- Max. inlet pressure pu max: up to 100 bar
- Connection: Flange Class 600 and Class 900 according to ANSI 16.5
Specifications
Processing & Performance Metrics
- Maximum Admissible Pressure
- Up to 105 bar
Environmental Conditions
- Maximum Operating Pressure
- Up to 105 bar kilopascal
- Temperature Range
- -20 to +60 deg C
Electrical Specifications
- Drive Power Consumption
- 0.56 kW
- Drive Power Supply
- 400 V, 3-phase AC, 50 Hz (other frequencies on request)
- Control Type
- 3-Step Control (ccw/OFF/cw)
- Frequency-dependent speeds possible
Standards & Certifications
- Explosion Protection
- Electronic accessories: ATEX compliant
- Mechanical components: No ignition sources/hot faces (not subject to ATEX 95)
Technical Specifications
- Connection Type
- Flange Class 600 acc. to ANSI 16.5
Material Specifications
- Air Inlet Sizes
- Cast steel
Applications & Compatibility
- Applications
- Bi-directional operation
- Feeding/withdrawing gas from storage facilities and mains
- Flow-rate/gas-pressure control
- Suitable for gases per DVGW G 260 and neutral, non-aggressive gases (others on request)
Processing & Performance Metrics
- Maximum Admissible Pressure
- Up to 105 bar
Environmental Conditions
- Maximum Operating Pressure
- Up to 105 bar kilopascal
- Temperature Range
- -20 to +60 deg C
Electrical Specifications
- Drive Power Consumption
- 0.56 kW
- Drive Power Supply
- 400 V, 3-phase AC, 50 Hz (other frequencies on request)
- Control Type
- 3-Step Control (ccw/OFF/cw)
- Frequency-dependent speeds possible
Standards & Certifications
- Explosion Protection
- Electronic accessories: ATEX compliant
- Mechanical components: No ignition sources/hot faces (not subject to ATEX 95)
Technical Specifications
- Connection Type
- Flange Class 600 acc. to ANSI 16.5
Material Specifications
- Air Inlet Sizes
- Cast steel
Applications & Compatibility
- Applications
- Bi-directional operation
- Feeding/withdrawing gas from storage facilities and mains
- Flow-rate/gas-pressure control
- Suitable for gases per DVGW G 260 and neutral, non-aggressive gases (others on request)
- Maximum Admissible Pressure : Up to 105 bar
- Maximum Operating Pressure : Up to 105 bar kilopascal
- Drive Power Consumption : 0.56 kW
- Explosion Protection : Electronic accessories: ATEX compliant|Mechanical components: No ignition sources/hot faces (not subject to ATEX 95)
- Drive Power Supply : 400 V, 3-phase AC, 50 Hz (other frequencies on request)
- Temperature Range : -20 to +60 deg C
- Connection Type : Flange Class 600 acc. to ANSI 16.5
- Air Inlet Sizes : Cast steel
- Control Type : 3-Step Control (ccw/OFF/cw)|Frequency-dependent speeds possible
- Applications : Bi-directional operation|Feeding/withdrawing gas from storage facilities and mains|Flow-rate/gas-pressure control|Suitable for gases per DVGW G 260 and neutral, non-aggressive gases (others on request)
