high pressure regulators up to ansi 600
HONR 100

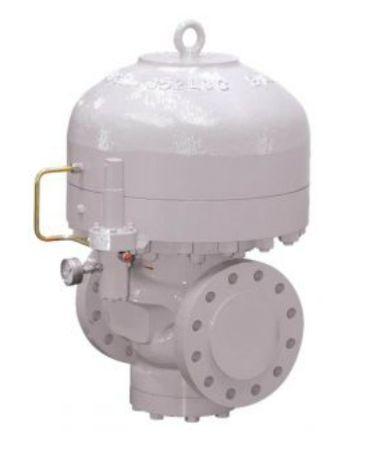

HON R100 a globe type gas pressure regulator with excellent regulating dynamics built to DIN EN 334 standards. It is ideal for usage in gas turbines, transfer stations in gas transport networks for power plants and industrial facilities.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features and Benefits:
- High pressure gas regulator
- Outlet pressure 1-95 bar
- Diameter 25-400 mm/1-16″
- Pressure class PN16-420/ANSI 150-2500#
- Suitable for temperatures from -20 °C to 60 °C
- Built-in noise reduction
- Easy to maintain without dismounting
- Available as HON100NG with improved regulating accuracy and reduced number of parts and weight
Specifications
Processing & Performance Metrics
- Accuracy Class (AC)
- 1.0 to 3.0 bar: AC5/SG10, 3.0 to 60 bar: AC1/SG2.5
Material Specifications
- Valve Body
- A352-LCC(QT)
Environmental Conditions
- Temperature Range
- -20 to +60 deg C, Class 2
- Outlet Pressure Range
- 1.0 up to 60 bar
- Maximum Operating Pressure
- 100 bar kilopascal
Technical Specifications
- Suitable Media
- Sweet Natural Gas (other gases on request)
- Connection Type
- Flanges in the Dimension ANSI 150, 300 or ANSI 600
Electrical Specifications
- Nominal Sizes
- DN25 to DN 400
Mechanical & Physical Properties
- Lock-up Pressure Zone Class
- SZ 2.5
Standards & Certifications
- Approvals
- CE Mark with PED
Applications & Compatibility
- Applications
- Offtake stations in gas transmission systems, gas supply to industrial and power plants
Processing & Performance Metrics
- Accuracy Class (AC)
- 1.0 to 3.0 bar: AC5/SG10, 3.0 to 60 bar: AC1/SG2.5
Material Specifications
- Valve Body
- A352-LCC(QT)
Environmental Conditions
- Temperature Range
- -20 to +60 deg C, Class 2
- Outlet Pressure Range
- 1.0 up to 60 bar
- Maximum Operating Pressure
- 100 bar kilopascal
Technical Specifications
- Suitable Media
- Sweet Natural Gas (other gases on request)
- Connection Type
- Flanges in the Dimension ANSI 150, 300 or ANSI 600
Electrical Specifications
- Nominal Sizes
- DN25 to DN 400
Mechanical & Physical Properties
- Lock-up Pressure Zone Class
- SZ 2.5
Standards & Certifications
- Approvals
- CE Mark with PED
Applications & Compatibility
- Applications
- Offtake stations in gas transmission systems, gas supply to industrial and power plants
- Accuracy Class (AC) : 1.0 to 3.0 bar: AC5/SG10, 3.0 to 60 bar: AC1/SG2.5
- Valve Body : A352-LCC(QT)
- Temperature Range : -20 to +60 deg C, Class 2
- Suitable Media : Sweet Natural Gas (other gases on request)
- Outlet Pressure Range : 1.0 up to 60 bar
- Nominal Sizes : DN25 to DN 400
- Maximum Operating Pressure : 100 bar kilopascal
- Lock-up Pressure Zone Class : SZ 2.5
- Connection Type : Flanges in the Dimension ANSI 150, 300 or ANSI 600
- Approvals : CE Mark with PED
- Applications : Offtake stations in gas transmission systems, gas supply to industrial and power plants
Brochure
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
R100SMRF
SERIES R100S-M RF
R100SMRF
SERIES R100S-M RF
R100SMRFN
SERIES R100S-M RF NACE
R100SMRFN
SERIES R100S-M RF NACE
R100SMRTJ
SERIES R100S-M RTJ
R100SMRTJ
SERIES R100S-M RTJ
R100SMRTJN
SERIES R100S-M RTJ NACE
R100SMRTJN
SERIES R100S-M RTJ NACE
R100SMSORF
SERIES R100S-M-SO RF
R100SMSORF
SERIES R100S-M-SO RF
R100SMSORFN
SERIES R100S-M-SO RF NACE
R100SMSORFN
SERIES R100S-M-SO RF NACE
R100SMSORTJ
SERIES R100S-M-SO RTJ
R100SMSORTJ
SERIES R100S-M-SO RTJ
R100SMSORTJN
SERIES R100S-M-SO RTJ NACE
R100SMSORTJN
SERIES R100S-M-SO RTJ NACE
R100SRF
SERIES R100S RF
R100SRF
SERIES R100S RF
R100SRFN
SERIES R100S RF NACE
R100SRFN
SERIES R100S RF NACE
