High Pressure Regulators up to PN40 (ANSI 300)

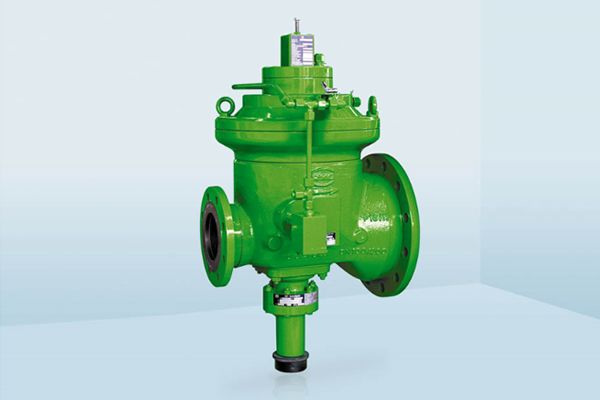

HON 402

HON 402 pilot-operated gas pressure regulator available with a safety shut-off valve (SSV) that is ideal for applications involving a large inlet pressure range. The regulator is ideal for deployment at offtake stations in gas transmission centers

Overview
Features and Benefits:
  • Large inlet pressure range
  • With inline pilot HON 620 or pilot Series HON 630 (externally)
  • HON630-1 (formerly HON 640), single stage type for inlet pressure variation <15 bar
  • Also available with Safety Shut-off Valve (SSV)
  • DN 25 (PN 16): actuator system K 1a, K 2a
  • DN 50 thru DN 100 (inlet pipe sizes): K 10a, K 16, K 17 (thru Class 300); K10a, K 16, K 17 (thru Class 300)
  • SSV setting range: Wdo 40 mbar to 40 bar; Wdu 5 mbar to 40 bar
  • Fewer parts, easy to maintain, and quiet operation
  • Noise reduction can be retrofitted
  • Suitable for non-aggressive gases, other gases on enquiry
  • CE registration according to PED
  • Max. admissible pressure PS= 50 bar
  • Max. inlet pressure pu max: up to 50 bar
  • Outlet pressure range Wd: 20 mbar to 40 bar
  • Minimum pressuredrop: 0.5bar, others on enquiry
  • Class of lock-up pressure zone: SZ 2.5
  • Flange connection (optional): Output DN = Input DN
  • DN 25: DIN flange PN 16, PN 25, Class 150 according to ANSI 16.5; Output DN = 2 x Input DN
  • DN 50 thru DN 100: DIN flange PN 16, PN 25, PN 40 and Flange Class 150 and Class 300 according to ANSI 16.5
All mechanical components of this device are without potential ignition sourcesand/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
