HON HSV086

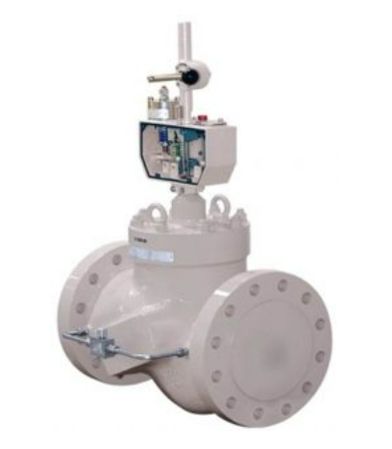

HON HSV086 is a pilot operated globe type safety shut-off valve (SSV) according to DIN EN 14382.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features and Benefits:
- Safety shut-off valve
- Pressure range 0-180 bar (under or overpressure)
- Diameter 25-500 mm/1-20″
- Pressure class PN16-420/ANSI 150-2500#
- Suitable for temperatures from -20 °C to 60 °C
- Optional with limit switches/solenoid
- Globe type design; valve body remains in line during maintenance
- Seat ring is easy to inspect
- Long maintenance interval due to the erosion free enclosure of the seat ring
- Bubble-tight even at low temperatures
Specifications
Applications & Compatibility
- Applications
- Gas pressure regulating stations, Natural gas (DVGW G 260) and other gases on request
Technical Specifications
- Underpressure Set Range
- 0.7 to 10 ba
- Pressure Classes
- ANSI 300 and ANSI 600, Other pressure classes up to ANSI 2500 are available
- Overpressure Set Range
- 3-49.5 bar ANSI 300, 3-95 bar ANSI 600
Environmental Conditions
- Temperature Range
- -20 to +60 deg C (Class 2)
- Maximum Operating Pressure
- 50 bar ANSI 300, 100 bar ANSI 600 kilopascal
Electrical Specifications
- Nominal Widths
- DN 25 to 500
Material Specifications
- Body Material
- A352-LCC(QT) or Equal, 1 in/DN25: S355 or Equal
Standards & Certifications
- Approvals
- CE Mark with PED
Applications & Compatibility
- Applications
- Gas pressure regulating stations, Natural gas (DVGW G 260) and other gases on request
Technical Specifications
- Underpressure Set Range
- 0.7 to 10 ba
- Pressure Classes
- ANSI 300 and ANSI 600, Other pressure classes up to ANSI 2500 are available
- Overpressure Set Range
- 3-49.5 bar ANSI 300, 3-95 bar ANSI 600
Environmental Conditions
- Temperature Range
- -20 to +60 deg C (Class 2)
- Maximum Operating Pressure
- 50 bar ANSI 300, 100 bar ANSI 600 kilopascal
Electrical Specifications
- Nominal Widths
- DN 25 to 500
Material Specifications
- Body Material
- A352-LCC(QT) or Equal, 1 in/DN25: S355 or Equal
Standards & Certifications
- Approvals
- CE Mark with PED
- Applications : Gas pressure regulating stations, Natural gas (DVGW G 260) and other gases on request
- Underpressure Set Range : 0.7 to 10 ba
- Temperature Range : -20 to +60 deg C (Class 2)
- Pressure Classes : ANSI 300 and ANSI 600, Other pressure classes up to ANSI 2500 are available
- Overpressure Set Range : 3-49.5 bar ANSI 300, 3-95 bar ANSI 600
- Nominal Widths : DN 25 to 500
- Maximum Operating Pressure : 50 bar ANSI 300, 100 bar ANSI 600 kilopascal
- Body Material : A352-LCC(QT) or Equal, 1 in/DN25: S355 or Equal
- Approvals : CE Mark with PED
