Ultrasonic Meters

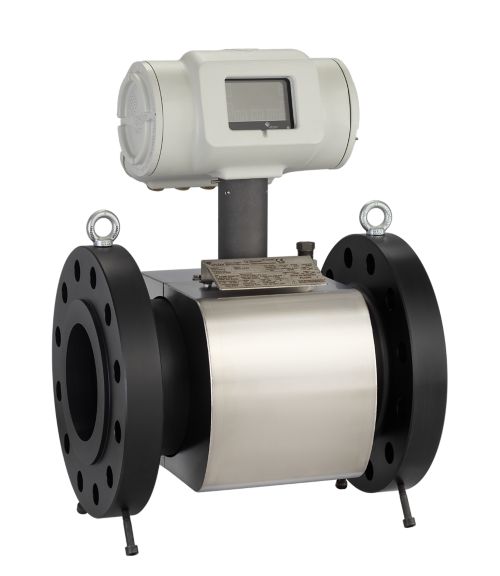

Q.Sonic-max6 Ultrasonic Gas Meter
The Q. Sonic-max6 is a six-path ultrasonic gas flow meter designed for operators who need accurate, reliable custody transfer in complex pipeline environments.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The new ultrasonic gas flow meter Q. Sonic-max6 was built to extend the application range from Gas Transmission to Gas Distribution to serve a wide range of natural gas compositions.
The robust design ensures consistent performance - even with special gas compositions, fluctuating pressures, and complex installation conditions - helping operators maintain confidence, compliance, and efficiency across a wide range of applications.
Why Q.Sonic-max6?
Q.Sonic-max6 helps streamline measurement and compliance tasks, even in challenging pipeline conditions. Reduce manual interventions and improve reliability with a solution built for today’s natural Gas operations.
The robust design ensures consistent performance - even with special gas compositions, fluctuating pressures, and complex installation conditions - helping operators maintain confidence, compliance, and efficiency across a wide range of applications.
Why Q.Sonic-max6?
- Engineered for Versatility - Optimized for a wide range of operating pressures, process conditions, and special gas mixtures, making it ideal for diverse pipeline environments.
- Standardized Offering - Available in sizes from 3" to 24" and pressure ratings ANSI #150 to #900, the standardized design helps cut lead times —accelerating project timelines.
- Intuitive Operation & Remote Access - A simple, user-friendly interface allows for easy configuration, diagnostics, and monitoring—locally or remotely.
- Wider Operating Range - Handles a broader spectrum of gas mixtures and pressure ranges, making it ideal for diverse and evolving pipeline applications. This includes up to 30% Hydrogen measurement as per PTB non-objection statement
- Robust Performance - Its wider operating range allows it to adapt to diverse process conditions like fluctuating operating pressures without sacrificing performance.
- Advanced Diagnostics & Flow Profile Recognition - Continuously monitors flow dynamics to maintain consistent measurement accuracy across all operating conditions.
- Cybersecurity by Design Compliant with ANSI/ISA-62443-4-1-2018 and IEC 62443-4-1:2018, featuring:
- Transport Layer Security (TLS)
- Encrypted parameterization data
- Segregated sensitive data protection
- Pipeline operators needing reliable custody transfer under variable conditions
- Measurement engineers seeking reduced uncertainty and better diagnostics
- Compliance managers focused on meeting international standards
- Metering Operations Manager ensuring resilient operation within metrological compliance
- Custody transfer of natural gas
- Complex pipeline installations
- Facilities with variable gas compositions
- High-pressure and high-temperature environments
Q.Sonic-max6 helps streamline measurement and compliance tasks, even in challenging pipeline conditions. Reduce manual interventions and improve reliability with a solution built for today’s natural Gas operations.
