HERMetic Samplers for Restricted Operations
HERMetic Samplers are dedicated to applications where restricted sampling is authorized. The samplers are used for crude oil sampling on tankers and very large crude carriers (VLCCs).
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
What Is It?

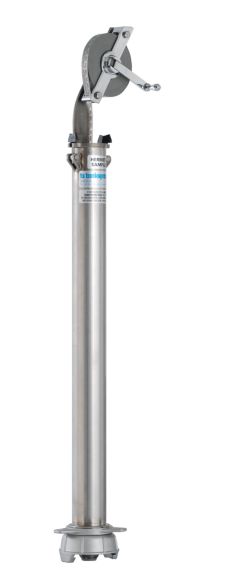

HERMetic Sampler A-2: Its key features include:
The sampler housing is mounted on top of the HERMetic 2” ball valve or a 4” deck valve, depending on the type of sampler model. The sample is taken through the vertical movement of the sampling bottle inside the liquid. The bottle is linked to a graduated tape. A reading window allows users to monitor the bottle location.
What Problems Does It Solve?
Honeywell’s samplers for restricted operation offer easy installation, low costs and clean operation during sampling. It permits taking a representative sample of the content inside the tank for further analysis in a laboratory.
HERMetic Sampler A-2: Its key features include:
- Used for connection on 2-inch HERMetic compact valves
- For applications involving liquids with low or high viscosity
- Ideal for use under open operations
- Easy installation on 2-inch vapor control valves with quick connect coupling
- Sampling height can be measured on the graduated tape
- Sampling bottle can be easily removed and exchanged
- Delivered with a zone sampling bottle—spot, running and bottom sampling bottles are also available on request.
- Used for large volume sampling of up to 1.8 liters under open operations

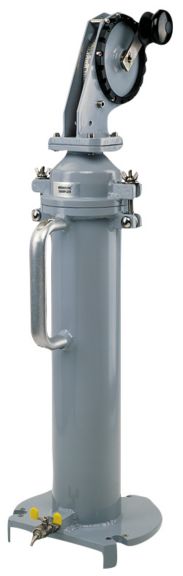

- Easy installation on a 4-inch deck valve
- Sampling height can be read on the graduated tape
- Sampling bottle can be easily removed and exchanged
- Delivered with a zone sampling bottle; spot, running and bottom sampling bottles also available.
The sampler housing is mounted on top of the HERMetic 2” ball valve or a 4” deck valve, depending on the type of sampler model. The sample is taken through the vertical movement of the sampling bottle inside the liquid. The bottle is linked to a graduated tape. A reading window allows users to monitor the bottle location.
What Problems Does It Solve?
Honeywell’s samplers for restricted operation offer easy installation, low costs and clean operation during sampling. It permits taking a representative sample of the content inside the tank for further analysis in a laboratory.
Specifications
Standards & Certifications
- Hazardous Location Approvals
- A-2: ATEX II 1 G c IIB T6 (Zone 0), A-4: ATEX II 1 G c IIB T6 (Zone 0)
- Compliance Standards
- A-2: IMO, SOLAS, MARPOL, API, ISO, OCIMF Standards, A-4: IMO, SOLAS, MARPOL, API, ISO, OCIMF Standards
I/O Capabilities
- Sampling Principle
- A-2: For use where restricted sampling is accepted
- Connects to 2 in HERMetic vapor control valves, A-4: For use where restricted sampling is accepted
- Connects to 4 in HERMetic deck valve
- Sampling Capacity
- A-2: Zone sampling bottle: ~0.5 liters (spot, running, and bottom bottles available), A-4: Approx. 1.8 liters (zone, spot, running, and bottom bottles available)
Overview
- Special Features
- A-2: Multiple Bottle Types (Zone, Spot, Running, Bottom); Robust Construction Millimeter-PRD
- A-4: Large Volume Sampling, Robust Construction, Multiple Bottle Types Millimeter-PRD
Environmental Conditions
- Type of Gaskets
- FKM (A-2)
Applications & Compatibility
- Typical Uses
- A-2: Custody Transfer, Inventory Control, Quality Control, Pollution Prevention on Tankers, A-4: Custody Transfer, Inventory Control, Quality Control, Pollution Prevention
- Applications
- A-2: Restricted sampling of liquids on marine vessels, A-4: Restricted sampling where more than 0.5 liters is needed
Dimensions & Weight
- Unit Height
- A-2: 802 mm, A-4: 770 mm
Network & Connectivity Infrastructure
- Tape Length
- A-2: 30 m (100 ft), A-4: 30 m (100 ft)
- On request: 40 m tape length
Material Specifications
- Materials
- A-2: Stainless Steel AISI 316, Brass, PTFE, PVDF, A-4: AISI 316 Stainless Steel, Rilsan Coated Aluminum
Standards & Certifications
- Hazardous Location Approvals
- A-2: ATEX II 1 G c IIB T6 (Zone 0), A-4: ATEX II 1 G c IIB T6 (Zone 0)
- Compliance Standards
- A-2: IMO, SOLAS, MARPOL, API, ISO, OCIMF Standards, A-4: IMO, SOLAS, MARPOL, API, ISO, OCIMF Standards
I/O Capabilities
- Sampling Principle
- A-2: For use where restricted sampling is accepted
- Connects to 2 in HERMetic vapor control valves, A-4: For use where restricted sampling is accepted
- Connects to 4 in HERMetic deck valve
- Sampling Capacity
- A-2: Zone sampling bottle: ~0.5 liters (spot, running, and bottom bottles available), A-4: Approx. 1.8 liters (zone, spot, running, and bottom bottles available)
Overview
- Special Features
- A-2: Multiple Bottle Types (Zone, Spot, Running, Bottom); Robust Construction Millimeter-PRD
- A-4: Large Volume Sampling, Robust Construction, Multiple Bottle Types Millimeter-PRD
Environmental Conditions
- Type of Gaskets
- FKM (A-2)
Applications & Compatibility
- Typical Uses
- A-2: Custody Transfer, Inventory Control, Quality Control, Pollution Prevention on Tankers, A-4: Custody Transfer, Inventory Control, Quality Control, Pollution Prevention
- Applications
- A-2: Restricted sampling of liquids on marine vessels, A-4: Restricted sampling where more than 0.5 liters is needed
Dimensions & Weight
- Unit Height
- A-2: 802 mm, A-4: 770 mm
Network & Connectivity Infrastructure
- Tape Length
- A-2: 30 m (100 ft), A-4: 30 m (100 ft)
- On request: 40 m tape length
Material Specifications
- Materials
- A-2: Stainless Steel AISI 316, Brass, PTFE, PVDF, A-4: AISI 316 Stainless Steel, Rilsan Coated Aluminum
- Hazardous Location Approvals : A-2: ATEX II 1 G c IIB T6 (Zone 0), A-4: ATEX II 1 G c IIB T6 (Zone 0)
- Compliance Standards : A-2: IMO, SOLAS, MARPOL, API, ISO, OCIMF Standards, A-4: IMO, SOLAS, MARPOL, API, ISO, OCIMF Standards
- Sampling Principle : A-2: For use where restricted sampling is accepted|Connects to 2 in HERMetic vapor control valves, A-4: For use where restricted sampling is accepted|Connects to 4 in HERMetic deck valve
- Sampling Capacity : A-2: Zone sampling bottle: ~0.5 liters (spot, running, and bottom bottles available), A-4: Approx. 1.8 liters (zone, spot, running, and bottom bottles available)
- Special Features : A-2: Multiple Bottle Types (Zone, Spot, Running, Bottom); Robust Construction Millimeter-PRD|A-4: Large Volume Sampling, Robust Construction, Multiple Bottle Types Millimeter-PRD
- Type of Gaskets : FKM (A-2)
- Typical Uses : A-2: Custody Transfer, Inventory Control, Quality Control, Pollution Prevention on Tankers, A-4: Custody Transfer, Inventory Control, Quality Control, Pollution Prevention
- Applications : A-2: Restricted sampling of liquids on marine vessels, A-4: Restricted sampling where more than 0.5 liters is needed
- Unit Height : A-2: 802 mm, A-4: 770 mm
- Tape Length : A-2: 30 m (100 ft), A-4: 30 m (100 ft)|On request: 40 m tape length
- Materials : A-2: Stainless Steel AISI 316, Brass, PTFE, PVDF, A-4: AISI 316 Stainless Steel, Rilsan Coated Aluminum
Brochure
Name
Description
File Size
Date
