Overview
Honeywell’s Enraf® temperature gauging systems offer reliability, high measurement accuracy, minimal maintenance cost and easy installation for all types of liquid bulk terminals and storage facilities.
What is It?
Honeywell’s Enraf® Tank Temperature Measurement portfolio ranges from single spot temperature probes to the advanced VITO Multiple Thermosensor Thermometers (MTT) for accurate temperature measurement. If required a water level probe can be integrated measuring the water level accurately at the bottom of the tank.
The VITO interface guarantees faultless communication with level gauges based on radar or servo technology.
Interfacing the tank gauge with the temperature measurement and even water level measurement reduces costs for wiring and installation.
How Does It Work?
Honeywell offers several types of temperature measurement instruments:
Spot Temperature Measurement is performed by probes directly connected to a level gauge and mounted at any desired location in the tank
Average Temperature Measurement is made possible by the VITO MRT which consists of multiple resistor elements, each with a different length. Depending on the liquid level measured by the level gauge, the longest element which is completely submerged in the liquid is selected to represent the average temperature of the stored product
Multiple Temperature Measurement is performed by the VITO LT which measures average product temperature and average gas temperature with a nine-element probe, while the VITO MTT goes a step further with a 16-element probe.
What Problems Does it Solve?
Honeywell's temperature measurement portfolio exceeds the requirements of all in-tank measurement standards. The top end temperature gauging systems – VITO LT and VITO MTT - are suitable for custody transfer purposes in conformity with weights and measures regulations. In addition, the VITO MTT is fit for LNG storage
What is It?
Honeywell’s Enraf® Tank Temperature Measurement portfolio ranges from single spot temperature probes to the advanced VITO Multiple Thermosensor Thermometers (MTT) for accurate temperature measurement. If required a water level probe can be integrated measuring the water level accurately at the bottom of the tank.
The VITO interface guarantees faultless communication with level gauges based on radar or servo technology.
Interfacing the tank gauge with the temperature measurement and even water level measurement reduces costs for wiring and installation.
How Does It Work?
Honeywell offers several types of temperature measurement instruments:
Spot Temperature Measurement is performed by probes directly connected to a level gauge and mounted at any desired location in the tank
Average Temperature Measurement is made possible by the VITO MRT which consists of multiple resistor elements, each with a different length. Depending on the liquid level measured by the level gauge, the longest element which is completely submerged in the liquid is selected to represent the average temperature of the stored product
Multiple Temperature Measurement is performed by the VITO LT which measures average product temperature and average gas temperature with a nine-element probe, while the VITO MTT goes a step further with a 16-element probe.
What Problems Does it Solve?
Honeywell's temperature measurement portfolio exceeds the requirements of all in-tank measurement standards. The top end temperature gauging systems – VITO LT and VITO MTT - are suitable for custody transfer purposes in conformity with weights and measures regulations. In addition, the VITO MTT is fit for LNG storage
Specifications
Environmental Safety
- Ambient Temperature Range
- -40 to +60 deg C (-40 to +140 deg F)
- Storage Temperature Range
- LT/ MTT Probe: -55 to +135 deg C (-67 to +275 deg F)
- MPT Probe: -50 to +120 deg C
- Safety Approvals
- LT/MTT Probe/ Interface Card: ATEX KEMA, IECEx, Kosha, FM, CSA , INMETRO TÜV
- MPT Probe : EN IEC 60079-11, clause 5.7
- Operating Pressure
- LT/MTT Probe: 5 bar/500 kPa (72 psi) Hydrostatic pressure
- MPT Probe: 6 bar/600 kPa (90 psi) hydrostatic pressure
Mechanical
- Sheath Material
- AISI 316L Stainless Steel
- Probe Outer Diameter
- With Water Sensing - 40 mm (1.57 in)
- Without Water Sensing - LT Probe 27 mm (1.06 in), MPT Probe 28.6 mm (1.2 in)
- Mounting Flange
- Optional, 1/2 BSP threaded mounting hole required
- Cable Entries
- M20 x 1.5, 3/4 in NPT via reducer and PG16 via reducer
- Anchor Weight
- Optional, max. 23 kg (50 lb)
Water Sensing-Optional
- Sensor Type
- PTFE sheathed capacitive probe
- Minimum Water Level
- 25 mm (0.98 in)
Measuring Specifications
- Probe Temperature Range
- LT/ MTT Probe: -55 to +135 deg C (-67 to +275 deg F)
- MPT Probe: -50 to +120 deg C
- Probe Accuracy
- 1/10 DIN Class B = ± (0.12+0.0015·
- t
- ) deg C
- LT/ MTT Probe: ±0.1 deg C (±0.18 deg F)
- MPT Probe: 1/6 DIN Class B = ± (0.15+0.002·
- t
- ) deg C
- Measuring Resolution
- 0.01 deg C
- Measuring Range
- ±2 mm (0.078 in)
Principle
- Number of Elements
- LT Probe: 9 elements
- MTT Probe: 16 elements

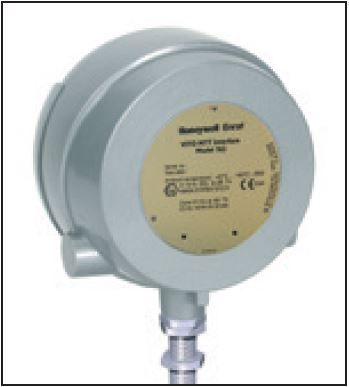

VITO Interface
- Mounting
- Direct on VITO probes using standard 1/2 in BSP entry
- Housing
- Chromatized, Polyurethane coated Aluminum, GD-AISi10Mg
- Data Communication
- HART® Communication to Tank Gauging ATG
- Application
- An electronic converter used in combination with the VITO probes
General
- Measuring Principle
- Cold junction compensated thermocouples (type T) to measure the temperature differentials with respect to a 4 wire 1/5 DIN Class A Pt100 reference resistor, physically embedded to cold junction
Explosion Safety & Legal Metrology Approvals
- Ingress Protection
- IP66/IP67
Environmental Safety
- Ambient Temperature Range
- -40 to +60 deg C (-40 to +140 deg F)
- Storage Temperature Range
- LT/ MTT Probe: -55 to +135 deg C (-67 to +275 deg F)
- MPT Probe: -50 to +120 deg C
- Safety Approvals
- LT/MTT Probe/ Interface Card: ATEX KEMA, IECEx, Kosha, FM, CSA , INMETRO TÜV
- MPT Probe : EN IEC 60079-11, clause 5.7
- Operating Pressure
- LT/MTT Probe: 5 bar/500 kPa (72 psi) Hydrostatic pressure
- MPT Probe: 6 bar/600 kPa (90 psi) hydrostatic pressure
Mechanical
- Sheath Material
- AISI 316L Stainless Steel
- Probe Outer Diameter
- With Water Sensing - 40 mm (1.57 in)
- Without Water Sensing - LT Probe 27 mm (1.06 in), MPT Probe 28.6 mm (1.2 in)
- Mounting Flange
- Optional, 1/2 BSP threaded mounting hole required
- Cable Entries
- M20 x 1.5, 3/4 in NPT via reducer and PG16 via reducer
- Anchor Weight
- Optional, max. 23 kg (50 lb)
Water Sensing-Optional
- Sensor Type
- PTFE sheathed capacitive probe
- Minimum Water Level
- 25 mm (0.98 in)
Measuring Specifications
- Probe Temperature Range
- LT/ MTT Probe: -55 to +135 deg C (-67 to +275 deg F)
- MPT Probe: -50 to +120 deg C
- Probe Accuracy
- 1/10 DIN Class B = ± (0.12+0.0015·
- t
- ) deg C
- LT/ MTT Probe: ±0.1 deg C (±0.18 deg F)
- MPT Probe: 1/6 DIN Class B = ± (0.15+0.002·
- t
- ) deg C
- Measuring Resolution
- 0.01 deg C
- Measuring Range
- ±2 mm (0.078 in)
Principle
- Number of Elements
- LT Probe: 9 elements
- MTT Probe: 16 elements
VITO Interface
- Mounting
- Direct on VITO probes using standard 1/2 in BSP entry
- Housing
- Chromatized, Polyurethane coated Aluminum, GD-AISi10Mg
- Data Communication
- HART® Communication to Tank Gauging ATG
- Application
- An electronic converter used in combination with the VITO probes
General
- Measuring Principle
- Cold junction compensated thermocouples (type T) to measure the temperature differentials with respect to a 4 wire 1/5 DIN Class A Pt100 reference resistor, physically embedded to cold junction
Explosion Safety & Legal Metrology Approvals
- Ingress Protection
- IP66/IP67
- Ambient Temperature Range : -40 to +60 deg C (-40 to +140 deg F)
- Storage Temperature Range : LT/ MTT Probe: -55 to +135 deg C (-67 to +275 deg F)|MPT Probe: -50 to +120 deg C
- Sheath Material : AISI 316L Stainless Steel
- Sensor Type : PTFE sheathed capacitive probe
- Safety Approvals : LT/MTT Probe/ Interface Card: ATEX KEMA, IECEx, Kosha, FM, CSA , INMETRO TÜV|MPT Probe : EN IEC 60079-11, clause 5.7
- Probe Temperature Range : LT/ MTT Probe: -55 to +135 deg C (-67 to +275 deg F)|MPT Probe: -50 to +120 deg C
- Probe Outer Diameter : With Water Sensing - 40 mm (1.57 in)|Without Water Sensing - LT Probe 27 mm (1.06 in), MPT Probe 28.6 mm (1.2 in)
- Probe Accuracy : 1/10 DIN Class B = ± (0.12+0.0015·|t|) deg C|LT/ MTT Probe: ±0.1 deg C (±0.18 deg F)|MPT Probe: 1/6 DIN Class B = ± (0.15+0.002·|t|) deg C
- Operating Pressure : LT/MTT Probe: 5 bar/500 kPa (72 psi) Hydrostatic pressure|MPT Probe: 6 bar/600 kPa (90 psi) hydrostatic pressure
- Number of Elements : LT Probe: 9 elements|MTT Probe: 16 elements
- Mounting Flange : Optional, 1/2 BSP threaded mounting hole required
- Mounting : Direct on VITO probes using standard 1/2 in BSP entry
- Minimum Water Level : 25 mm (0.98 in)
- Measuring Resolution : 0.01 deg C
- Measuring Range : ±2 mm (0.078 in)
- Measuring Principle : Cold junction compensated thermocouples (type T) to measure the temperature differentials with respect to a 4 wire 1/5 DIN Class A Pt100 reference resistor, physically embedded to cold junction
- Ingress Protection : IP66/IP67
- Housing : Chromatized, Polyurethane coated Aluminum, GD-AISi10Mg
- Data Communication : HART® Communication to Tank Gauging ATG
- Cable Entries : M20 x 1.5, 3/4 in NPT via reducer and PG16 via reducer
- Application : An electronic converter used in combination with the VITO probes
- Anchor Weight : Optional, max. 23 kg (50 lb)
