HERMetic Sampler GT4 - Land Applications

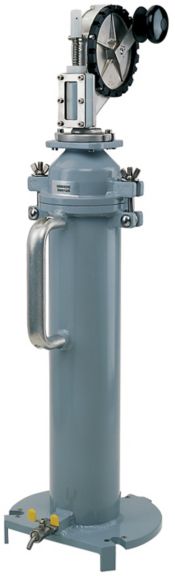

Honeywell Tanksystem's HERMetic Sampler GT4 is a 4-inch portable large volume sampler with a sampling capacity of approximately 1.8 litre. It is ideal for gas tight sampling of liquids that present a fire, health, or air pollution hazard.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
What Is It?
The HERMetic Sampler GT4 is ideal for sampling of liquids under closed conditions where more than 0.5 litre of liquid is needed from onshore tanks in refineries and terminals. lts gas tight construction avoids any vapor release from the tank and exposure to fumes during operation.
The sampler housing is mounted on top of the HERMetic 4-inch deck valve. Transfer of the liquid from the sampling bottle to a laboratory bottle occurs by opening the transfer valve at the bottom of the sampler. The HERMetic Sampler GT4 is delivered with a zone sampling bottle. Spot, bottom and running bottles are available on request.
How Does It Work?
The HERMetic Sampler GT4 allows easy installation on the deck valve. The sampling height can be read on the graduated tape, while the sampling bottle can be easily removed by opening the top of the sampler housing.
The sampler carries the KEMA 06ATEX0027 (II 1 G c IIB T6) construction safety approval and complies with the European Union’s Directive 94/9 EC. It also complies with a host of regulations, including API (MPMS Chap 17.11).
Technical specifications include:
The HERMetic Sampler GT4 ensures closed gas tight sampling of liquids that pose a fire, health or air pollution hazard. It permits collection of a representative sample of the content inside the tanks for further laboratory analysis. In addition to safer operations, users benefit from lower operation and maintenance costs.
The HERMetic Sampler GT4 is ideal for sampling of liquids under closed conditions where more than 0.5 litre of liquid is needed from onshore tanks in refineries and terminals. lts gas tight construction avoids any vapor release from the tank and exposure to fumes during operation.
The sampler housing is mounted on top of the HERMetic 4-inch deck valve. Transfer of the liquid from the sampling bottle to a laboratory bottle occurs by opening the transfer valve at the bottom of the sampler. The HERMetic Sampler GT4 is delivered with a zone sampling bottle. Spot, bottom and running bottles are available on request.
How Does It Work?
The HERMetic Sampler GT4 allows easy installation on the deck valve. The sampling height can be read on the graduated tape, while the sampling bottle can be easily removed by opening the top of the sampler housing.
The sampler carries the KEMA 06ATEX0027 (II 1 G c IIB T6) construction safety approval and complies with the European Union’s Directive 94/9 EC. It also complies with a host of regulations, including API (MPMS Chap 17.11).
Technical specifications include:
- Tape length: 30 m/ 100 ft
- On request: 50 m tape length
- Capacity of sampling bottles: up to 1.8 litre
The HERMetic Sampler GT4 ensures closed gas tight sampling of liquids that pose a fire, health or air pollution hazard. It permits collection of a representative sample of the content inside the tanks for further laboratory analysis. In addition to safer operations, users benefit from lower operation and maintenance costs.
Specifications
Standards & Certifications
- Hazardous Location Approvals
- ATEX II 1 G c IIB T6
Dimensions & Weight
- Unit Height
- 770 mm
Functional & Control Features
- Sampling Methods
- Closed sampling
- Sample taken by vertical movement of bottle inside liquid
- Sampler housing mounted on top of 4-in deck valve
Mechanical & Physical Properties
- Sampling Height Measurement
- Via graduated tape and viewing window
I/O Capabilities
- Sampling Bottle Capacity
- Approx. 1.8 liters
Processing & Performance Metrics
- Sample Transfer
- Liquid transferred from sampling bottle to laboratory bottle by opening transfer valve at bottom
- Pump can be connected to accelerate transfer
Pressure/Operating Limits
- Maximum Tank Overpressure
- 0.3 bar
Material Specifications
- Materials
- AISI 316 Stainless Steel, Rilsan Coated Aluminum (full stainless steel on request)
Standards & Certifications
- Hazardous Location Approvals
- ATEX II 1 G c IIB T6
Dimensions & Weight
- Unit Height
- 770 mm
Functional & Control Features
- Sampling Methods
- Closed sampling
- Sample taken by vertical movement of bottle inside liquid
- Sampler housing mounted on top of 4-in deck valve
Mechanical & Physical Properties
- Sampling Height Measurement
- Via graduated tape and viewing window
I/O Capabilities
- Sampling Bottle Capacity
- Approx. 1.8 liters
Processing & Performance Metrics
- Sample Transfer
- Liquid transferred from sampling bottle to laboratory bottle by opening transfer valve at bottom
- Pump can be connected to accelerate transfer
Pressure/Operating Limits
- Maximum Tank Overpressure
- 0.3 bar
Material Specifications
- Materials
- AISI 316 Stainless Steel, Rilsan Coated Aluminum (full stainless steel on request)
- Hazardous Location Approvals : ATEX II 1 G c IIB T6
- Unit Height : 770 mm
- Sampling Methods : Closed sampling|Sample taken by vertical movement of bottle inside liquid|Sampler housing mounted on top of 4-in deck valve
- Sampling Height Measurement : Via graduated tape and viewing window
- Sampling Bottle Capacity : Approx. 1.8 liters
- Sample Transfer : Liquid transferred from sampling bottle to laboratory bottle by opening transfer valve at bottom|Pump can be connected to accelerate transfer
- Maximum Tank Overpressure : 0.3 bar
- Materials : AISI 316 Stainless Steel, Rilsan Coated Aluminum (full stainless steel on request)
