Air/gas ratio controls GIK

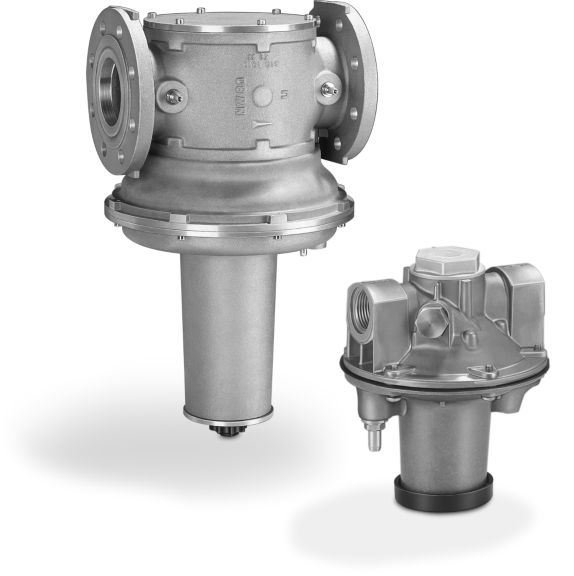

Air/gas ratio controls for maintaining a constant gas/air pressure ratio of 1:1, GIK for continuous control, GIK..B for High/Low/Off control.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Air/gas ratio controls for maintaining a constant gas/air pressure ratio of 1:1.
Features & Benefits:
Features & Benefits:
- GIK for continuous control
- GIK..B for High/Low/Off control
- DN: 15 to 150
- Connection: thread or fl ange
- pu: max. 200 mbar
- psa: 0.5 to 120 mbar
- pd: 0.2 to 119 mbar
- Delta p: max. 100 mbar
Specifications
Storage/Transport Temperatures
- Storage Temperature Range
- GIK 15 to 50: -20 to +40 deg C
- GIK 65 to 150: -15 to +40 deg C
Environmental Conditions
- Ambient Temperature Range
- GIK 15 to 50: -20 to +60 deg C
- GIK 65 to 150: -15 to +60 deg C
Pressure Specifications
- Gas/Air Pressure Ratio
- 1:1
- Outlet Pressure Range
- 0.2 to 119 mbar
- Maximum Pressure Drop
- 100 mbar
Air & Combustion Air Specifications
- Air Control Pressure
- 0.5 to 120 mbar
Overview
- Design Features
- Bypass screw for low-fire rate adjustment
- Inlet pressure compensation diaphragm for high control accuracy
- Spring for compensating measuring unit weight
- Test nipples for static inlet, outlet, and control pressures
- Zero shut-off; high turndown
Connections & Interfaces
- Connection Type
- Rp Internal Thread (ISO 7-1), NPT Internal Thread, ISO flange (PN 16), ANSI flange
Processing & Performance Metrics
- Adjusting Range
- GIK 15 to 50: -3 to +3 mbar
- GIK 65 to 150: -2 to +2 mbar (Low Fire)
Performance, Flow & Capacity
- Turndown Ratio
- 1:10
Actuation, Valve & Motion Control Specifications
- Bypass Orifice
- GIK 15 to 25: Standard Ø 1.5 mm, up to Ø 4 mm possible
- GIK 40 to 50: Standard Ø 5 mm, up to Ø 9 mm possible
Dimensions & Size Specifications
- Nominal Sizes
- DN 15, 20, 25, 40, 50, 65, 80, 100, 150
Applications & Compatibility
- Applications
- Maintains constant gas/air ratio and controls gas pressure upstream of burners in systems without preheated combustion air
- Used in iron, steel, glass, ceramics industries, and commercial heat generation (packaging, paper, foodstuffs)
Standards & Certifications
- Approvals
- EU 2016/426 GAR; EN 88-1:2022 + A1:2023; Eurasian Customs Union Compliance
Material Specifications
- Material
- AlSi
Storage/Transport Temperatures
- Storage Temperature Range
- GIK 15 to 50: -20 to +40 deg C
- GIK 65 to 150: -15 to +40 deg C
Environmental Conditions
- Ambient Temperature Range
- GIK 15 to 50: -20 to +60 deg C
- GIK 65 to 150: -15 to +60 deg C
Pressure Specifications
- Gas/Air Pressure Ratio
- 1:1
- Outlet Pressure Range
- 0.2 to 119 mbar
- Maximum Pressure Drop
- 100 mbar
Air & Combustion Air Specifications
- Air Control Pressure
- 0.5 to 120 mbar
Overview
- Design Features
- Bypass screw for low-fire rate adjustment
- Inlet pressure compensation diaphragm for high control accuracy
- Spring for compensating measuring unit weight
- Test nipples for static inlet, outlet, and control pressures
- Zero shut-off; high turndown
Connections & Interfaces
- Connection Type
- Rp Internal Thread (ISO 7-1), NPT Internal Thread, ISO flange (PN 16), ANSI flange
Processing & Performance Metrics
- Adjusting Range
- GIK 15 to 50: -3 to +3 mbar
- GIK 65 to 150: -2 to +2 mbar (Low Fire)
Performance, Flow & Capacity
- Turndown Ratio
- 1:10
Actuation, Valve & Motion Control Specifications
- Bypass Orifice
- GIK 15 to 25: Standard Ø 1.5 mm, up to Ø 4 mm possible
- GIK 40 to 50: Standard Ø 5 mm, up to Ø 9 mm possible
Dimensions & Size Specifications
- Nominal Sizes
- DN 15, 20, 25, 40, 50, 65, 80, 100, 150
Applications & Compatibility
- Applications
- Maintains constant gas/air ratio and controls gas pressure upstream of burners in systems without preheated combustion air
- Used in iron, steel, glass, ceramics industries, and commercial heat generation (packaging, paper, foodstuffs)
Standards & Certifications
- Approvals
- EU 2016/426 GAR; EN 88-1:2022 + A1:2023; Eurasian Customs Union Compliance
Material Specifications
- Material
- AlSi
- Storage Temperature Range : GIK 15 to 50: -20 to +40 deg C|GIK 65 to 150: -15 to +40 deg C
- Ambient Temperature Range : GIK 15 to 50: -20 to +60 deg C|GIK 65 to 150: -15 to +60 deg C
- Gas/Air Pressure Ratio : 1:1
- Outlet Pressure Range : 0.2 to 119 mbar
- Maximum Pressure Drop : 100 mbar
- Air Control Pressure : 0.5 to 120 mbar
- Design Features : Bypass screw for low-fire rate adjustment|Inlet pressure compensation diaphragm for high control accuracy|Spring for compensating measuring unit weight|Test nipples for static inlet, outlet, and control pressures|Zero shut-off; high turndown
- Connection Type : Rp Internal Thread (ISO 7-1), NPT Internal Thread, ISO flange (PN 16), ANSI flange
- Adjusting Range : GIK 15 to 50: -3 to +3 mbar|GIK 65 to 150: -2 to +2 mbar (Low Fire)
- Turndown Ratio : 1:10
- Bypass Orifice : GIK 15 to 25: Standard Ø 1.5 mm, up to Ø 4 mm possible|GIK 40 to 50: Standard Ø 5 mm, up to Ø 9 mm possible
- Nominal Sizes : DN 15, 20, 25, 40, 50, 65, 80, 100, 150
- Applications : Maintains constant gas/air ratio and controls gas pressure upstream of burners in systems without preheated combustion air|Used in iron, steel, glass, ceramics industries, and commercial heat generation (packaging, paper, foodstuffs)
- Approvals : EU 2016/426 GAR; EN 88-1:2022 + A1:2023; Eurasian Customs Union Compliance
- Material : AlSi
