Commercial/Industrial AC, AL Series
AL-1400 Basic
The AL-1400 is ideally suited for commercial and industrial installations. It is unequaled for accuracy retention and for life cycle maintenance economies.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

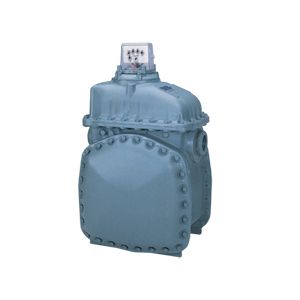

The Honeywell American Meter remanufactured AL-1400 class industrial diaphragm meter is ideally suited for commercial and industrial installations, unequaled for accuracy retention and for life cycle maintenance economies.
Features
• Die-cast aluminumcase
• Oil-impregnated, self-lubricating bushings
• Molded, convoluted diaphragms for smooth operation and long life
• Rigid, reinforced flag rods for positive alignment and sustained accuracy
• Graphite-filled phenolic valves to minimize wear
• Long-life, low friction, grommet seals
• Security seals that indicate tampering
Features
• Die-cast aluminumcase
• Oil-impregnated, self-lubricating bushings
• Molded, convoluted diaphragms for smooth operation and long life
• Rigid, reinforced flag rods for positive alignment and sustained accuracy
• Graphite-filled phenolic valves to minimize wear
• Long-life, low friction, grommet seals
• Security seals that indicate tampering
