Commercial/Industrial AC, AL Series
AL-2300 Basic
Elster American Meter’s aluminumcase meters are designed to provide positive displacement accuracy for industrial or commercial loads.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

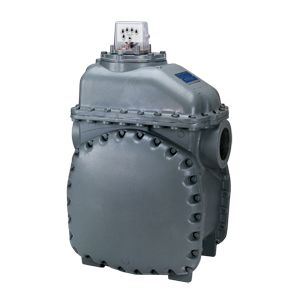

The Honeywell American Meter remanufactured AL-2300 class industrial diaphragm meter is ideally suited for commercial and industrial installations, unequaled for accuracy retention and for life cycle maintenance economies.
Features
• Die-cast aluminumcase
• Oil-impregnated, self-lubricating bushings
• Molded, convoluted diaphragms for smooth operation and long life
• Rigid, reinforced flag rods for positive alignment and sustained accuracy
• Graphite-filled phenolic valves to minimize wear
• Long-life, low friction, grommet seals
• Security seals that indicate tampering
Features
• Die-cast aluminumcase
• Oil-impregnated, self-lubricating bushings
• Molded, convoluted diaphragms for smooth operation and long life
• Rigid, reinforced flag rods for positive alignment and sustained accuracy
• Graphite-filled phenolic valves to minimize wear
• Long-life, low friction, grommet seals
• Security seals that indicate tampering
Installation Instructions
Name
Description
File Size
Date
Size
AL-2300 Basic Installation Instructions (English)
application/pdf 148.12 KB
10/31/2023
148.12 KB
Manuals and Guides
Name
Description
File Size
Date
Size
AL-2300 Basic Parts List (English)
application/pdf 70.68 KB
10/31/2023
70.68 KB
AL-2300 Basic Repair Parts List (English)
application/pdf 499.77 KB
10/31/2023
499.77 KB
AL-5000 Basic Technical Information (English)
application/pdf 429.47 KB
10/12/2023
429.47 KB
AL-2300 Basic Cleaning Instructions (English)
application/pdf 60.23 KB
10/31/2023
60.23 KB
Data Sheet
Name
Description
File Size
Date
Size
AL-2300 Basic Data Sheet (English)
application/pdf 409.9 KB
10/31/2023
409.9 KB
Name
Description
File Size
Date
Size
AL-2300 Basic Parts List (English)
application/pdf 70.68 KB
10/31/2023
70.68 KB
AL-2300 Basic Repair Parts List (English)
application/pdf 499.77 KB
10/31/2023
499.77 KB
AL-2300 Basic Data Sheet (English)
application/pdf 409.9 KB
10/31/2023
409.9 KB
AL-2300 Basic Installation Instructions (English)
application/pdf 148.12 KB
10/31/2023
148.12 KB
AL-5000 Basic Technical Information (English)
application/pdf 429.47 KB
10/12/2023
429.47 KB
AL-2300 Basic Cleaning Instructions (English)
application/pdf 60.23 KB
10/31/2023
60.23 KB
Name
Description
File Size
Date
Size
AL-2300 Basic Installation Instructions (English)
148.12 KB
10/31/2023
AL-2300 Basic Repair Parts List (English)
499.77 KB
10/31/2023
AL-5000 Basic Technical Information (English)
429.47 KB
10/12/2023
AL-2300 Basic Cleaning Instructions (English)
60.23 KB
10/31/2023
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
01122P048
GASKET, HANDHOLE PLATE
01122P048
GASKET, HANDHOLE PLATE
10956P028
BUSHING, .62ODX.44IDX.88, SST
10956P028
BUSHING, .62ODX.44IDX.88, SST
10956P092
BUSHING AL2300 TANG WRIST
10956P092
BUSHING AL2300 TANG WRIST
11094P020
PIN-BELL CRK AL2300/5000
11094P020
PIN-BELL CRK AL2300/5000
11970P003
HEX HD PIPE PLUG, DRILLED FOR SEAL WIRE
11970P003
HEX HD PIPE PLUG, DRILLED FOR SEAL WIRE
13981P033
WASHER, 1.00ODX.41IDX.06W, STL
13981P033
WASHER, 1.00ODX.41IDX.06W, STL
17318G006
ARM VALVE ASSY-AL2300
17318G006
ARM VALVE ASSY-AL2300
17358G008
ARM FRONT SHORT FLAG-AL2300
17358G008
ARM FRONT SHORT FLAG-AL2300
17358G045
RM-SHORT FLAG BACK-AL2300
17358G045
RM-SHORT FLAG BACK-AL2300
17614P041
WASHER AL2300/5000
17614P041
WASHER AL2300/5000
