Commercial/Industrial AC, AL Series
AL-5000 Basic
The Elster Meter Services Refurbish program applies to AL-1400/AL-2300/AL-5000 series Elster American or Elster Canadian meters, suggested for fifteen (15) years old and newer.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

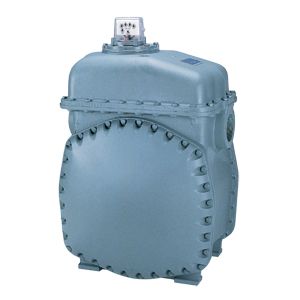

The Honeywell American Meter remanufactured AL-5000 class industrial diaphragm meter is ideally suited for commercial and industrial installations, unequaled for accuracy retention and for life cycle maintenance economies.
Features
• Die-cast aluminumcase
• Oil-impregnated, self-lubricating bushings
• Molded, convoluted diaphragms for smooth operation and long life
• Rigid, reinforced flag rods for positive alignment and sustained accuracy
• Graphite-filled phenolic valves to minimize wear
• Long-life, low friction, grommet seals
• Security seals that indicate tampering
