Commercial/Industrial AC, AL Series
AL-800/1000 Basic

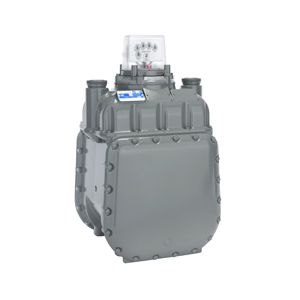

The Honeywell American Meter AL-800 and AL-1000 class meters are ideally suited for commercial and industrial applications, providing positive displacement accuracy for commercial or industrial loads.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The AL-800/AL-1000 diaphragm meters are for usage in commercial/industrial applications. These meters are compact and lightweight, but are designed for positive displacement accuracy for industrial/commercial loads.
AL-800 Advantages
• AMR/AMI Compatibility
• Temperature Compensation available from -30°F to 140°F (-34°C to 60°C)
• Meets ANSI B109.2 specifications
• Measurement Canada accredited
• 800 SCFH (22.7m3/h) (0.60 specific gravity gas) at ½-inch W.C. differential
AL-1000 Advantages
• AMR/AMI Compatibility
• Temperature Compensation available from -30°F to 140°F (-34°C to 60°C)
• Meets ANSI B109.2 specifications
• Measurement Canada accredited
• 1000 SCFH (28.3m3 /h) (0.60 specific gravity gas) at ½-inch W.C. differential
