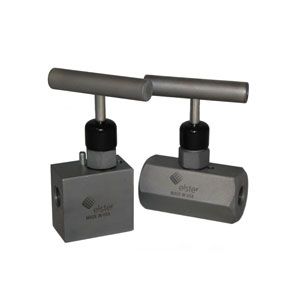

Needle Valves
Available in either carbon steel or stainless steel, needle valves give long-lasting, dependable service under the most severe conditions.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Honeywell Gas Depot Needle Valves are used for many gas and liquid measurement and control applications such as orifice meter gauge line connections, shut-off valves for pressure gauges, odorizers, sampling devices, and other high pressure applications.
Specifications
General Overview
- Applications
- Gas and liquid measurement and control applications
- Valve Type
- Needle valve (precision flow control)
- Typical Uses
- Orifice meter gauge lines, pressure gauges, odorizers, sampling devices
Construction
- Valve Stem Material
- 316 Stainless Steel
- Seat Type
- Metal-to-metal hard seat design
- Body Material
- Carbon Steel or Stainless Steel
Mechanical & Physical
- Surface Finish
- Burnished sealing surfaces (16 RMS mirror finish)
- Seal Material
- Viton O-ring with Teflon backup ring
- Bonnet Type
- One-piece bonnet with metal-to-metal seal
Performance
- Pressure Ratings
- 10,000 psi at 200 deg F maximum
Installation & Configuration
- Pattern Types
- Straight Pattern, Angle Pattern
Sizes
- Orifice Sizes
- 0.187 in
- Nominal Pipe Sizes
- 1/4 in, 1/2 in (examples shown)
Flow & Performance
- Flow Coefficient
- Maximum Cv = 0.52
Connection Options
- Connection Type
- Threaded (implied by application/use)
General Overview
- Applications
- Gas and liquid measurement and control applications
- Valve Type
- Needle valve (precision flow control)
- Typical Uses
- Orifice meter gauge lines, pressure gauges, odorizers, sampling devices
Construction
- Valve Stem Material
- 316 Stainless Steel
- Seat Type
- Metal-to-metal hard seat design
- Body Material
- Carbon Steel or Stainless Steel
Mechanical & Physical
- Surface Finish
- Burnished sealing surfaces (16 RMS mirror finish)
- Seal Material
- Viton O-ring with Teflon backup ring
- Bonnet Type
- One-piece bonnet with metal-to-metal seal
Performance
- Pressure Ratings
- 10,000 psi at 200 deg F maximum
Installation & Configuration
- Pattern Types
- Straight Pattern, Angle Pattern
Sizes
- Orifice Sizes
- 0.187 in
- Nominal Pipe Sizes
- 1/4 in, 1/2 in (examples shown)
Flow & Performance
- Flow Coefficient
- Maximum Cv = 0.52
Connection Options
- Connection Type
- Threaded (implied by application/use)
- Applications : Gas and liquid measurement and control applications
- Valve Type : Needle valve (precision flow control)
- Valve Stem Material : 316 Stainless Steel
- Typical Uses : Orifice meter gauge lines, pressure gauges, odorizers, sampling devices
- Surface Finish : Burnished sealing surfaces (16 RMS mirror finish)
- Seat Type : Metal-to-metal hard seat design
- Seal Material : Viton O-ring with Teflon backup ring
- Pressure Ratings : 10,000 psi at 200 deg F maximum
- Pattern Types : Straight Pattern, Angle Pattern
- Orifice Sizes : 0.187 in
- Nominal Pipe Sizes : 1/4 in, 1/2 in (examples shown)
- Flow Coefficient : Maximum Cv = 0.52
- Connection Type : Threaded (implied by application/use)
- Bonnet Type : One-piece bonnet with metal-to-metal seal
- Body Material : Carbon Steel or Stainless Steel
Manuals and Guides
Name
Description
File Size
Date
Size
Needle Valves Manuals and Guides (English)
application/pdf 90.4 KB
10/9/2023
90.4 KB
Data Sheet
Name
Description
File Size
Date
Size
Needle Valves Data Sheet (English)
application/pdf 547.28 KB
10/31/2023
547.28 KB
Name
Description
File Size
Date
Size
Needle Valves Manuals and Guides (English)
application/pdf 90.4 KB
10/9/2023
90.4 KB
Needle Valves Data Sheet (English)
application/pdf 547.28 KB
10/31/2023
547.28 KB
Name
Description
File Size
Date
Size
Needle Valves Manuals and Guides (English)
90.4 KB
10/9/2023
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
28058G014
NEEDLE VALVE, 1/4" STRAIGHT
28058G014
NEEDLE VALVE, 1/4" STRAIGHT
28062G010
NEEDLE VALVE, 1/2" STRAIGHT
28062G010
NEEDLE VALVE, 1/2" STRAIGHT
56027G005
NEEDLE VALVE, 1/4" ANGLE
56027G005
NEEDLE VALVE, 1/4" ANGLE
