Pressure Gauges
Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

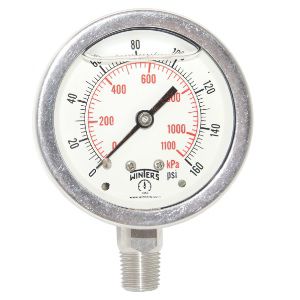

Honeywell Gas Depot offers a select range of Winters Instruments pressure gauges for your pressure measurement application. Model PFQ and PFP liquid filled industrial gauges are highly accurate, pulsation and vibration resistant gauges for use in harsh environments. For special applications, model PLP low pressure gauges provide highly accurate readings of low pressures. All available with ¼ NPT bottom connections.
Specifications
Performance
- Accuracy
- ±1% to ±3-2-3% FS depending on model and size
- Working Pressure
- Typically up to 75% of full scale value
- Pressure Ratings
- From low pressures (in H₂O) up to high pressures (20,000 psi depending on model)
- Overpressure Limits
- 15 to 30% of full scale depending on pressure range
Construction
- Wetted Materials
- Stainless Steel or Brass
General Overview
- Variant
- Low Pressure Gauge (PLP), Liquid Filled Gauge (PFP, PFQ)
- Product Type
- Pressure Gauges (Low Pressure, Liquid-Filled, Stainless Steel)
- Measurement Type
- Gauge pressure, vacuum, compound ranges
- Function
- Measure pressure, vacuum, and airflow in gases/liquids
Operating Conditions
- Operating Temperature Range
- -40 to 200 deg F (dry), lower for liquid-filled models
- Enclosure Rating
- IP52 (PLP), IP65/IP66 (liquid filled gauges)
Installation
- Mounting Type
- Bottom or back connection
Measurement & Metrology
- Media Compatibility
- Gaseous Media (Corrosive and Non-Corrosive), Liquids (Model dependent)
- Dial Size
- 1.5 to 6 in (40 to 150 mm)
Mechanical & Physical
- Dial Material
- White aluminum with black/red markings
- Case Material
- Stainless Steel (AISI 304) or Aluminum/Steel
Connection Options
- Connection Type
- NPT Threaded
- Connection Size
- 1/8 in, 1/4 in, 1/2 in (model dependent)
Safety & Compliance
- Approvals
- CRN registered
Performance
- Accuracy
- ±1% to ±3-2-3% FS depending on model and size
- Working Pressure
- Typically up to 75% of full scale value
- Pressure Ratings
- From low pressures (in H₂O) up to high pressures (20,000 psi depending on model)
- Overpressure Limits
- 15 to 30% of full scale depending on pressure range
Construction
- Wetted Materials
- Stainless Steel or Brass
General Overview
- Variant
- Low Pressure Gauge (PLP), Liquid Filled Gauge (PFP, PFQ)
- Product Type
- Pressure Gauges (Low Pressure, Liquid-Filled, Stainless Steel)
- Measurement Type
- Gauge pressure, vacuum, compound ranges
- Function
- Measure pressure, vacuum, and airflow in gases/liquids
Operating Conditions
- Operating Temperature Range
- -40 to 200 deg F (dry), lower for liquid-filled models
- Enclosure Rating
- IP52 (PLP), IP65/IP66 (liquid filled gauges)
Installation
- Mounting Type
- Bottom or back connection
Measurement & Metrology
- Media Compatibility
- Gaseous Media (Corrosive and Non-Corrosive), Liquids (Model dependent)
- Dial Size
- 1.5 to 6 in (40 to 150 mm)
Mechanical & Physical
- Dial Material
- White aluminum with black/red markings
- Case Material
- Stainless Steel (AISI 304) or Aluminum/Steel
Connection Options
- Connection Type
- NPT Threaded
- Connection Size
- 1/8 in, 1/4 in, 1/2 in (model dependent)
Safety & Compliance
- Approvals
- CRN registered
- Accuracy : ±1% to ±3-2-3% FS depending on model and size
- Working Pressure : Typically up to 75% of full scale value
- Wetted Materials : Stainless Steel or Brass
- Variant : Low Pressure Gauge (PLP), Liquid Filled Gauge (PFP, PFQ)
- Product Type : Pressure Gauges (Low Pressure, Liquid-Filled, Stainless Steel)
- Pressure Ratings : From low pressures (in H₂O) up to high pressures (20,000 psi depending on model)
- Overpressure Limits : 15 to 30% of full scale depending on pressure range
- Operating Temperature Range : -40 to 200 deg F (dry), lower for liquid-filled models
- Mounting Type : Bottom or back connection
- Media Compatibility : Gaseous Media (Corrosive and Non-Corrosive), Liquids (Model dependent)
- Measurement Type : Gauge pressure, vacuum, compound ranges
- Function : Measure pressure, vacuum, and airflow in gases/liquids
- Enclosure Rating : IP52 (PLP), IP65/IP66 (liquid filled gauges)
- Dial Size : 1.5 to 6 in (40 to 150 mm)
- Dial Material : White aluminum with black/red markings
- Connection Type : NPT Threaded
- Connection Size : 1/8 in, 1/4 in, 1/2 in (model dependent)
- Case Material : Stainless Steel (AISI 304) or Aluminum/Steel
- Approvals : CRN registered
