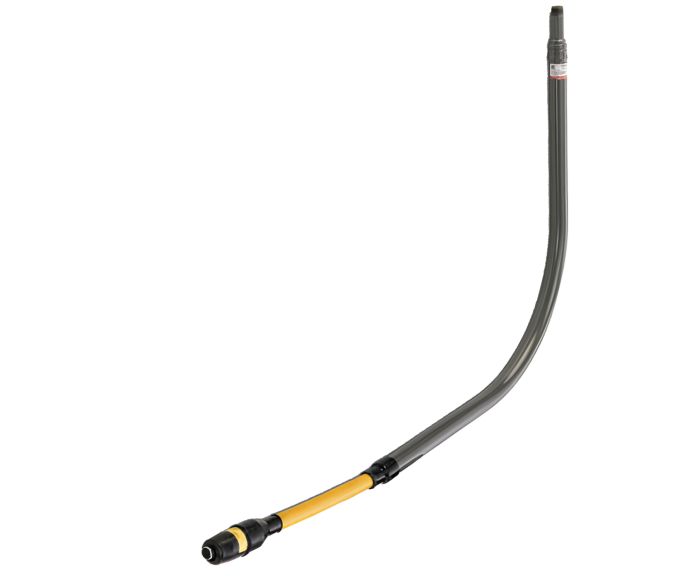

Rigid Risers
Honeywell Perfection developed the industry’s first plastic / steel anodeless service-line riser in 1972. We continue to develop a wide variety of riser products to meet your unique installation requirements at an exceptional value.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Our risers enable you to make a permanent meter-set connection that requires no cathodic protection – with many standard or custom options to choose from:
• Below grade secondary fire seal – protect from gas leaks in case of damage to upper seal
• Available with Permasert couplings or fusion outlets below grade
• End to end coating with consistent thickness
• Prebent, straight or flexible configurations
• Available ½ IPS to 12 IPS pipe sizes
• Below grade secondary fire seal – protect from gas leaks in case of damage to upper seal
• Available with Permasert couplings or fusion outlets below grade
• End to end coating with consistent thickness
• Prebent, straight or flexible configurations
• Available ½ IPS to 12 IPS pipe sizes
Specifications
General Overview
- Applications
- Transition from underground PE piping to above-ground meter connection
- Typical Uses
- Gas service lines for residential/commercial meter connections
- Product Type
- Service line riser (PE-to-steel transition riser)
Mechanical & Physical
- Transition Type
- Polyethylene-to-steel prefabricated riser
Operating Conditions
- Temperature Range
- Not explicitly specified in document
Dimensions & Sizes
- Steel Outlet Sizes
- 3/4 in, 1 in, 1-1/4 in, 1-1/2 in, 2 in, 3 in, 4 in NPT
- PE Inlet Sizes
- 1/2 in CTS, 1 in CTS, IPS sizes up to 4 in
Configuration
- SDR Compatibility
- SDR 10, SDR 11, SDR 11.5, etc.
Installation
- Installation Type
- Pre-fabricated riser, ready for installation
Construction
- Design Type
- Preassembled rigid riser unit
- Construction Materials
- PE Tubing (PE2406, PE3408, PE4710), Steel Outlet (threaded NPT)
- Coating Type
- Epoxy coated and/or galvanized steel casing
Flow & Performance
- Density Variants
- Medium (PE2406), High (PE3408, PE4710)
Safety & Compliance
- Approvals
- ASTM D-2513, ANSI B1.20, ANSI B31.8, US DOT Part 192, CSA B137.4
General Overview
- Applications
- Transition from underground PE piping to above-ground meter connection
- Typical Uses
- Gas service lines for residential/commercial meter connections
- Product Type
- Service line riser (PE-to-steel transition riser)
Mechanical & Physical
- Transition Type
- Polyethylene-to-steel prefabricated riser
Operating Conditions
- Temperature Range
- Not explicitly specified in document
Dimensions & Sizes
- Steel Outlet Sizes
- 3/4 in, 1 in, 1-1/4 in, 1-1/2 in, 2 in, 3 in, 4 in NPT
- PE Inlet Sizes
- 1/2 in CTS, 1 in CTS, IPS sizes up to 4 in
Configuration
- SDR Compatibility
- SDR 10, SDR 11, SDR 11.5, etc.
Installation
- Installation Type
- Pre-fabricated riser, ready for installation
Construction
- Design Type
- Preassembled rigid riser unit
- Construction Materials
- PE Tubing (PE2406, PE3408, PE4710), Steel Outlet (threaded NPT)
- Coating Type
- Epoxy coated and/or galvanized steel casing
Flow & Performance
- Density Variants
- Medium (PE2406), High (PE3408, PE4710)
Safety & Compliance
- Approvals
- ASTM D-2513, ANSI B1.20, ANSI B31.8, US DOT Part 192, CSA B137.4
- Applications : Transition from underground PE piping to above-ground meter connection
- Typical Uses : Gas service lines for residential/commercial meter connections
- Transition Type : Polyethylene-to-steel prefabricated riser
- Temperature Range : Not explicitly specified in document
- Steel Outlet Sizes : 3/4 in, 1 in, 1-1/4 in, 1-1/2 in, 2 in, 3 in, 4 in NPT
- SDR Compatibility : SDR 10, SDR 11, SDR 11.5, etc.
- Product Type : Service line riser (PE-to-steel transition riser)
- PE Inlet Sizes : 1/2 in CTS, 1 in CTS, IPS sizes up to 4 in
- Installation Type : Pre-fabricated riser, ready for installation
- Design Type : Preassembled rigid riser unit
- Density Variants : Medium (PE2406), High (PE3408, PE4710)
- Construction Materials : PE Tubing (PE2406, PE3408, PE4710), Steel Outlet (threaded NPT)
- Coating Type : Epoxy coated and/or galvanized steel casing
- Approvals : ASTM D-2513, ANSI B1.20, ANSI B31.8, US DOT Part 192, CSA B137.4
Data Sheet
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
09092120
ANGLE IRON W/HOLE 1x1x1/8 12LG GRAY
09092120
ANGLE IRON W/HOLE 1x1x1/8 12LG GRAY
09180GN
SLIP SEAL,1 1/4IPSX1CTS
09180GN
SLIP SEAL,1 1/4IPSX1CTS
09181GN
SLIP SEAL,3/4IPSX1/2CTS
09181GN
SLIP SEAL,3/4IPSX1/2CTS
09203GN
SVSA,1/2X1/2CTS-090X3/4*
09203GN
SVSA,1/2X1/2CTS-090X3/4*
09205020GN
PROT SLV,PE/UV 1 3/8IDX1/32X12
09205020GN
PROT SLV,PE/UV 1 3/8IDX1/32X12
09234GN
SVSA 1X1IPS SDR11X1 1/2*
09234GN
SVSA 1X1IPS SDR11X1 1/2*
09261GN
GAS LNR,PE 1.025X.020X49
09261GN
GAS LNR,PE 1.025X.020X49
09263GN
BRG SLV,3IPS X24 SDR17 HDPE
09263GN
BRG SLV,3IPS X24 SDR17 HDPE
09265GN
BRG SLV,PE 1.760X100X18
09265GN
BRG SLV,PE 1.760X100X18
09286GN
BRG SLV PE 2.420 X .100 X 24
09286GN
BRG SLV PE 2.420 X .100 X 24
