gas risers
Transition Fittings

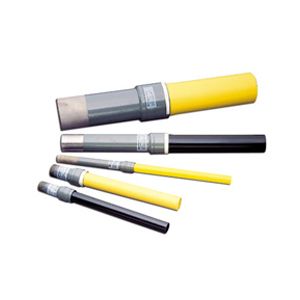

Honeywell Perfection's Transition Fittings are ideal for gas applications requiring a steel-to polyethylene transition. All Honeywell Perfection transition fittings are laboratory and field tested for regulatory compliance.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features & Benefits
- Steel-to-polyethylene transition for all gas applications Threaded and weld-end outlets
- Sizes from 1/2 IPS x 1/2 CTS to 12 IPS x 12 IPS Positive seal with added “O” ring protection
- Permanent factory assembly
- Pull-out strength greater than the PE piping Meets or exceeds the requirements of ASTM D-2513 category 1, ANSI B 1.20, ANSI B 31.8, US DOT Part 192, NFPA-58, and CSA B137.
- 4 Metric sizes available
- Available in PE 2406 (yellow), PE 3408 (black) and PE 4710 (black) materials
Specifications
General Overview
- Applications
- Gas applications requiring steel-to-polyethylene transition
- Typical Uses
- Connecting steel pipelines to polyethylene pipelines
- Product Type
- Transition fitting (steel to PE connection fitting)
Operating Conditions
- Temperature Range
- Not explicitly specified in document
Variants & Options
- Size Range
- 1/2 in IPS x 1/2 in CTS to 12 in IPS x 12 in IPS
Configuration
- SDR Compatibility
- SDR 10, SDR 11, SDR 11.5, SDR 13.5
Mechanical & Physical
- Joint Type
- Steel-to-PE bonded transition
Installation
- Installation Type
- Threaded or Weld-End Steel Side
Construction
- Design Type
- Compact, integrated steel-to-PE fitting
- Construction Materials
- Steel (threaded or weld-end outlet) Steel Side
- PE 2406, PE 3408, PE 4710 Polyethylene Side
Flow & Performance
- Density Variants
- Medium density (2406), High density (3408, 4710)
Connection Options
- Connection Type
- Threaded and Weld-End Outlets
Product Identification
- Assembly Type
- Permanent factory-assembled fitting
Safety & Compliance
- Approvals
- ASTM D-2513 Category 1, ANSI B1.20, ANSI B31.8, US DOT Part 192, NFPA-58, CSA B137.4, Meets or exceeds industry regulatory requirements
General Overview
- Applications
- Gas applications requiring steel-to-polyethylene transition
- Typical Uses
- Connecting steel pipelines to polyethylene pipelines
- Product Type
- Transition fitting (steel to PE connection fitting)
Operating Conditions
- Temperature Range
- Not explicitly specified in document
Variants & Options
- Size Range
- 1/2 in IPS x 1/2 in CTS to 12 in IPS x 12 in IPS
Configuration
- SDR Compatibility
- SDR 10, SDR 11, SDR 11.5, SDR 13.5
Mechanical & Physical
- Joint Type
- Steel-to-PE bonded transition
Installation
- Installation Type
- Threaded or Weld-End Steel Side
Construction
- Design Type
- Compact, integrated steel-to-PE fitting
- Construction Materials
- Steel (threaded or weld-end outlet) Steel Side
- PE 2406, PE 3408, PE 4710 Polyethylene Side
Flow & Performance
- Density Variants
- Medium density (2406), High density (3408, 4710)
Connection Options
- Connection Type
- Threaded and Weld-End Outlets
Product Identification
- Assembly Type
- Permanent factory-assembled fitting
Safety & Compliance
- Approvals
- ASTM D-2513 Category 1, ANSI B1.20, ANSI B31.8, US DOT Part 192, NFPA-58, CSA B137.4, Meets or exceeds industry regulatory requirements
- Applications : Gas applications requiring steel-to-polyethylene transition
- Typical Uses : Connecting steel pipelines to polyethylene pipelines
- Temperature Range : Not explicitly specified in document
- Size Range : 1/2 in IPS x 1/2 in CTS to 12 in IPS x 12 in IPS
- SDR Compatibility : SDR 10, SDR 11, SDR 11.5, SDR 13.5
- Product Type : Transition fitting (steel to PE connection fitting)
- Joint Type : Steel-to-PE bonded transition
- Installation Type : Threaded or Weld-End Steel Side
- Design Type : Compact, integrated steel-to-PE fitting
- Density Variants : Medium density (2406), High density (3408, 4710)
- Construction Materials : Steel (threaded or weld-end outlet) Steel Side|PE 2406, PE 3408, PE 4710 Polyethylene Side
- Connection Type : Threaded and Weld-End Outlets
- Assembly Type : Permanent factory-assembled fitting
- Approvals : ASTM D-2513 Category 1, ANSI B1.20, ANSI B31.8, US DOT Part 192, NFPA-58, CSA B137.4, Meets or exceeds industry regulatory requirements
