Excess Flow Valves
Make installation of excess-flow valves as easy as Perfection: We incorporate EFVs directly into Perfection products such as our Permasert couplings and PermaLock tapping tees to help you ensure safe, effective gas delivery.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

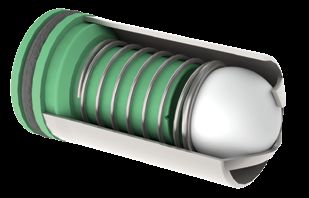

Perfection EFVs prevents catastrophic leakage by tripping automatically: When gas flow reaches a critical rate, the force on a ball exceeds the opposing force on a spring, which causes the ball to seal against a seat. Reset is also automatic: Once downstream damage is corrected, a bleed-by or bypass flow of gas lets upstream and downstream pressures equalize, resetting the valve to its open position. (A full-shut-off EFV is also available, which must be reset manually.)
Specifications
Safety & Compliance
- Approvals
- ASTM F2138, ASTM F1802
General Overview
- Valve Type
- Excess Flow Valve
- Primary Function
- Automatically limits gas flow during line rupture
Construction
- Valve Body Material
- Stainless Steel (stamped)
- Valve Ball Material
- Precision‑ground Nylon
- Elastomer/Seal Material
- Buna‑Nitrile
Dimensions & Sizes
- Service Line Size
- 1/2 CTS, 3/4 IPS, 1 CTS, 1 IPS
Functional Features
- Reset Type
- Bleed‑by automatic reset
Protection & Compliance
- Regulatory Compliance
- U.S. DOT CFR Title 49, Part 192.381
Flow & Performance
- Rated Flow Capacities
- 400, 600, 800, 1100, 1800 SCFH
Mechanical & Physical
- Fitting Configuration
- Tapping Tee, Shut‑off Valve, Stick, Permasert
Media & Industry
- Compatible Media
- Gas
Safety & Compliance
- Approvals
- ASTM F2138, ASTM F1802
General Overview
- Valve Type
- Excess Flow Valve
- Primary Function
- Automatically limits gas flow during line rupture
Construction
- Valve Body Material
- Stainless Steel (stamped)
- Valve Ball Material
- Precision‑ground Nylon
- Elastomer/Seal Material
- Buna‑Nitrile
Dimensions & Sizes
- Service Line Size
- 1/2 CTS, 3/4 IPS, 1 CTS, 1 IPS
Functional Features
- Reset Type
- Bleed‑by automatic reset
Protection & Compliance
- Regulatory Compliance
- U.S. DOT CFR Title 49, Part 192.381
Flow & Performance
- Rated Flow Capacities
- 400, 600, 800, 1100, 1800 SCFH
Mechanical & Physical
- Fitting Configuration
- Tapping Tee, Shut‑off Valve, Stick, Permasert
Media & Industry
- Compatible Media
- Gas
- Approvals : ASTM F2138, ASTM F1802
- Valve Type : Excess Flow Valve
- Valve Body Material : Stainless Steel (stamped)
- Valve Ball Material : Precision‑ground Nylon
- Service Line Size : 1/2 CTS, 3/4 IPS, 1 CTS, 1 IPS
- Reset Type : Bleed‑by automatic reset
- Regulatory Compliance : U.S. DOT CFR Title 49, Part 192.381
- Rated Flow Capacities : 400, 600, 800, 1100, 1800 SCFH
- Primary Function : Automatically limits gas flow during line rupture
- Fitting Configuration : Tapping Tee, Shut‑off Valve, Stick, Permasert
- Elastomer/Seal Material : Buna‑Nitrile
- Compatible Media : Gas
Data Sheet
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
50561025GN
KIT STICK 1IPS-SDR 11.0 FLP2600 BSC XMD
50561025GN
KIT STICK 1IPS-SDR 11.0 FLP2600 BSC XMD
51102010GN
STICK FLP11 BSCxS/F 1CTS-099 XMD BRG SLV
51102010GN
STICK FLP11 BSCxS/F 1CTS-099 XMD BRG SLV
51102GN
STICK,FLP8 BSCXS/F 1T099 XMD
51102GN
STICK,FLP8 BSCXS/F 1T099 XMD
51128010GN
STICK FLP4 BSC 1/2IPS-SDR9.3 PE4710
51128010GN
STICK FLP4 BSC 1/2IPS-SDR9.3 PE4710
51128011GN
STICK FLP800 BSC 1/2 IPS-SDR 9.3 XMD
51128011GN
STICK FLP800 BSC 1/2 IPS-SDR 9.3 XMD
51128013GN
STICK FLP1100 1/2IPS-SDR 9.3 BSC XMD
51128013GN
STICK FLP1100 1/2IPS-SDR 9.3 BSC XMD
51128017GN
STICK FLP600 BSC 1/2IPS-SDR 9.3 PE4710
51128017GN
STICK FLP600 BSC 1/2IPS-SDR 9.3 PE4710
51128023
STICK FLP800 BSC 1/2 IPS-SDR 9.3 4710/MD
51128023
STICK FLP800 BSC 1/2 IPS-SDR 9.3 4710/MD
51128031GN
STICK FLP600 BSC 3/4CTS-.090 XMD
51128031GN
STICK FLP600 BSC 3/4CTS-.090 XMD
51128033GN
STICK FLP1100 BSC 3/4CTS-.090 XMD
51128033GN
STICK FLP1100 BSC 3/4CTS-.090 XMD
