Gas Shutoff Valves
PSV polyethylene shut-off valves provide long-lasting, maintenance-free performance.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features & Benefits
• Outlets compatible with all PE distribution systems
• Rated at operating temperatures from -20°F to 100°F (-29°C to 38°C) and rated equivalent to the maximum allowable operating pressure
• Quarter turn on-off actuation
• Available with Permasert® outlets from 1/2 CTS through 2 IPS
• Fusion outlets available from 1/2 CTS through 8 IPS
• Full port PSV valves feature large port for maximum gas flow
• Metric sizes available
• PSV polyethylene shut-off valves – connect with safety, integrity and speed
• Outlets compatible with all PE distribution systems
• Rated at operating temperatures from -20°F to 100°F (-29°C to 38°C) and rated equivalent to the maximum allowable operating pressure
• Quarter turn on-off actuation
• Available with Permasert® outlets from 1/2 CTS through 2 IPS
• Fusion outlets available from 1/2 CTS through 8 IPS
• Full port PSV valves feature large port for maximum gas flow
• Metric sizes available
• PSV polyethylene shut-off valves – connect with safety, integrity and speed
Specifications
General Overview
- Actuation Type
- Quarter‑turn on/off
- Installation Orientation
- Vertical (valve box compatible)
Testing
- Temperature Cycling
- ‑20 deg F to 100 deg F, 10 cycles
Pressure Ratings
- Pressure Ratings
- Up to 200 psig (13.8 bar), matches PE piping design pressure
Installation
- Outlet Sizes
- 3/4 in CTS to 2 in IPS (Hydrosert), Butt Fusion available
- Installation Type
- Fast and easy installation
Operating Conditions
- Operating Temperature Range
- ‑32 to 100 deg F (‑29 to 38 deg C)
Maintenance
- Maintenance
- Maintenance‑free
Media & Industry
- Compatible Media
- Gas
Construction
- Body Material
- High Density Polyethylene (HDPE – PE4710)
Safety & Compliance
- Approvals
- AWWA: C901 ASTM D 3350, ASTM D 1598, ASTM D 1599, NSF Listed, PPI Listed
General Overview
- Actuation Type
- Quarter‑turn on/off
- Installation Orientation
- Vertical (valve box compatible)
Testing
- Temperature Cycling
- ‑20 deg F to 100 deg F, 10 cycles
Pressure Ratings
- Pressure Ratings
- Up to 200 psig (13.8 bar), matches PE piping design pressure
Installation
- Outlet Sizes
- 3/4 in CTS to 2 in IPS (Hydrosert), Butt Fusion available
- Installation Type
- Fast and easy installation
Operating Conditions
- Operating Temperature Range
- ‑32 to 100 deg F (‑29 to 38 deg C)
Maintenance
- Maintenance
- Maintenance‑free
Media & Industry
- Compatible Media
- Gas
Construction
- Body Material
- High Density Polyethylene (HDPE – PE4710)
Safety & Compliance
- Approvals
- AWWA: C901 ASTM D 3350, ASTM D 1598, ASTM D 1599, NSF Listed, PPI Listed
- Actuation Type : Quarter‑turn on/off
- Temperature Cycling : ‑20 deg F to 100 deg F, 10 cycles
- Pressure Ratings : Up to 200 psig (13.8 bar), matches PE piping design pressure
- Outlet Sizes : 3/4 in CTS to 2 in IPS (Hydrosert), Butt Fusion available
- Operating Temperature Range : ‑32 to 100 deg F (‑29 to 38 deg C)
- Maintenance : Maintenance‑free
- Installation Type : Fast and easy installation
- Installation Orientation : Vertical (valve box compatible)
- Compatible Media : Gas
- Body Material : High Density Polyethylene (HDPE – PE4710)
- Approvals : AWWA: C901 ASTM D 3350, ASTM D 1598, ASTM D 1599, NSF Listed, PPI Listed

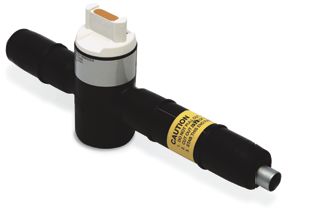

Product Photo
Name
Description
File Size
Date
Size
Gas Shutoff Valves Data Sheet
application/pdf 846.65 KB
10/31/2023
846.65 KB
Name
Description
File Size
Date
Size
Gas Shutoff Valves Data Sheet
application/pdf 846.65 KB
10/31/2023
846.65 KB
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
104141GN
PSVB,MD 90MM SDR11 11-PUP/CM
104141GN
PSVB,MD 90MM SDR11 11-PUP/CM
104143GN
PSVB,MD 160MM SDR11 - 11 PUP/CM
104143GN
PSVB,MD 160MM SDR11 - 11 PUP/CM
104144GN
PSVB,MD 110MM SDR11 11-PUP/CM
104144GN
PSVB,MD 110MM SDR11 11-PUP/CM
41220GN
PSVP PE-CU 1/2CTS-090 X 1/4 XMD/PE4710
41220GN
PSVP PE-CU 1/2CTS-090 X 1/4 XMD/PE4710
45007GN
PSVB,1 1/4X1 1/4IPS SDR10 XMD/PE4710
45007GN
PSVB,1 1/4X1 1/4IPS SDR10 XMD/PE4710
45008GN
PSVB,1 1/4X1 1/4IPS SDR11 XHI/PE4710
45008GN
PSVB,1 1/4X1 1/4IPS SDR11 XHI/PE4710
45010VSXMDGN
PSVS 1 1/4X1CTS XMD
45010VSXMDGN
PSVS 1 1/4X1CTS XMD
45011010GN
PSVB 1 1/4 X 1IPS-SDR11 PE4710/M84 6PUP
45011010GN
PSVB 1 1/4 X 1IPS-SDR11 PE4710/M84 6PUP
45011GN
PSVB,1 1/4X1IPS SDR11 M84/PE4710
45011GN
PSVB,1 1/4X1IPS SDR11 M84/PE4710
45013GN
PSVB,1 1/4X3/4SDR11/ PE4710 XHI 10 PUP
45013GN
PSVB,1 1/4X3/4SDR11/ PE4710 XHI 10 PUP
