Falcon Pulse/MBus
Flexible data acquisition for remote meter reading.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

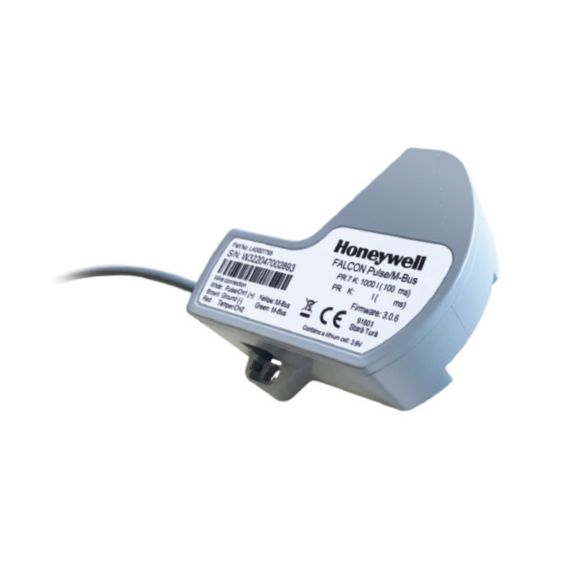

With the FALCON communication module, Honeywell is expanding its portfolio for high-resolution data transmission. The inductive pick-up technology ensures an exact match between the meter reading and the transmitted information.
The FALCON module has a pulse output and also a wired M-Bus. The preset pulse value of 1 liter per pulse can be reparameterized via the M-Bus using the MBConf software from Relay. Depending on the application, the pulse value can be set individually from 1 liter up to 1000 liters.
The FALCON module has a pulse output and also a wired M-Bus. The preset pulse value of 1 liter per pulse can be reparameterized via the M-Bus using the MBConf software from Relay. Depending on the application, the pulse value can be set individually from 1 liter up to 1000 liters.
- Communication module for H4000, C4000 V200/V210 and S150/S220
- M-Bus according to EN13757, OMS compliant
- Pulse output (according to ISO22158) via M-Bus programmable
Specifications
General Overview
- Applications
- Remote reading of water meters via pulse output and M‑Bus
- Product Type
- Combined Pulse and M‑Bus Communication Module
Operating Conditions
- Storage Temperature
- -20 to 70 deg C
- Protection Class
- IP68
- Operating Temperature Range
- -15 to +65 deg C
Interfaces
- Standard Pulse Setting
- 100 litre per pulse; 100 ms pulse length
Sensing
- Sensing Technology
- Inductive sensing with 3 coils, non‑reactive
Power
- Power Supply Mode
- By M-Bus; battery supply in pulse mode or if M-Bus fails
- Battery Type
- 3.6 V lithium
- Battery Lifetime
- 15 years typical (at 25 deg C ambient temperature)
Electrical
- M-Bus Load
- 1 M‑Bus load
Physical
- Colour
- Grey
Cabling
- Cable Type
- LiYY 5 x 0.14
General Overview
- Applications
- Remote reading of water meters via pulse output and M‑Bus
- Product Type
- Combined Pulse and M‑Bus Communication Module
Operating Conditions
- Storage Temperature
- -20 to 70 deg C
- Protection Class
- IP68
- Operating Temperature Range
- -15 to +65 deg C
Interfaces
- Standard Pulse Setting
- 100 litre per pulse; 100 ms pulse length
Sensing
- Sensing Technology
- Inductive sensing with 3 coils, non‑reactive
Power
- Power Supply Mode
- By M-Bus; battery supply in pulse mode or if M-Bus fails
- Battery Type
- 3.6 V lithium
- Battery Lifetime
- 15 years typical (at 25 deg C ambient temperature)
Electrical
- M-Bus Load
- 1 M‑Bus load
Physical
- Colour
- Grey
Cabling
- Cable Type
- LiYY 5 x 0.14
- Applications : Remote reading of water meters via pulse output and M‑Bus
- Storage Temperature : -20 to 70 deg C
- Standard Pulse Setting : 100 litre per pulse; 100 ms pulse length
- Sensing Technology : Inductive sensing with 3 coils, non‑reactive
- Protection Class : IP68
- Product Type : Combined Pulse and M‑Bus Communication Module
- Power Supply Mode : By M-Bus; battery supply in pulse mode or if M-Bus fails
- Operating Temperature Range : -15 to +65 deg C
- M-Bus Load : 1 M‑Bus load
- Colour : Grey
- Cable Type : LiYY 5 x 0.14
- Battery Type : 3.6 V lithium
- Battery Lifetime : 15 years typical (at 25 deg C ambient temperature)
