prepayment solutions
STS/Sigfox

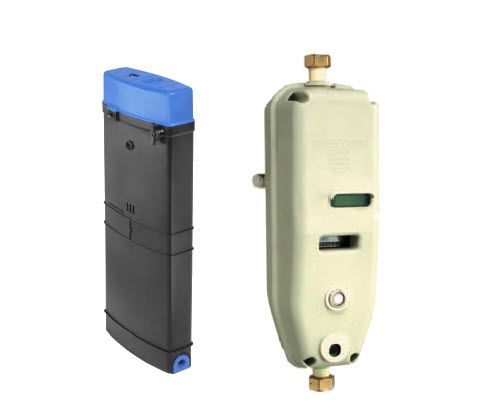

Standard Transfer Specification (STS) pre-paid water meters manufactured using standard cryptography keys.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The STS pre-paid water meters are designed to communicate via secure message protocol with a Point of Sale. Water credit can be purchased from any designated vending system supplier. The meter consists of an intelligent electronic module for the delivering of prepaid water. The module is mounted in either an above-ground - or wall-mount water meter box.
Mounted inside the consumer’s house is a keypad that communicates with the electronic module via radio communications link. This product complies with the STS Association, NRCS and ICASA specifications. Credit can be purchased from any participating STS compliant vending supplier.
The meterbox consists of:
Mounted inside the consumer’s house is a keypad that communicates with the electronic module via radio communications link. This product complies with the STS Association, NRCS and ICASA specifications. Credit can be purchased from any participating STS compliant vending supplier.
The meterbox consists of:
- Maximum admissible pressure: 16 Bar
- A 15mm (or 20mm) Class “C” or Class “D” polymer semi-positive rotary piston water meter.
- UV stabilized polymer protective casing.
- Shut off valve
- A municipal 3- ways ballcock positioned before the meter and consumer 2-way ballcock positioned downstream of the water meter (Available on request).
- Dual key operated locking mechanisms operated by unique keys, and is removable for meter maintenance.
- Reinforced 20mm female threaded outlet connectors
- Electronic module which includes a reed switch, tamper switch, battery and all process components.
Specifications
Safety & Compliance
- Approvals
- SANS 1529-1, SANS 1529-9
General Overview
- Valve Type
- Latching valve + ball valves
- Meter Types
- Prepaid Water Meter
Prepayment (STS)
- Token Life
- ≥10 years
- Prepayment Technology
- Token-based prepaid system
Power
- Power Source
- Battery powered (replaceable)
- Battery Lifetime
- Up to 5 years
Dimensions & Sizes
- Meter Sizes
- 15 mm, 20 mm, 25 mm
Measurement & Metrology
- Meter Class
- Class C
Installation
- Installation Type
- Wall-mounted/above-ground meterbox
Protection
- Ingress Protection
- IP67
Control & Interface
- Display Type
- LCD display
Connection Options
- Connection Type
- BSP threaded polymer connections
Communication
- Communication Method
- Physical token transfer (no wireless mentioned)
Safety & Compliance
- Approvals
- SANS 1529-1, SANS 1529-9
General Overview
- Valve Type
- Latching valve + ball valves
- Meter Types
- Prepaid Water Meter
Prepayment (STS)
- Token Life
- ≥10 years
- Prepayment Technology
- Token-based prepaid system
Power
- Power Source
- Battery powered (replaceable)
- Battery Lifetime
- Up to 5 years
Dimensions & Sizes
- Meter Sizes
- 15 mm, 20 mm, 25 mm
Measurement & Metrology
- Meter Class
- Class C
Installation
- Installation Type
- Wall-mounted/above-ground meterbox
Protection
- Ingress Protection
- IP67
Control & Interface
- Display Type
- LCD display
Connection Options
- Connection Type
- BSP threaded polymer connections
Communication
- Communication Method
- Physical token transfer (no wireless mentioned)
- Approvals : SANS 1529-1, SANS 1529-9
- Valve Type : Latching valve + ball valves
- Token Life : ≥10 years
- Prepayment Technology : Token-based prepaid system
- Power Source : Battery powered (replaceable)
- Meter Types : Prepaid Water Meter
- Meter Sizes : 15 mm, 20 mm, 25 mm
- Meter Class : Class C
- Installation Type : Wall-mounted/above-ground meterbox
- Ingress Protection : IP67
- Display Type : LCD display
- Connection Type : BSP threaded polymer connections
- Communication Method : Physical token transfer (no wireless mentioned)
- Battery Lifetime : Up to 5 years
Brochure
Name
Description
File Size
Date
Size
The Above Ground Meterbox Range (English) - South Africa
application/pdf 632.34 KB
1/30/2024
632.34 KB
STS Pre-paid Water Meter Brochure (English) - South Africa
application/pdf 308.07 KB
1/30/2024
308.07 KB
Prepaid Water System Brochure (English) - South Africa
application/pdf 1.1 MB
1/30/2024
1.1 MB
The Domestic Prepaid Metering System (English) - South Africa
application/pdf 1.23 MB
1/30/2024
1.23 MB
Name
Description
File Size
Date
Size
The Above Ground Meterbox Range (English) - South Africa
application/pdf 632.34 KB
1/30/2024
632.34 KB
STS Pre-paid Water Meter Brochure (English) - South Africa
application/pdf 308.07 KB
1/30/2024
308.07 KB
Prepaid Water System Brochure (English) - South Africa
application/pdf 1.1 MB
1/30/2024
1.1 MB
The Domestic Prepaid Metering System (English) - South Africa
application/pdf 1.23 MB
1/30/2024
1.23 MB
Name
Description
File Size
Date
Size
The Above Ground Meterbox Range (English) - South Africa
632.34 KB
1/30/2024
STS Pre-paid Water Meter Brochure (English) - South Africa
308.07 KB
1/30/2024
Prepaid Water System Brochure (English) - South Africa
1.1 MB
1/30/2024
The Domestic Prepaid Metering System (English) - South Africa
1.23 MB
1/30/2024
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
DW500USC
USC LARGE METER BOX 15MM
DW500USC
USC LARGE METER BOX 15MM
DW507USC
L/MBOX 20MM KSM+WMD+STRAINER
DW507USC
L/MBOX 20MM KSM+WMD+STRAINER
EB0001M
PROBE ASSY + 1M CABLE PSMT
EB0001M
PROBE ASSY + 1M CABLE PSMT
OB109PWC
PWC500 15mm KSM in Surface box
OB109PWC
PWC500 15mm KSM in Surface box
OB209PWC
PWC500 25mm KSM in Large Surface box
OB209PWC
PWC500 25mm KSM in Large Surface box
OB407PWC
PWC500 20mm KSM in Surface box
OB407PWC
PWC500 20mm KSM in Surface box
OB8000
ZONKE STS 15MM KSM
OB8000
ZONKE STS 15MM KSM
OW5770
B950 PREPAID H/H BOX
OW5770
B950 PREPAID H/H BOX
OZ013
TOUCH TOKEN-BLUE
OZ013
TOUCH TOKEN-BLUE
OZ023
TOUCH TOKEN-GREEN
OZ023
TOUCH TOKEN-GREEN
