SM-RI-X

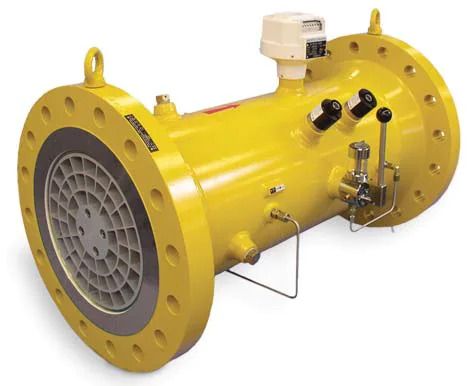

Turbine gas meter DN200 – 600 with extended configuration, also available as special version for High-Temperature application and the measurement of ethylene gas.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The SM-RI-X is serially equipped with a lubrication system for all types and a mechanical index with metal cover. Optionally all meter sizes can be equipped with a cost-saving middle-frequency pulser, realized within the meter index.The SM-RI-X is serially equipped with a lubrication system for all types and a mechanical index with metal cover. Optionally all meter sizes can be equipped with a cost-saving middle-frequency pulser, realized within the meter index.
Specifications
Processing & Performance Metrics
- Accuracy
- Tighter limits available on request
- ±1% from 0.2 Qmax to Qmax
- ±2% from Qmin to 0.2 Qmax
Environmental Conditions
- Temperature Range
- -25 to +70 deg C
- Operating Pressure
- 0 to 100 barg
- Measuring Range
- Up to 1:50 depending on pressure
Measurement & Sensor Related (Measurement Capabilities)
- Repeatability
- High
Standards & Certifications
- Protection Class
- IP67 (MI-2 Index)
- Approvals
- MID, EN12261, PED, ASME, ATEX, IECEx
Electrical Specifications
- Nominal Diameters
- DN 200 to DN 600 (8 to 24 in)
- Flow Rate
- 50 to 25,000 m³/h
Mechanical & Physical Properties
- Meter Sizes
- G650 to G16,000
Network & Connectivity Infrastructure
- Inlet Pipe Length
- ≥ 2 DN
Industries / Applications & Compatibility
- Industries
- Gas Transmission, Distribution, Industrial, Power Plants, Calibration Labs
Software & Interface
- Index Display
- 8-Digit Mechanical Counter (MI-2), Pressure-Less Index Head
I/O Capabilities
- Compact Installation
- Optimized outlet for reduced pressure loss
Material Specifications
- Body Material
- Ductile Iron (GGG-40) or Forged Steel
Applications & Compatibility
- Applications
- Custody Transfer Gas Flow Measurement (Low to High Pressure), Transmission, Distribution, Industrial
Processing & Performance Metrics
- Accuracy
- Tighter limits available on request
- ±1% from 0.2 Qmax to Qmax
- ±2% from Qmin to 0.2 Qmax
Environmental Conditions
- Temperature Range
- -25 to +70 deg C
- Operating Pressure
- 0 to 100 barg
- Measuring Range
- Up to 1:50 depending on pressure
Measurement & Sensor Related (Measurement Capabilities)
- Repeatability
- High
Standards & Certifications
- Protection Class
- IP67 (MI-2 Index)
- Approvals
- MID, EN12261, PED, ASME, ATEX, IECEx
Electrical Specifications
- Nominal Diameters
- DN 200 to DN 600 (8 to 24 in)
- Flow Rate
- 50 to 25,000 m³/h
Mechanical & Physical Properties
- Meter Sizes
- G650 to G16,000
Network & Connectivity Infrastructure
- Inlet Pipe Length
- ≥ 2 DN
Industries / Applications & Compatibility
- Industries
- Gas Transmission, Distribution, Industrial, Power Plants, Calibration Labs
Software & Interface
- Index Display
- 8-Digit Mechanical Counter (MI-2), Pressure-Less Index Head
I/O Capabilities
- Compact Installation
- Optimized outlet for reduced pressure loss
Material Specifications
- Body Material
- Ductile Iron (GGG-40) or Forged Steel
Applications & Compatibility
- Applications
- Custody Transfer Gas Flow Measurement (Low to High Pressure), Transmission, Distribution, Industrial
- Accuracy : Tighter limits available on request|±1% from 0.2 Qmax to Qmax|±2% from Qmin to 0.2 Qmax
- Temperature Range : -25 to +70 deg C
- Repeatability : High
- Protection Class : IP67 (MI-2 Index)
- Operating Pressure : 0 to 100 barg
- Nominal Diameters : DN 200 to DN 600 (8 to 24 in)
- Meter Sizes : G650 to G16,000
- Measuring Range : Up to 1:50 depending on pressure
- Inlet Pipe Length : ≥ 2 DN
- Industries : Gas Transmission, Distribution, Industrial, Power Plants, Calibration Labs
- Index Display : 8-Digit Mechanical Counter (MI-2), Pressure-Less Index Head
- Flow Rate : 50 to 25,000 m³/h
- Compact Installation : Optimized outlet for reduced pressure loss
- Body Material : Ductile Iron (GGG-40) or Forged Steel
- Approvals : MID, EN12261, PED, ASME, ATEX, IECEx
- Applications : Custody Transfer Gas Flow Measurement (Low to High Pressure), Transmission, Distribution, Industrial
