Medium Pressure Regulators up to PN16 (ANSI 150)

HON 270 MK2

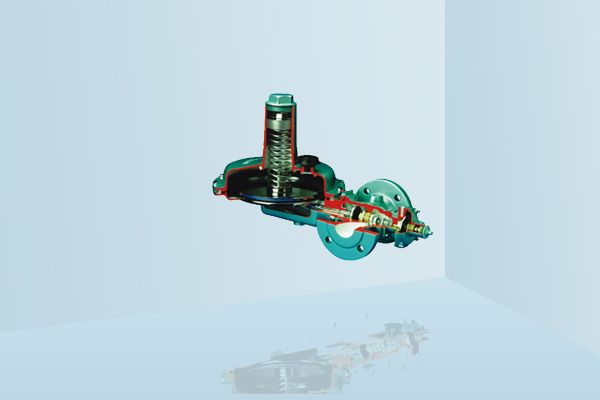

HON 270 MK2 gas pressure regulator with spring loaded measuring unit and reversing lever that offers rapid response to load changes and can be installed in any position. This direct acting regulator is ideal for deployment at offtake stations

Overview
Features and Benefits:
  • Diaphragm casing can be rotated through increments of 45° relative to body
  • Rapid response to load changes
  • Regulator can be installed in any position
  • Can be fitted with an over-pressure cut-off valve (OPCO) or under-/over-pressure (UPCO/OPCO)
  • Cartridge design allows easy removal of diaphragm/valve assembly from body for simple maintenance
  • Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
  • CE registration according to PED
  • Max. inlet pressure pu max: up to 10.3 bar
  • Outlet pressure range Wd: 0.01 to 0.5 bar
  • SSV setting range
    • Wdso 0.035 to 0.6 bar
    • Wdsu 0.01 to 0.03 bar
  • Connection
    • Pipe screw connection 40 mm, 50 mm
    • Flange DN 50
  • Type:
    • P: without internal Safety Relief Valve (SRV)
    • R: with internal Safety Relief Valve (SRV)
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
Brochure
Name
Description
File Size
Date
Size
HON 270MK2 Brochure gas pressur regulator
application/pdf 1.15 MB
11/11/2021
1.15 MB
Name
Description
File Size
Date
Size
HON 270MK2 Brochure gas pressur regulator
application/pdf 1.15 MB
11/11/2021
1.15 MB
Name
Description
File Size
Date
Size
HON 270MK2 Brochure gas pressur regulator
1.15 MB
11/11/2021
Name
Description
File Size
Date
Size
No support documents tagged to this product
An error occurred . Please try after sometime
Category@category|Type@type

Filters

Product Number
Part Number
Description
Leaf Category
Thumbnail
Add to list
BD270BP
SERIES 270P REGULATOR NO INTERNAL RELIEF
BD270BP
SERIES 270P REGULATOR NO INTERNAL RELIEF
BD270BR
SERIES 270R REG WITH INTERNAL RELIEF
BD270BR
SERIES 270R REG WITH INTERNAL RELIEF
BD270HP
SERIES 270H-P REG NO INTERNAL RELIEF
BD270HP
SERIES 270H-P REG NO INTERNAL RELIEF
BD270HR
SERIES 270H-R REG WITH INTERNAL RELIEF
BD270HR
SERIES 270H-R REG WITH INTERNAL RELIEF
HON270BP
SERIES 270P REGULATOR NO INTERNAL RELIEF
HON270BP
SERIES 270P REGULATOR NO INTERNAL RELIEF
HON270BR
SERIES 270R REG WITH INTERNAL RELIEF
HON270BR
SERIES 270R REG WITH INTERNAL RELIEF
HON270HP
SERIES 270H-P REG NO INTERNAL RELIEF
HON270HP
SERIES 270H-P REG NO INTERNAL RELIEF
HON270HR
SERIES 270H-R REG WITH INTERNAL RELIEF
HON270HR
SERIES 270H-R REG WITH INTERNAL RELIEF
