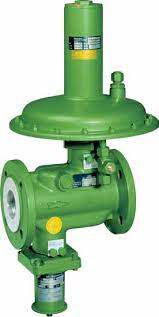

HON 330 gas pressure regulator has the task of keeping
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Applications:
- Direct-acting gas pressure regulator (GPR) (working without auxiliary power) with incorporated SSV for commercial and industrial gas installations as well as local supply systems
- Particularly well-suited for dynamic processes (e.g. gas furnaces, burner circuits, gas engine operations)
- Can also be used as an equipment part for gas consumer facilities pursuant to EC Directive (90/396/EWG)
- As gas pressure regulator with electrical setpoint follower (motorized actuator) and pneumatic setpoint follower
- Can be used for gases according to DVGW worksheet G 260 and neutral non-aggressive gases; other gases upon request
- Design inherently pressure-tight (IS)
- GPR with integrated SSV, optionally SBV for gas leakage quantities as well as variant with safety diaphragm
- Large inlet pressure range
- Installation of different valve seat diameters possible
- Maintenance-friendly due to replaceable functional units (pluggable design)
- SSV optionally function class A or B
- Pressure compensation valve (inner circumference) incorporated in SSV actuator
- Without SSV
- With SSV - manual triggering
- With SSV - electromagnetic remote triggering
- With electrical position display for SSV Closed using inductive proximity initiator and intrinsically safe power circuit
- Regulator system with leakage gas SBV (pd up to 0.5 bar) or safety diaphragm
- With HON 915 breather valve (SSV/RE) or HON 919 switching valve (SSV)
- With noise reduction
Specifications
Applications & Compatibility
- Applications
- Commercial/Industrial Gas Pressure Regulation, Local Supply Stations, Dynamic Regulating Lines (Furnaces, Burners, Engines), Component For Gas Consumption Devices (EC Directive 90/396/EEC), Motorized Actuator/Pneumatic Setpoint Options
Environmental Conditions
- Temperature Range
- -20 to +60 deg C
Software & Interface
- Suitable Gases
- Gases per DVGW worksheet G 260; Neutral, non-aggressive gases; Other gases on request
Processing & Performance Metrics
- Maximum Permissible Pressure
- Up to 16bar
Technical Specifications
- Maximum Inlet Pressure Rating
- Up to 16bar
- Connection Type
- DIN Flange PN 16
Mechanical & Physical Properties
- Lock-up Pressure Zone Class
- SZ 2.5
Standards & Certifications
- Explosion Protection
- Mechanical components not subject to ATEX 95, electronic accessories comply with ATEX
- Approvals
- CE Mark with PED
Material Specifications
- Body Material
- Cast Aluminum Alloy
Applications & Compatibility
- Applications
- Commercial/Industrial Gas Pressure Regulation, Local Supply Stations, Dynamic Regulating Lines (Furnaces, Burners, Engines), Component For Gas Consumption Devices (EC Directive 90/396/EEC), Motorized Actuator/Pneumatic Setpoint Options
Environmental Conditions
- Temperature Range
- -20 to +60 deg C
Software & Interface
- Suitable Gases
- Gases per DVGW worksheet G 260; Neutral, non-aggressive gases; Other gases on request
Processing & Performance Metrics
- Maximum Permissible Pressure
- Up to 16bar
Technical Specifications
- Maximum Inlet Pressure Rating
- Up to 16bar
- Connection Type
- DIN Flange PN 16
Mechanical & Physical Properties
- Lock-up Pressure Zone Class
- SZ 2.5
Standards & Certifications
- Explosion Protection
- Mechanical components not subject to ATEX 95, electronic accessories comply with ATEX
- Approvals
- CE Mark with PED
Material Specifications
- Body Material
- Cast Aluminum Alloy
- Applications : Commercial/Industrial Gas Pressure Regulation, Local Supply Stations, Dynamic Regulating Lines (Furnaces, Burners, Engines), Component For Gas Consumption Devices (EC Directive 90/396/EEC), Motorized Actuator/Pneumatic Setpoint Options
- Temperature Range : -20 to +60 deg C
- Suitable Gases : Gases per DVGW worksheet G 260; Neutral, non-aggressive gases; Other gases on request
- Maximum Permissible Pressure : Up to 16bar
- Maximum Inlet Pressure Rating : Up to 16bar
- Lock-up Pressure Zone Class : SZ 2.5
- Explosion Protection : Mechanical components not subject to ATEX 95, electronic accessories comply with ATEX
- Connection Type : DIN Flange PN 16
- Body Material : Cast Aluminum Alloy
- Approvals : CE Mark with PED
