Medium Pressure Regulators up to PN16 (ANSI 150)

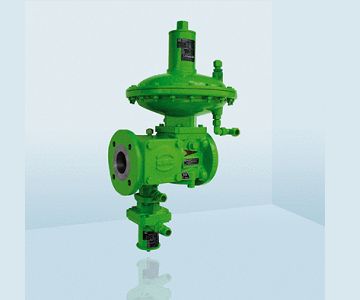

HON 370

HON 370 is a spring loaded, direct acting gas pressure regulator according to DIN EN 334 (operating with auxiliary energy from the inlet pressure range) with incorporated direct-acting SSV according to DIN EN 334/ 14382.

Overview
Features and Benefits:
  • Excellent for dynamic regulating lines (i.e., gas furnaces)
  • Diaphragm assembly with inlet pressure compensation optionally with Safety Relief Valve (SRV) or safety diaphragm
  • Optionally available with Safety Shut-off Valve (SSV) with in-line flow
  • Noise reduction optional
  • Very easy to maintain due to exchangeable functional units (cartridge assembly)
  • Suitable for non-aggressive gases; other gases on enquiry
  • CE registration according to PED
  • Max. admissible pressure PS: 20 bar
  • Max. inlet pressure pu max: up to 20 bar
  • Outlet pressure range: Wd 20 mbar up to 4 bar
  • Class of lock-up pressure zone: SZ 2.5
  • SSV setting range
    • Wdo 25 mbar up to 5.2 bar
    • Wdu 5 mbar up to 400 mbar
  • SRV setting range: Wd 15 up to 90 mbar above Pds
  • Connection: DIN flange PN 16 or Class 150 according to ANSI 16.5, DN 25 thru DN 150
  • Other flange types on enquiry
All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device fulfil the ATEX requirements.
