Medium Pressure Regulators up to PN16 (ANSI 150)

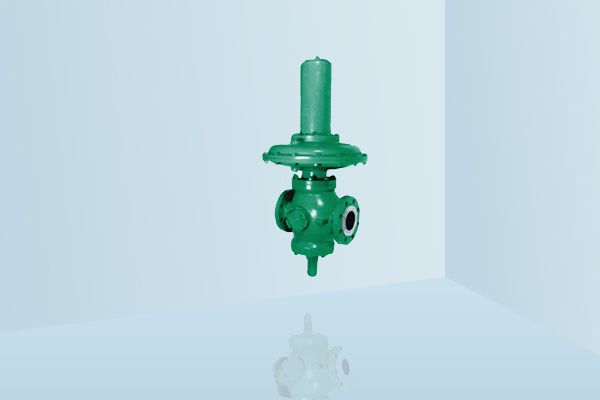

HON 680 MK 1 and MK 2-EVA

HON 680 MK 1 and the HON 680 MK 2-EVA gas pressure regulators with spring loaded measuring unit and double-seat valve for applications involving extremely high flow capacities. The regulators are ideal for deployment at offtake stations

Overview
Features and Benefits:
  • Suitable for use on industrial feeds to burners, heater units, boilers, etc.
  • Fully-balanced, internal double-valve assembly
  • Extremely high flow capacities
  • High regulating accuracy
  • External valve adjustment (MK2 EVA model only)
  • Can be fitted with full- or reduced-size valves
  • Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
  • CE registration according to PED
  • Max. inlet pressure pu max: up to 2 bar
  • Outlet pressure range Wd: 0.015 to 0.21 bar
  • Series 680 MK 1: For all valve seat sizes PS = 7 bar
  • Series 680 MK 2-EVA:
    • DN 50, DN 80 for valve seat diameter= pipe size
    • For DN 80 reduced valve seat PS = 4.5 bar
    • DN 100 for reduced bore for 4.5 bar
  • Pipe sizes DN 50, DN 80, DN 100, DN 150, DN 200
  • Temperature range: 20 to 60 °C
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
