Series 600 Pilot Regulators for Pilot operated Gas Pressure Regulators

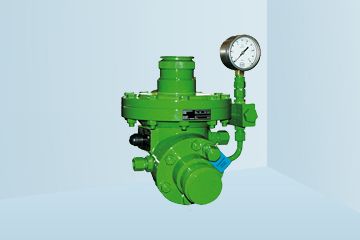

HON 610
HON 610 is a standard pilot for gas pressure regulators according to DIN EN 334. It is available in three variants – type HON 610 for outlet pressure, type HON 610 E for inlet pressure and type HON 610 D for differential pressure
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features and Benefits:
- Load-limiting and control stage in one housing (two-stage)
- Adaptable to various types of gas pressure regulators and regulating lines
- Equipped with loading pressure gauge and upstream fine mesh filter HON 905
- May be equipped with electric remote setpoint adjustment and automatic load limiting stage
- Optionally with vent valve HON 915
- Suitable for non-aggressive gases, other gases on enquiry
- Special version available for oxygen
- CE registration according to PED in combination with HON Gas Pressure Regulators
- According to DIN EN 334, the pilot is an integral component of this device
- Max. admissible pressure PS: 100 bar
- Max. inlet pressure pu max: up to 100 bar
- Outlet pressure range Wd: 0.01 bar up to 3.5 bar
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
HON610
Pilot HON 610 (RS10d)
HON610
Pilot HON 610 (RS10d)
