Series 600 Pilot Regulators for Pilot operated Gas Pressure Regulators

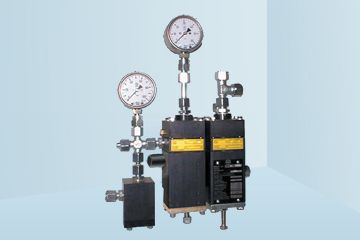

HON 630

HON 630 is a pneumatic pilot for gas pressure regulators with throttling diaphragm HON 402, HON 502, HON 503 and HON 505 according to DIN EN 334. It is used for outlet pressure control.

Overview
Features and Benefits:
  • High regulating accuracy even in case of wide inlet pressure variation
  • Double control stages, single-stage version optionally
  • With inlet pressure and loading pressure gauges and upstream fine-mesh filter HON 905, also available with outlet pressure gauge (optionally)
  • Optionally with vent valve HON 915
  • Optionally with electric remote setpoint adjustment
  • Suitable for non-aggressive gases, other gases on enquiry
  • CE registration according to PED in combination with HON gas pressure regulators
  • According to DIN EN 334, the pilot is an integral component of this device.
  • Max. admissible pressure PS: 100 bar
  • Max. inlet pressure pu max: up to 100 bar
  • Outlet pressure range Wd: 0.3 to 90 bar
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
