Series 600 Pilot Regulators for Pilot operated Gas Pressure Regulators

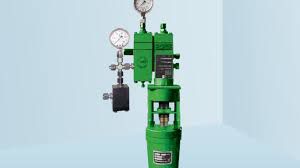

HON 630-FE
HON 630-FE is a pneumatic pilot with electric remote setpoint adjustment for gas pressure regulators HON 402, HON 502 and HON 503 according to DIN EN 334. It is used for outlet pressure control.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features and Benefits:
- Pilot with electric setpoint adjustment for stations with variable outlet pressure
- Setpoint may be adjusted from control room or similar
- Manual setpoint adjustment on electric actuator is possible
- Optionally with vent valve HON 915
- Suitable for non-aggressive gases, other gases on enquiry
- CE registration according to PED in combination with HON Gas Pressure Regulators
- According to DIN EN 334, the pilot is an integral component of this device
- Max. admissible pressure PS: 100 bar
- Max. inlet pressure pu max: up to 100 bar
- Outlet pressure range Wd: 0.3 to 90 bar
- Electric actuator with drive shaft according to DIN/ISO 5210 T1 F10; fitted to control stage
- Details concerning motor and electrical connections on enquiry
