Series 600 Pilot Regulators for Pilot operated Gas Pressure Regulators
HON 638-EP

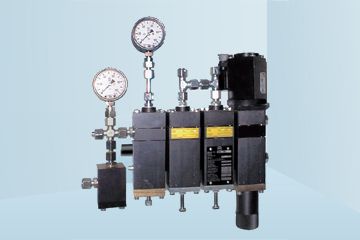

HON 638-EP is a pilot pd min, pd max with electric/pneumatic loading pressure stage for gas pressure regulators with throttling diaphragm HON 402, HON 502, HON 503 and HON 505 according to DIN EN 334.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The pneumatic pressure control stages monitor the preset limit values. As soon as outlet pressure gets close to these limits during operation, the pneumatic pressure control stages take over and keep the pressure constant. The transition from electronic control to pneumatic control is done automatically and is operated smoothly in both directions.
The following operation modes may be realized between the two pressure limits:
Remote setpoint adjustment:
The following operation modes may be realized between the two pressure limits:
Remote setpoint adjustment:
- Adaptation of setpoints due to frequently changing operating conditions
- Integration with process control systems
- Flow control, optimising efficient gas supply
- Gas storage in networks and tanks
- Meter protection by means of actual flow limitation
- Pressure control
- Meter protection by means of actual flow limitation
- According to defined pressure curves throughout a day or week
- To improve regulating accuracy and stability due to electronic PI or PID control
- CE registration according to PED in combination with HON gas pressure regulators
- According to DIN EN 334, the pilot is an integral component of this device
- Maximum admissible pressure PS: 100 bar
- Maximum inlet pressure pu max: up to 100 bar
- Pilot HON 638-EP consists of functional modules on a common base plate:
- 1st stage: automatic load-limiting stage
- 2nd stage: pilot stage controlling the lower outlet pressure limit pd min
- 3rd stage: pilot stage controlling the upper outlet pressure limit pd max
- 4th stage: electro-pneumatic loading pressure stage converting electric signals into pneumatic signals
