Series 600 Pilot Regulators for Pilot operated Gas Pressure Regulators

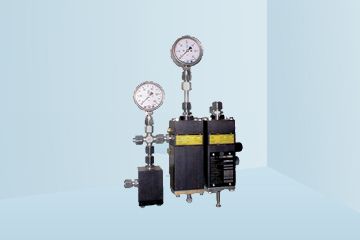

HON 650

HON 650 is a standard-design pneumatic pilot for gas pressure regulators according to DIN EN 334. It is used for outlet pressure control. ​​​​​

Features include:
  • High regulating accuracy even in case of wide inlet pressure variation
  • Double control stages, single-stage version option
  • With inlet-pressure and loading-pressure gauges and upstream fine-mesh filter HON 905, also available with outlet pressure gauge (optionally)
  • Optionally with vent valve HON 915
  • Optionally with electric remote setpoint adjustment
  • Suitable for non-aggressive gases, other gases on enquiry
  • CE registration according to PED in combination with HON gas pressure regulators
  • According to DIN EN 334, the pilot is an integral component of this device
  • Max. admissible pressure PS: 100 bar
  • Max. inlet pressure pu max: up to 100 bar
  • Outlet pressure range Wd: 0.3 bar up to 90 bar
All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device fulfil the ATEX requirements.
