Portable Gauging
Gauging and Sampling for high-pressure Tankers
A solution that makes possible the compulsory gas-tight gauging and sampling operations, at high pressure, while maintaining the intrinsically safe design for explosion safety.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Shuttle tankers and parcel (chemical) tankers operators , facing stringent regulations, must reduce the amount of VOC gas (Volatile Organic Compound) released during loading operations. The threshold of the pressure-relief valves, and the pressure of Inert gas, moves from the standard 0.18 to 0.25 bar to up to 0.7 bar. Specially designed ships with reinforced tanks are built for this purpose.
The challenge is to assure the compulsory gas-tight gauging and sampling operations, at high pressure, while maintaining the intrinsically safe design for explosion safety.
What Is It?
The high pressure gauging and sampling solution comprises 4 components :
The challenge is to assure the compulsory gas-tight gauging and sampling operations, at high pressure, while maintaining the intrinsically safe design for explosion safety.
What Is It?
The high pressure gauging and sampling solution comprises 4 components :
- The Deck Valve: Made of stainless steel with high Molybdenum content and PFTE seals: it ensure easy sampling operations and prevent against water contamination and release of gases.

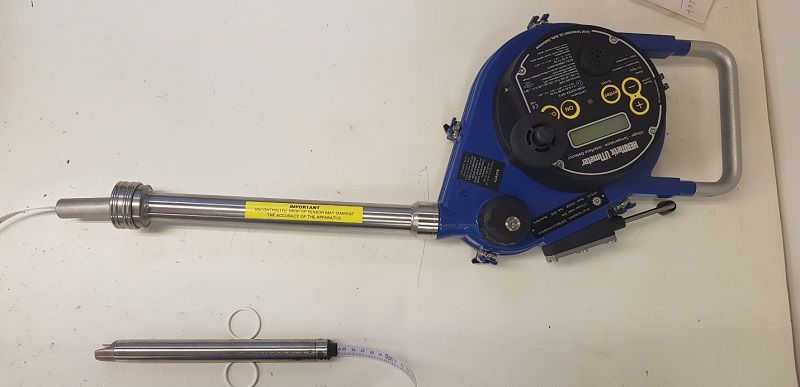

- The UTImeter Gauge: Ullage, Temperature, Interface.This model has been reinforced to maintain gas tightness, while staying lightweight and easy to operate.
- The Sampler: The Hermetic sampler GTX CHEM 0.7 bar is designed for the maximum security of operations while keeping the operations simple and quick.
- The DIP: The HERMetic DIP 2 GT 07bar 30m allows checking on the presence of sediments at the bottom of the tank
- Shuttle and parcel tankers operators compliance with environment and MARPOL regulations
- Gas-tightness has to be maintained during gauging and sampling operations
- Intrinsic safety against explosive atmospheres hazards
- Compatibility with Hermetic Valves
Data Sheet
Name
Description
File Size
Date
Size
Technical Datasheet for Gauging and Sampling Products of High Pressure Tankers
application/pdf 3.7 MB
9/14/2023
3.7 MB
Name
Description
File Size
Date
Size
Technical Datasheet for Gauging and Sampling Products of High Pressure Tankers
application/pdf 3.7 MB
9/14/2023
3.7 MB
Name
Description
File Size
Date
Size
Technical Datasheet for Gauging and Sampling Products of High Pressure Tankers
3.7 MB
9/14/2023
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
TS MHUTI_SS1Q125BA
HERMetic UTImeter Gtex 07bar SS1-Q1 25M
TS MHUTI_SS1Q125BA
HERMetic UTImeter Gtex 07bar SS1-Q1 25M
TS MHUTI_SS1Q225BA
HERMetic UTImeter Gtex 07bar SS1-Q2 25M
TS MHUTI_SS1Q225BA
HERMetic UTImeter Gtex 07bar SS1-Q2 25M
