Portable Gauging & Sampling for Land Applications

HERMetic UTImeter Gtex 2000 - Closed Type - Land Applications

Honeywell’s HERMetic UTImeter Gtex 2000 is a portable gas tight electronic liquid level gauge designed for closed gauging of hydrocarbons and chemicals in storage tanks at terminals and refineries.

Overview

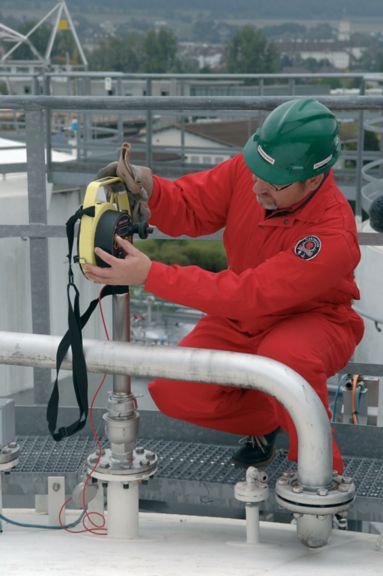

Honeywell Tanksystem’s HERMetic UTImeter Gtex 2000 is a portable gas tight liquid level gauge designed for closed gauging of petroleum and chemical products in terminal and refinery storage tanks. The unit is used for custody transfer, inventory control measurement and free water detection on shore tanks. When connected to a HERMetic vapour control valve fixed on the tank, the HERMetic UTImeter Gtex 2000 avoids any gas release during operation.

What Is It?
​HERMetic UTImeter Gtex enables four measurements in a single operation:
  • Ullage level measurement
  • Temperature verification
  • Oil-water interface level detection
  • Innage, Reference height (manual detection of dip datum plate)
HERMetic UTImeter Gtex 2000 is available with 1-inch sensing probe, FFKM gasket, tape connector for use with corrosive liquids, and fitted with 2-inch load on the sensing probe, recommended for detection of datum plate in storage tanks.

HERMetic UTImeter Gtex 2000 allows easy battery exchange and can be fitted with interchangeable adaptors for connection on 2-inch vapor control valves. The tape cleaning devices, window wiper and tape protection are standard parts.

How Does It Work?
​The sensor of HERMetic UTImeter Gtex 2000 is calibrated once at the factory and does not require subsequent calibration. The temperature probe is an RTD element, with its characteristics stored inside the sensor. The sensor sends true temperature values to the electronic package. Therefore, changing a sensor or a tape does not require a new calibration.

The unit complies with a host of regulations, including:
IMO (Solas 74, MARPOL 73/78)
ISO (4512, 3170, 4268)
API (MPMS Chap 3.1A, MPMS Chap 7, MPMS Chap 8.1, MPMS Chap 17.11)
IP (PMM Part III-1, PMM Part IV)
EC Directive 89/336/EEC (EMC)
EC Directive 94/9/EC (MED)
EC Directive 96/98/EC (ATEX 100a).

It has been approved by:
National authorities (USCG, MSA, GOST-R)
All major classification societies
ATEX, IECEx, Factory Mutual, NEPSI, GOST standard.

What Problems Does It Solve?
​Honeywell’s HERMetic UTImeter Gtex 2000 allows static verification of the liquid level in a tank and continuous temperature reading of the liquid with high repeatability, thanks to the electronic detection principle. The fully modular unit ensures accuracy and stability, while reducing maintenance costs for users.


Brochure
Name
Description
File Size
Date
Size
Technical brochure covering details of portable gauges: HERMetic UTImeter Gtex 2000, Otex and HERMetic Samplers GT, GT Chem, GTX, GTN
application/pdf 2.14 MB
10/31/2023
2.14 MB
Data Sheet
Name
Description
File Size
Date
Size
List of global Honeywell Authorized service stations qualified to service HERMetic range of portable gauging and sampling equipments
application/pdf 151.52 KB
12/7/2023
151.52 KB
Name
Description
File Size
Date
Size
Technical brochure covering details of portable gauges: HERMetic UTImeter Gtex 2000, Otex and HERMetic Samplers GT, GT Chem, GTX, GTN
2.14 MB
10/31/2023
2.14 MB
List of global Honeywell Authorized service stations qualified to service HERMetic range of portable gauging and sampling equipments
151.52 KB
12/7/2023
151.52 KB
Name
Description
File Size
Date
Size
Technical brochure covering details of portable gauges: HERMetic UTImeter Gtex 2000, Otex and HERMetic Samplers GT, GT Chem, GTX, GTN
2.14 MB
10/31/2023
List of global Honeywell Authorized service stations qualified to service HERMetic range of portable gauging and sampling equipments
151.52 KB
12/7/2023
Name
Description
File Size
Date
Size
No support documents tagged to this product
An error occurred . Please try after sometime
Category@category|Type@type

Filters

Product Number
Part Number
Description
Add to list
TS 11289
Carter Gtex 2000 base
TS 12113
Carter Gtex 2000
TS 14502
HERMetic UTImeter Gtex 2000 Chem 25m SS2
TS 14503
HERMetic UTImeter Gtex 2000 Chem 35m SS2
TS 40004
Hex nut M4
